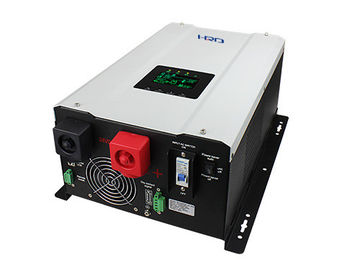

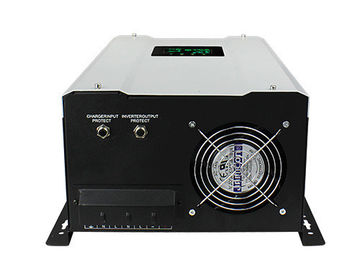

GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control

GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control
GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control

Large Image :  GWS Series Hybrid Solar Inverter 4 - 6kW Wall - Mount MPPT Control Get Best Price

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD OR OEM
Certification: ISO9001, ISO18001, ISO14001
Model Number: GWS1000,GWS1500,GWS2000,GWS3000
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD150-550USD
Packaging Details: Standard for export,500pcs/20ft
Delivery Time: Within 3 weeks
Supply Ability: 10000PCS/ MONTH
Detailed Product Description
Classification: Solar Application: Solar Energy Syetem, Home, Station, Office Ect.
Color: Gray Or Black Efficiency: ≥97%
Solar Charger: MPPT T Type Priority: AC Or Solar Selectable
Warranty: 18months After Shipment Display: Large LCD Display
PF: 1.0
High Light:

electricity inverter

,

power supply inverter

GWS Hybrid charger solar inverter 4000W-6000W

Model No. : GWS4000,GWS5000,GWS6000,(24V/48V)

Classification: Off-grid Solar Inverter

Perfect Application: Solar station, home solar power system,

mobile solar power system ect.

Main Features:
1. GWS Series AC/Solar charging Off grid Hybrid Inverter(MPPT type).
2. Man-machine intelligent design, wall-mount design
3. .LCD+LED display, Enhanced functions setting via LCD.
4. Built-in 40A/60A optional MPPT solar charger controller.
5. LCD shows the solar power capacity.
6. Adjustable AC charging current 5 stages , AC charging also can be closed..
7. AC/DC priority modes select-able
8. Generator restart signal can be added. ( via Dry contact).
9. Stand with3 times peak power. Strong loading capacity.
10. Overload, output short-circuit protection etc.



Model GWS4000W GWS5000W GWS6000W
AC
Input
Nominal Power 4000W 5000W 6000W
Input Voltage Waveform Sinusoidal (utility or generator)
Nominal input Voltage 120/230VAC
Low Line Disconnect 85Vac±4%(Normal) or 80Vac±4% (Wide) for 120V
184Vac±4%(Normal) or 135Vac±4%(Wide) for 230V
High Line Disconnect 136Vac±4%(Normal) or 140Vac±4%(Wide) for 120V
263Vac±4%(Normal) or 263Vac±4%(Wide) for 230V
Max AC input Voltage 120V for Max150Vac, 230V for Max270Vac
Frequency 50Hz:41-54Hz, 60Hz:51-64Hz
AC
output
Output Voltage Waveform Sine wave
Power Factor 0.9~1.0
Nominal Output Voltage (V) LV:120Vac ±10%rms, HV:230Vac ±10%rms
Nominal Output
Frequency (Hz)
50Hz ± 0.3Hz, 60Hz ± 0.3Hz
Solar
charger
Rated Charge Current 60A
PV Input Voltage range 30VDC-55VDC for 24VDC, 60-110VDC for 48V
Max.PV open circuit
array voltage
24V for 55Vdc, 48V for 110Vdc
Charger mode MPPT
PV Low Voltage
Re-connect
PV≥Bat.V+3V
PV Low Voltage
Disconnect
PV≦Bat.V
Efficiency ≥97%
AC
Charger
Nominal Charger
Current
35A/50A/70A(According to the inverter model)
5 stages adjustable charging current
Over charge Protection Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V
battery beeps 0.5s every 1s & fault after 60s
Efficiency Efficiency(Battery Mode) ≥87%
Efficiency (Line Mode) >98%
Battery
Voltage
Nominal DC input Voltage 24/48VDC
Low Battery Alarm 21VDC±0.6VDC for 24VDC
42VDC±1.2VDC for 48VDC
High DC input
Alarm & Fault
32VDC±0.6VDC for 24VDC
64VDC±1.2VDC for 48VDC
  Transfer Time 20ms(max)
System
Parameter
Over-Load Protection 110%<load<150%,beeps 0.5s every 1s,and Fault after 60s off
the output,load>150%,beeps 0.5s every 1s,and Fault after 20s
Output Short Circuit
Protection
Current limit (Fault after 10s)
Surge Rating(10s) 1:3(VA)
Power Saver Load≤25W(Enabled on "P/S auto"Setting of Remote control)
Protections Low battery, over charging, over load, over temp
General
Specifications
Operating Temperature Range 0℃~40℃
Storage Temperature ﹣15℃~60℃
Operation humidity 5% to 95%(non-condensing)
Audible Noise 60dB max
cooling Forced air, variable speed fan
Dimension(L*W*H) 530*400*190mm
Net Weight(kg) 30.8 36 37

Specifications are subject to change without further notice.
