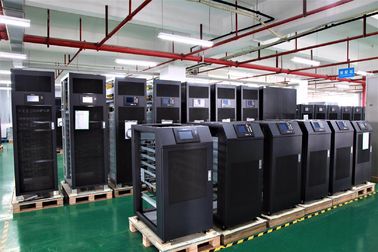

300kVA Modular Uninterruptible Power Supply 7 Inch Touch Screen HQ-M300 Series
Product Details:
| Place of Origin: | SHENZHEN CHINA |
| Brand Name: | HRD/OEM |
| Certification: | CE |
| Model Number: | HOM300,HQM400,HQM500,HQM600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 21000USD/PCS |
| Packaging Details: | Standard for export |
| Delivery Time: | Within 2 weeks |
| Supply Ability: | 100PCS/MONTH |
|
Detail Information |
|||
| Color: | Black | Type: | Most Advanced Online 3 Level Inverter |
|---|---|---|---|
| Control: | Full DSP Control | Power Module: | 50kVA/50kW, 3U Rack |
| Efficiency: | 96.5% In Normal Mode | Input PF: | Above 0.999 |
| THDi: | Less Than 3% For Linear Load, Less Than 5% Non-linear Load | Parallel: | 3 Units, Reaching Up To 900kVA |
| Charger: | ABM Charger, With 3 Stage Charging ,maxmize Battery Lifespan | Interface: | RS232,RS485,USB, SNMP, AS400 And Programmable Dry Contacts |
| Display: | 7 Inch Colorful Touch Screen | Power-walk In: | Yes |
| Protection: | Comprehensive Protections,overload, Short,etc. | Smart-sleep: | Yes, Saving Energy |
| Output PF: | 0.9/1.0 | THDu: | THDu <1%(linear Load),THDu<5%( Non Linear Load), |
| Output Voltage: | 380/400/415VAC,3 X 400 VAC (3Ph+N),380Vac/220Vac±1% | Application: | Telecommunications,Computer,govenment,financial,manufacture |
| Protection: | Short Circuit,Overcurrent,Overvoltage,overload,Unbalanced Loads | Phase: | Three Phase |
| High Light: | smart online ups,double conversion online ups |
||
Product Description
HQ-M series modular UPS, configured with online dual transformation topology, provides reliable power supply for loads under different power grid conditions. With full modular design, the capacity of a single HQ-M rack ranges from 20 to 300 KVA and an expanded capacity up to 1200KVA with maximum 4 systems in parallel can be achieved. Easy capacity expansion and convenient maintenance can minimize customers’ total cost of ownership and greatly improve the usability. It is the ideal selection for medium and large scaled data rooms.
Application Scenarios: data centers, disaster tolerance centers, communication network management centers, hub buildings.
HQ-M Series Modular UPS (20KVA-1200KVA)
Features of HQ-M Series Modular UPS Products
Reliable
- High risk failure points of UPS can be eliminated via battery circuit with designed super-large safety distance.
- Actual service lifespan of batteries can be extended via wide working range regarding voltage and frequency.
- Redundant design can avoid the single failure point and enhance system usability.
- Fans with high level of protection can enhance system reliability.
- Reliability in dust atmosphere has been improved as the electronic devices are hermetically sealed.
User-friendly
- N+X modular design,
- Hot plugging + full front maintenance
- Easy to install with wire inlets/outlets both top and bottom
- High power density design reduces floor space
- The multi-rack parallel allows shared battery pack which brings flexibility use on site
- Networked communications provides facilitate access to Internet of Things
- Completed module supports various application
- The fieldbus is supported, which provides facilitate intervence in the industrial field
- Lead-acid battery as standard configuration for backup, with lithium iron battery compatible
Energy-saving
- High efficiency up to 96% with load range from 25% to 100%
- ECO mode ensures the best efficiency under a good power grid condition
- Electronic load function reduces energy consumption on site and during aging process
- Intelligent module sleep mode allows energy saving in complete load range
Environmental-friendly
- Input power factor 0.99
- THDi<3% @full load；THDi<5% @half load；low harmonic current in full load guarantees small pollution of power grid.
- Special designed air exhaust effectively reduces the noise.
Technical Specifications of HQ-M Series Modular UPS
| Model | HQ-M90 | HQ-M180 | HQ-M300 |
| Max. number of power modules for single rack | 3 | 6 | 10 |
| Optional power modules (KVA) | 15/20/25/30 | ||
| Number of racks in parallel | Max. 4 racks connected in parallel | ||
| Mains AC input | |||
| Input wiring | 3 phase + N wire + ground wire | ||
| Rated voltage | 380/400/415Vac | ||
| Rated frequency | 50/60Hz | ||
| Power factor | >0.99 | ||
| Harmonic distortion of input current | THDi＜3% for linear load；THDi＜5% for nonlinear load | ||
| Voltage range | 208-480Vac | ||
| Frequency range | 40-70HZ | ||
| Bypass input | |||
| Voltage | Rated voltage: 380/400/415Vac; voltage range in default: -20%～+15% (settable) | ||
| Frequency | Rated frequency: 50/60Hz; frequency range: settable | ||
| Overload capacity | 110% overload for long-time operating; 1000% overload for 100 milliseconds | ||
| Battery | |||
| Battery type | Standard configuration: lead-acid batteries; also compatible with lithium iron batteries | ||
| Battery voltage | 360-480Vdc (The number of batteries are settable from 30-40; 36 batteries in default) | ||
| Charging power | 15% power supply module power | ||
| Charging voltage accuracy | ±1.0% | ||
| Temperature compensation | 3mV/℃/cell in default; settable from 0 to 5 mV/℃/cell, or forbidden | ||
| Ripple voltage | ≤1.414％ | ||
| Ripple current effective value | ≤5% | ||
| Inverter output | |||
| Output power factor | 0.9/1.0 | ||
| Output voltage | 380V/400V/415V(line voltage) | ||
| Voltage accuracy | ＜±1.0%@steady；＜±5.0%@transient | ||
| Output frequency | 50/60Hz | ||
| Frequency accuracy | ±0.1% | ||
| Frequency tracking range | ±3Hz | ||
| Total harmonic voltage distortion | THDu≤2%(100% linear load), THDu≤4%(100% nonlinear load) | ||
| Three-phase phase accuracy | 120°±0.5° | ||
| Peak ratio | 3:1 | ||
| Overload capacity | Time to invert to bypass circuit: 110% overload 60 minutes; 125% overload 10 minutes; 150% overload 1 minute; over 150% overload 200 milliseconds | ||
| System | |||
| System efficiency | Up to 96%@dual switching mode; up to 99%@ECO mode | ||
| Displayer | LCN + LED + control panel | ||
| Noise (1 meter right ahead) | <55dB | ||
| Standards applicable | Safety Standard: IEC52040-1-1; electromagnetic compatibility: IEC62040-2; Design and testing: IEC62040-3 | ||
| IP grade | IP20 | ||
| Feeder protection | Standard configuration: disconnecting switch; optional: fuse | ||
| Communication function |
RS232/ RS485/ Modbus/SNMP/programmable dry contact
|
||
| Optional components | SNMP, extensible dry contact card, dust screen, lightning protection module, LBS wires, earthquake proof component, temperature and humidity sensor | ||
| Environment | |||
| Operating temperature | 0～40 ℃ | ||
| Storage temperature | -40℃～70℃ | ||
| Relative humidity | 0～95% (no condensation) | ||
| Altitude | 0-1000 meters with no power derating; above 1000 meters, derating by 1% for each 100-meter increase. | ||
| Mechanical Properties | |||
| System dimension W*D*H (mm) | 600*995*1200 | 600*995*1600 | 600*995*2000 |
| System weight (kg) | 210 | 360 | 595 |
| Color | Black is the default color, with other colors available | ||
Module Parameters
| Module Model | CM10 | CM15 | CM20 | CM25 | CM30 | CMS-STS |
| Mechanical property | 10kVA power module | 15kVA power module | 20kVA power module | 25kVA power module | 30kVA power module | Bypass circuit module |
| Mechanical dimension(W*D*H) | 440*660*88mm | 440*660*88mm | 440*660*88mm | 440*660*88mm | 440*660*88mm | 440*575*130mm |
| Net weight | 26.5kg | 26.5kg | 26.5kg | 31.5kg | 36.5kg | 23kg |
| Color | Black is the default color, with other colors available | |||||
| IP grade | IP20 | |||||
* The above specifications are only for reference and subject to change without prior notice, the specific kind shall prevail.
