Green 3 Phase Online UPS 10KVA To 80KVA , Double Conversion UPS
Product Details:
| Place of Origin: | Shenzhen Guangdong |
| Brand Name: | HRD/OEM/ODM |
| Certification: | CE, ISO9001:2008 |
| Model Number: | PW3310,PW3320,PW3330,PW3340,PW3340,PW3360,PW3380 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | 1900USD-7800USD |
| Packaging Details: | Wooden case with pallet |
| Delivery Time: | 3 weeks after down payment |
| Payment Terms: | TT 30% advance, balance before shipment |
| Supply Ability: | 500pcs/ month |
| warranty: | 2-3years after shipment |
|
Detail Information |
|||
| Product Name: | Three Phase Ups | THDi: | Less 3% |
|---|---|---|---|
| Frequency: | 40-70Hz | Display: | Touch Screen LCD+LED |
| Insulating Resistance: | 50- 60dB | IP Class: | IP20 |
| High Light: | three phase ups,online ups system,double conversion 3 phase online ups |
||
Product Description

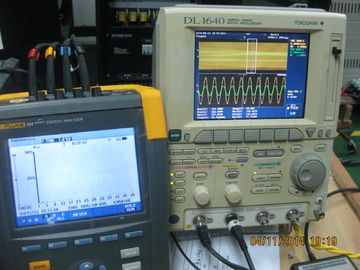

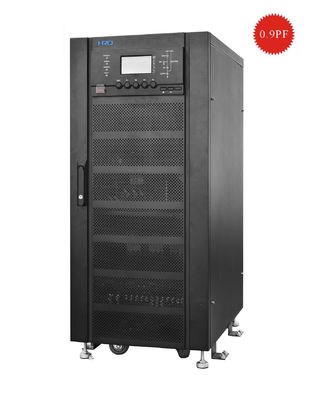

Green 3 Phase Online UPS 10KVA To 80KVA , Double Conversion UPS
POWERWELL series Online HF UPS 3/3phase 10-80kva,380/400/415Vac
(10-40kva,200/208/220Vac 3-3phase , transformerless available)
Powerwell series 3 phase 10-80kva is a high end uninterruptible power supply, which has adopted the world leading electrical and electronic technology to increase performance and super high reliability(MTBT>200,000h).3nos high speed DSPs with completed digital control fully ensure highest quality of power supply. Being kin to 1.0 input power factor and less than 2% THDi lead this UPS green and energy saving. It also offers humanization design: full front access of service ability, user- friendly touch screen.
Perfect Applications:
Internet Servor ,Middle Data Center, Medium-scale network system / computing center, bank and securities, business server group, Medium-scale office automation, precision equipment, etc.
QUICK DETAILS:
DSP control and Excellent electrical properties
High input power factor, green and energy-saving
Output PF0.9, strong load ability
IGBT rectifier and inverter
Similar modular design,
Full frontal components access
ABM battery managment
Touch screen 5 inch
Detail Features: complete digital control technology
Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.
Excellent electrical properties
True online double conversion struction offers the safe and effective power protection for various loads, with strong output load capacity
High input power factor, green and energy-saving
Input with PFC and input PF of the whole UPS up to 0.99
Dual AC input source supportable
Allowable AC and bypass separate input ac source
Strong environmental adaptability
Wide input voltage and frequency range, adaptation to all kinds of power grid
and geographical environment
Comprehensive protection measures
Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS system
IGBT and SCR adopt the advanced EUPEC power module;
The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown,VCE protection)highly improves the reliability and safety of inverter.
Similar modular design
Each phase main board are designed like rack for easy assembling and maintenance
Inbuilt battery pack plug-in design for easy use
Intelligent battery management (ABM)
Adopting the intelligent battery management, extending battery lifespan extremely
Intelligent interval three-stage charging process( constant current, constant voltage, float charging and charger shut off, when battery voltage decrease to a lower level, charger restarts to work)
Automatic temperature compensation,( -0.11% per °C ), to extremely extend battery life by 30% and minimize the maintaining work;
Online detecting battery status
The max battery charging current can set by end users according to the battery features, to avoid any damage caused by the big charging current;
Back up time displayed on the LCD screen
Periodic self-test battery, detecting the battery problems timely
With battery inverse connection, over voltage / current protection, to protect the battery
Cold start and AC start Function
Directly start the UPS through battery or start UPS through Mains only.
Superior network monitoring capabilities
Communication port (RS232, RS485, dry contact and so on) connecting with computer,SNMP card optional,
Easy-maintenance design
a) Adopts the full front maintenance design, reducing the restrictions
on the installation space, and saving the space of computing center
b)Modular design class, convenient and easy site maintenance
c) With manual maintain bypass
d)Battery replacement without disrupting the UPS running
e) Historical records search function, events up to1,000 items
Friendly interface with Large LCD with multi language display(7 languages)
Large LCD display and LED status indication; Abundant information display of UPS
English, Spanish, Portugese, Russion
Technical Specifications:
|
Model |
PW3310 |
PW3315 |
PW3320 |
PW3330 |
PW3340 |
PW3360 |
PW3380 |
|
Rating Power |
10Kva/9Kw |
15Kva/13.5Kw |
20Kva/18Kw |
30Kva/27Kw |
40Kva/36Kw |
60Kva/54Kw |
80Kva/72Kw |
|
AC Input |
|||||||
|
Rated voltage |
190/208/220Vac Or 380/400/415Vac(Line-Line) |
||||||
|
Input connection |
Three phase four wires |
||||||
|
Power factor |
Above 0.99 |
||||||
|
THDi |
Less 3% |
||||||
|
Voltage range |
150-270Vac or 280-480Vac(Line voltage) |
||||||
|
Frequency |
40-70Hz |
||||||
|
Bypass |
150-270Vac or 280-480Vac(Line-Line)+/- 15% |
||||||
|
Output |
|||||||
|
Power factor |
0.9 (lag) |
||||||
|
voltage precision |
190/208/220Vac Or 380/400/415Vac±0.5% |
||||||
|
Dynamical voltage transient |
Less 5% ( 0～100% load step) |
||||||
|
THDU |
THD less 0.6%( linear load ),3%(non-linear load) |
||||||
|
Frequency tracking range |
50/60Hz±3Hz |
||||||
|
Output Frequency precision |
±0.05%(Battery mode) , ±3hz(Line mode) |
||||||
|
phase displacement |
120±0.5°(Balance or imbalance load ) |
||||||
|
Frequency tracking rate |
Less 1Hz/s |
||||||
|
Overload capability |
105% long time operation;105%<Load<125%,10mins;125%<Load<150% 1 minute |
||||||
|
Above 150%, transfer to bypass after 200ms |
|||||||
|
Bypass overload |
Below125% long time operation 125%<Load<150%,10mins;above 150% 1S |
||||||
|
System |
|||||||
|
System efficiency |
Above 92%(Line and battery mode);98%(ECO) mode |
||||||
|
Display |
Touch screen LCD+LED |
||||||
|
EMC |
IEC62040-2 |
||||||
|
IEC61000-4-2 (ESD) |
|||||||
|
IEC61000-4-3 (RS) |
|||||||
|
IEC6100-4-4 (EFT) |
|||||||
|
IEC6100-4-5 (Surge) |
|||||||
|
Noise (1m) |
50- 60dB |
||||||
|
Insulating resistance |
Above 2M (500VDC) |
||||||
|
Insulating intensity |
(input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min |
||||||
|
Surge protection |
Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA |
||||||
|
IP class |
IP20 |
||||||
|
Battery configuration |
|||||||
|
Installation(dc) |
+192/216/240Vdc ,-192/216/240Vdc |
||||||
|
Battery type |
Free Maintenance Lead Acid (Gel battery or Ni-Cd) |
||||||
|
Long run |
Battery to be connected external |
||||||
|
Inbuilt battery |
36pcs *7ah |
36pcs *7ah |
36pcs *9ah |
72PCS*7ah |
72pcs*9ah |
******* |
|
|
Connection |
Bottom cable connection in front |
||||||
|
Charger |
20% Power capacity(Adjustable) |
||||||
|
Physical |
|||||||
|
Unit Dimension (Long-run) |
390*850*977MM (W*D*H) |
500×717×1150 MM (W*D*H) |
720×900×1450 MM (W*D*H) |
||||
|
Unit Dimension ( Inbuilt batt.) |
390*850*977MM (W*D*H) |
500×717×1150 (W*D*H) |
500×717×1550 (W*D*H) |
||||
|
Weight (KG) (Long -run) |
110/130 |
130/150 |
152/172 |
160/190 |
160/190 |
240/280 |
260/300 |
|
Weight (KG) (Inbuilt Batt.) |
182/202 |
202/222 |
216/236 |
331/361 |
367/397 |
240/280 |
260/300 |
|
10kva and 15kva:inbuilt 36pcs 7ah 20kva:inbuilt 36pcs 9ah |
(72pcs 7ah) |
(72pcs 9ah) |
|||||
Note:For 110/120/127Vac,10-40kva avaiable.
