Powerwell (America) X series Online HF UPS 10-30kVA 208/220Vac

Powerwell (America) X series Online HF UPS 10-30kVA  208/220Vac supplier Powerwell (America) X series Online HF UPS 10-30kVA  208/220Vac supplier Powerwell (America) X series Online HF UPS 10-30kVA  208/220Vac supplier Powerwell (America) X series Online HF UPS 10-30kVA  208/220Vac supplier Powerwell (America) X series Online HF UPS 10-30kVA  208/220Vac supplier

Large Image :  Powerwell (America) X series Online HF UPS 10-30kVA 208/220Vac

Product Details:

Place of Origin:Shenzhen China
Brand Name:HRD/ODM/ODM
Certification:CE, ISO9001
Model Number:PW3310,PW3320,,,PW33120

Payment & Shipping Terms:

Minimum Order Quantity:5PCS
Price:2050USD-11000USD/PCS
Packaging Details:1PCS/CTN
Delivery Time:4weeks after down payment
Payment Terms:TT or LC
Supply Ability:1000PCS/MONTH
Warranty:3 years after shipment
Detailed Product Description

POWERWELL series Online HF UPS 3/3phase 10-30kVA, 208/220Vac,Line to Line

(10-80kva, 200/208/220Vac 3-3phase, transformerless available)

Powerwell series 3 phase  UPS  is a high end uninterruptible power supply, which has adopted the world leading electrical and electronic technology to increase performance and  super high reliability(MTBT>200,000h). 3nos high speed DSPs with completed digital control fully ensure highest quality of power supply and UPS reliability. Being kin to 1.0 input power factor and less than 2% THDi lead this UPS green and energy saved. It also offers humanization design: full front access of service ability, user- friendly touch screen.

Perfect Applications:

Internet Service, Middle Data Center, Medium-scale network system / computing center, bank and securities, business server group, Medium-scale office automation, precision equipment, etc.

Features: complete digital control technology

Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.

Excellent electrical properties

True online double conversion offers the safe and effective power protection for various loads, with strong output load capacity

High input power factor, green and energy-saving

Input with PFC and input PF of the whole UPS up to 0.99, THDi less than 2%

Dual AC input source supportable

Supportable AC and bypass separate input AC source

Strong environmental adaptability

Wide input voltage and frequency range, adaptation to all kinds of power grid and almost any kinds of generator

Comprehensive protection measures

Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS system;

IGBT and SCR adopt the advanced EUPEC power module;

The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown, VCE protection) highly improves the reliability and safety of inverter.

Similar modular design

Each phase main board are designed like rack for easy assembling and maintenance

Inbuilt battery pack plug-in design for easy use

Intelligent battery management (ABM)

Adopting the intelligent battery management, extending battery lifespan extremely;

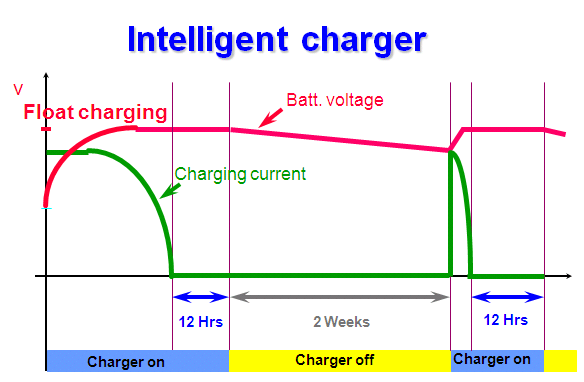

Intelligent interval  three-stage charging process( constant current, constant voltage, float charging and charger shut off, when battery voltage decrease to a lower level, charger restarts to work);

Automatic temperature compensation,( -0.11% per °C ), to extremely extend battery life by 30% and minimize the maintaining work;

Powerwell (America) X series Online HF UPS 10-30kVA  208/220Vac



Online detecting battery status

The max battery charging current can set by end users according to the battery features, to avoid any damage caused by the big charging current;

Back up time displayed on the LCD screen

Periodic self-test battery, detecting the battery problems timely

With battery inverse connection, over voltage / current protection, to protect the battery

Cold start and AC start Function

Directly start the UPS through battery or start UPS through Mains only.

Superior network monitoring capabilities

Communication port (RS232, RS485, dry contact and so on) connecting with computer, SNMP card optional,

Easy-maintenance design (MMTM<0.5h)

a) Adopts the full front maintenance design, reducing the restrictions on the installation space, and saving the space of computing center

b) Modular design class, convenient and easy site maintenance

c) With manual maintain bypass

d) Battery replacement without disrupting the UPS running

e) Historical records classified with search function, events up to1,000 items

Advanced parallel technology:

With digital control technology for cycle current control, parallel system with very high reliable and up to 6units, and sharing common battery;

Friendly interface with Large LCD



Technical Specifications:



Model PWA3310XL PWA3310XS PWA3320XL PWA3320XS PWA3330XL PWA3330XS
Mains Input
Rated Input Voltage 208/220VAC (Line-Line),3 Phases + Neutral + Ground
Rated Frequency 50/60Hz
Input Voltage Range 187~260Vac (Line-Line),full load;
125V~187Vac (Line-Line),load decreases linearly according to the min phase voltage
167~260Vac (Line-Line),full load;
125V~167Vac (Line-Line),load decreases linearly according to the min phase voltage
Input Frequency Range 40Hz~70Hz
Input Power Factor >0.99
Input Current THDi <5% (linear load) <4% (linear load)
Bypass Input
Rated Bypass Voltage 208/220VAC (Line-Line)
Rated Frequency 50/60Hz
Bypass Voltage Range Selectable, default -20%~+15%;
Upper limit: +10%, +15%, +20%, +25%;
Lower limit: -10%, -15%, -20%, -30%, -40%
Bypass Frequency Range Selectable, ±1Hz, ±3Hz, ±5Hz
Bypass Overload 125% Long term operation;
125%~130% for 10min;
130%~150% for 1min;
110% Long term operation;
110%~125% for 1min;
125%~150% for 30s;
Output
Rated Inverter Voltage 208/220VAC (Line-Line)
Rated Frequency 50/60Hz
Output Power Factor 1 0.9
Voltage precision ±1.5%(0-100% linear load)
Transient Response <5% for step load (20% - 100% -20%)
Transient recovery < 30ms for step load (20% - 100% -20%)
Output Voltage THDu <1.5% (linear load);
<5% (non-linear load)
according to IEC/EN62040-3
Inverter Overload <110%, 10min;
110%~125%,1min;
125%~150%,30s;
>150% , 200ms
<110%, 60min;
110%~125%,10min;
125%~150%,1min;
Frequency Regulation 50/60Hz±0.1%
Synchronized Range Settable, ±0.5Hz ~ ±5Hz, default ±3Hz
Synchronized Slew Rate Settable, 0.5Hz/S ~ 3Hz/s, default 0.5Hz/s
Battery And Charger
Battery Rate Voltage ±120VDC
Charger Power max=20% System Power
Efficiency
Normal Operation 93%max 94%max
Battery Operation 92.5%max 93%max
System
Display LED + LCD
Interface Standard: RS232, RS485
Option: SNMP, Dry Contact, Parallel kit,Battery cold start
Environmental
Operation Temperature 0 ~ 40 ℃
Storage Temperature -40 ~ 70 ℃
Relative Humidity 0 ~ 95% (Non condensing)
Noise (1 meter) 58dB @ 100% load, 52dB @ 45% load 70dB @ 100% load, 62dB @ 45% load
Physical data
Dimension
(W*D*H,mm)
250*660*530 250*840*715 250*950*770 500*840*1400 250*950*770 500*840*1400
Weigh(Kg) 31 51.5
(without battery)
64 140
(without battery)
64 140
(without battery)
