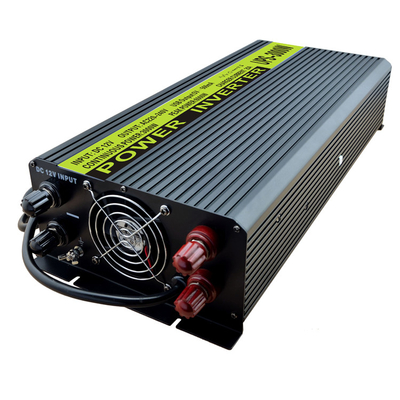

THC Series Power Inverter 500W - 3000W For Home Application

THC Series Power Inverter 500W - 3000W For Home Application

Product Details:

Place of Origin: China
Brand Name: HRD
Certification: CE
Model Number: THC 500,800,1000,1200,1500,2000,3000

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: 50-200USD/PCS;
Get Best Price Contact Now

Detail Information

Applications: Camera, Fan, Hair Dryer, Electric Light, Electric Kettle, Electric Shaver, TV Set, CD Player, Mobile Phone, Notebook, Portable Device, In-vehicle And Etc. Output Voltage: 220VAC±5%,220~230V
Input Voltage: 12V,12V/24V/48V Output Waveform: Modified Sine Wave
Protection: Complete Protection Design Topology: Transformerless
Display: LED Charger: 12-20A
High Light:

500W 3000W Home Power Inverter

,

3000W Home Power Inverter

,

THC Series POWER INVERTER

Product Description

THC Series POWER INVERTE 500W-3000W For Home Application



THC Series Power Inverter 150-3000VA with  charger



THC Series Power Inverter 500W - 3000W For Home Application 0

The THC inverter is a combination of an inverter, battery charger and transfer switch into one complete system. When AC power is available, the inverter recharges the batteries. It also allows any surplus AC power to pass through and power downstream AC loads, such as a television set or microwave oven. When AC power is disconnected, the unit inverts DC battery power into AC electricity.



Features:

●Have charger can charge for battery, constant voltage and stable output, strong impact resistance, under 50℃ at full load;

●Protections: low-voltage, over voltage, over load, high temperature, earth leakage;

●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference;

●Advanced automatic constant circuit, prolong battery life;

●Perfect protection against battery under voltage, overload, short-circuit;

●Microprocessor control guarantees high reliability;

●Can work with inductive load such as air conditioner, motor door and so on;

●Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter;

●With 100% full power, efficiency reaching up to 90%;

●USB charging port +5VDC, 500mA;

●Isolated output, soft start;

●Battery low voltage alarm;

●Cooling fins and load controlled fan.



Applications:

Computer, fan, electric light, TV set, hair dryer, washing machine, rice cooker, induction cooker, microwave oven, refrigerator, in-vehicle, mobile office, travel, camping and emergency.



Specifications:

Model THCA500 THCB500 THCC500
Input Voltage DC 12V DC 24V DC 48V
Working Voltage DC 9.5V-15.5V DC 20-30VDC DC 40-60VDC
Input Current 41.7A 20.8A 10.4A
Conversion Efficiency >90%
Continuous Power 500W
Peak Power 1000W
Output Voltage AC110-120V/220-240V
Output Current 4.6A/2.3A
Output Frequency 50Hz-60Hz
Charging current 10A
Wave Form Modified Sine Wave
Thermal Protection ≥70℃
Operating Temperature 0℃~40℃
Cooling By Intelligent Fan
Under Voltage 9.5±1V 20±1V 40±1V
Over Voltage 15.5±1V 30±1V 60±1V
Protections Undervoltage: LED red light, buzzer alarm, restart recovery
Overvoltage: LED red light, restart recovery
Overload,high temperature: LED red light, restart recovery
Reverse connect: Blown fuse
Net Weight 1600g
Gross Weight 1920g
Size 250*130*65mm
Carton 625*410*320mm 10Pieces/Carton



Model THCA1000 THCB1000 THCC1000
Input Voltage DC 12V DC 24V DC 48V
Working Voltage DC 9.5V-15.5V DC 20-30VDC DC 40-60VDC
Input Current 83.3A 41.7A 20.8A
Conversion Efficiency >90%
Continuous Power 1000W
Peak Power 2000W
Output Voltage AC110-120V/220-240V
Output Current 9.1A/4.5A
Output Frequency 50Hz-60Hz
Charging current 12A
Wave Form Modified Sine Wave
Thermal Protection ≥70℃
Operating Temperature 0℃~40℃
Cooling By Intelligent Fan
Under Voltage 9.5±1V 20±1V 40±1V
Over Voltage 15.5±1V 30±1V 60±1V
Protections Undervoltage: LED red light, buzzer alarm, restart recovery
Overvoltage: LED red light, restart recovery
Overload,high temperature: LED red light, restart recovery
Reverse connect: Blown fuse
Net Weight 2400g
Gross Weight 2800g
Size 327*131*65mm
Carton 625*410*320mm 10Pieces/Carton



Model THCA1500 THCB1500 THCC1500
Input Voltage DC 12V DC 24V DC 48V
Working Voltage DC 9.5V-15.5V DC 20-30VDC DC 40-60VDC
Input Current 125A 62.5A 31.25A
Conversion Efficiency >90%
Continuous Power 1500W
Peak Power 3000W
Output Voltage AC110-120V/220-240V
Output Current 13.64A/6.82A
Output Frequency 50Hz-60Hz
Charging current 15A
Wave Form Modified Sine Wave
Thermal Protection ≥70℃
Operating Temperature 0℃~40℃
Cooling By Intelligent Fan
Under Voltage 9.5±1V 20±1V 40±1V
Over Voltage 15.5±1V 30±1V 60±1V
Protections Undervoltage: LED red light, buzzer alarm, restart recovery
Overvoltage: LED red light, restart recovery
Overload,high temperature: LED red light, restart recovery
Reverse connect: Blown fuse
Net Weight 2600g
Gross Weight 3000g
Size 357*131*65mm
Carton 625*410*320mm 10Pieces/Carton



Model THCA2000 THCB2000 THCC2000
Input Voltage DC 12V DC 24V DC 48V
Working Voltage DC 9.5V-15.5V DC 20-30VDC DC 40-60VDC
Input Current 166.67A 83.33A 41.67A
Conversion Efficiency >90%
Continuous Power 2000W
Peak Power 4000W
Output Voltage AC110-120V/220-240V
Output Current 18.18A/9.1A
Output Frequency 50Hz-60Hz
Charging current 20A
Wave Form Modified Sine Wave
Thermal Protection ≥70℃
Operating Temperature 0℃~40℃
Cooling By Intelligent Fan
Under Voltage 9.5±1V 20±1V 40±1V
Over Voltage 15.5±1V 30±1V 60±1V
Protections Undervoltage: LED red light, buzzer alarm, restart recovery
Overvoltage: LED red light, restart recovery
Overload,high temperature: LED red light, restart recovery
Reverse connect: Blown fuse
Net Weight 5500g
Gross Weight 6400g
Size 423*200*100mm
Carton 510*485*550mm 4Pieces/Carton



Model THCA3000 THCB3000 THCC3000
Input Voltage DC 12V DC 24V DC 48V
Working Voltage DC 9.5V-15.5V DC 20-30VDC DC 40-60VDC
Input Current 250A 125A 62.5A
Conversion Efficiency >90%
Continuous Power 3000W
Peak Power 6000W
Output Voltage AC110-120V/220-240V
Output Current 27.27A/13.64A
Output Frequency 50Hz-60Hz
Charging current 20A
Wave Form Modified Sine Wave
Thermal Protection ≥70℃
Operating Temperature 0℃~40℃
Cooling By Intelligent Fan
Under Voltage 9.5±1V 20±1V 40±1V
Over Voltage 15.5±1V 30±1V 60±1V
Protections Undervoltage: LED red light, buzzer alarm, restart recovery
Overvoltage: LED red light, restart recovery
Overload,high temperature: LED red light, restart recovery
Reverse connect: Blown fuse
Net Weight 6200g
Gross Weight 7100g
Size 490*200*100mm
Carton 510*485*550mm 4Pieces/Carton
