DC Start 120 / 220Vac Online High Frequency Ups With Surge Protection

DC Start 120 / 220Vac Online High Frequency Ups With Surge Protection supplier DC Start 120 / 220Vac Online High Frequency Ups With Surge Protection supplier DC Start 120 / 220Vac Online High Frequency Ups With Surge Protection supplier

Large Image :  DC Start 120 / 220Vac Online High Frequency Ups With Surge Protection

Product Details:

Place of Origin:Shenzhen China
Brand Name:OEM/ODM
Certification:ISO9001-2008,ISO14001,CE,TUV
Model Number:ET Dual 2kva /3kva

Payment & Shipping Terms:

Minimum Order Quantity:50pcs
Price:400usd/pcs
Packaging Details:1pcs/1ctn
Delivery Time:within 3 weeks after down payment
Payment Terms:TT or LC at sight
Supply Ability:3000pcs/ month
warranty:18months after shipment with 10 years support
Detailed Product Description

DC Start 120 / 220Vac Online High Frequency Ups With Surge Protection



Quick Detail:



1)Protection:Overvoltage,Low battery, overload,overheat,short circuit

2) Application:  Networking,Computer room,Datacenter,server room

3) Voltage:208/220/230/240VAC or 110/120/127(1-3Kva)



Introduction:

E-Tech Dual seriesOnline UPS2-3kva is with   Double Conversion technology uses DSP (Digital Signal Processor)

with a high processing capability and stability.

The E-tech Dual series automatically accepts wide input ranges of 85 to 275 Vac.

2kva and 3kva models are available in versions with input voltage 120V and 120V outlet ,or 220V input and 220V output ,

or input 220vac  and 120vac outlet, or 120vac input,220vac out let .It’s a popular product special designed for Brazil market where  has 2 kinds of power grid..

Main Features:





1.Advanced DSP technology

2.Output PF0.9/0.8  with stronger load ability

3.Double conversion online technology
4.Automatic  Bivolt input voltage 120/220vac power grid
5.Rated output voltage models available in 120V or 220V

6.Input PFC function
7.Self Test to verify the initial conditions of the equipment

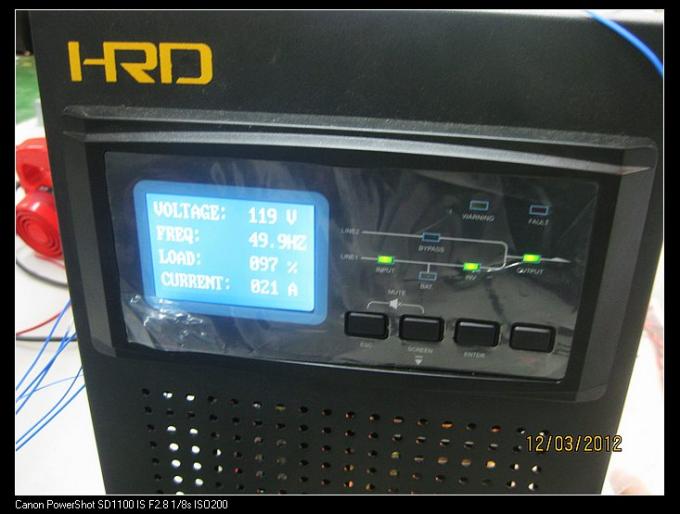

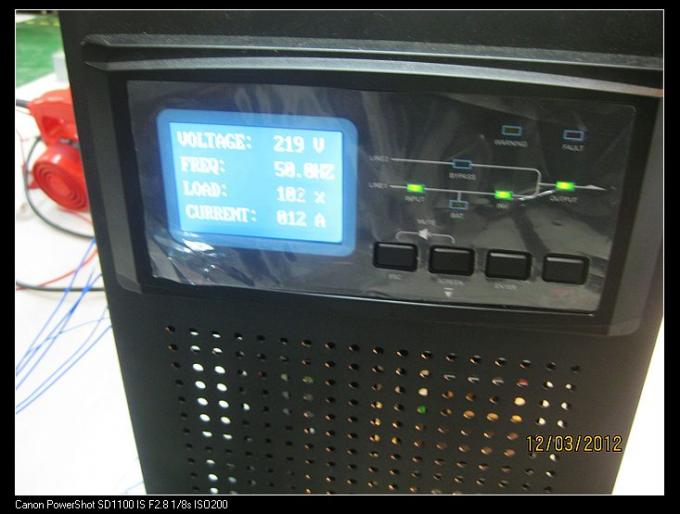

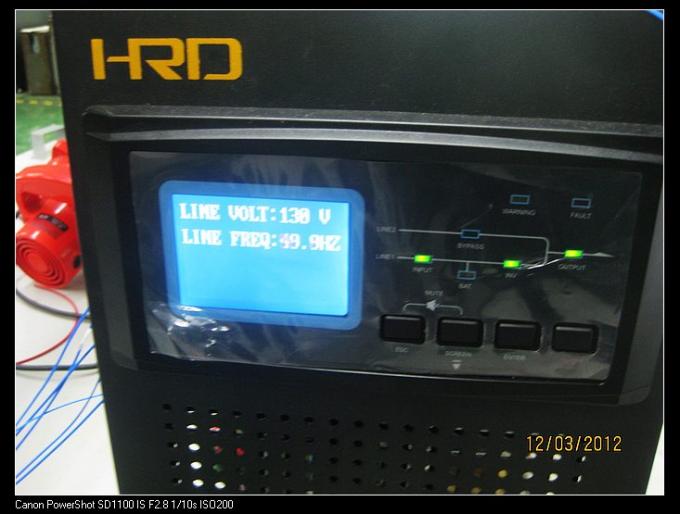

8.Large LCD display with LED indicator  to show etails of the conditions of the equipment, battery, output , and the power grid
9.Automatic rechargethe battery even with no break off ensuring a longer life
Battery management that warns when battery needs replacing

10.DC Start  function - can be connected even in the absence of the power grid charged with battery
11.Supportable with any kind of generator because of its wide range of input frequency (40Hz-70Hz)

12.Intelligent fan speed, controlled according to the consumption of load and temperature

13.Smart  RS232communication , USB, SNMP CARD, Dry contact  optional

Technical specification:



Model

ET-D2K

ET-D3K

ET-D2K-0.9

ET-D3K-0.9

Rating

2kva/1.6kw

3KVA/2.4Kw

2KVA/1.8Kw

3KVA/2.7Kw





Input

Rated input voltage

110 /120Vac or 220/230/240Vac

P.F

Above 0.99 at 100% load

Input frequency

40-70Hz(can be clamped in generator)

Voltage range

85 to 275









Output

Nominal voltage

110 /120Vac or 220/230/240Vac + -1% selection

P.F

0.8

0.8

0.9

0.9

Output Frequency

50Hz/60Hz+/-4hz (line mode)or  50Hz/60Hz+/-0.1(battery mode)

Current Crest Ratio

3:1

TDV

≤3% THD(Liner Load)

≤5% THD(Non-Liner Load)

Transfer time

0s

Wave form

Pure sine wave

Over load

105%<load<125% for 1 mins ,125%<load<150% for30sec





Battery

Quantity

6pcs x 12V

6pcs x 12V

8pcs x 12V

8pcs x 12V

Rated voltage

72vdc

72vdc

96vdc

96vdc

type

Sealed, lead-acid, maintenance-free

standard model: 12V/7AH OR9AH inbuilt

long run model: battery external, capacity optional



Back up time

Standard unit:

5-12mins;

Long-run unit:

depends on external battery

Standard unit:

5-15mins;

Long-run unit:

depends on external battery

Standard unit:

9-18mins;

Long-run unit:

depends on external battery

Standard unit:

8-15mins;

Long-run unit:

depends on external battery

Charge Current(standard unit)

1.0A

1.0A

1.0A

1.0A

Charge Current(long run unit)

4.0A

4.0A

3.0A

3.0A

Recharge time

5hours up to 90%



Indicator

LCD Version (with LED)

Load/Battery/Input/Output/Operating Mode Information etc.





Audible Alarm

Battery Mode

Sounding every 4 seconds

Low Frequency

Sounding every second

Overload

Sounding twice every second

Fault

Continuously Sounding











Physical

Unit Dimension

475*213*340 (L)

510*213*427 (S)

Packing dimension

603*332*482(L)

650*363*572(S)

Standard Unit

Net /GrossWeight(kg)

26/28

26/28

30/32

30/32

Long-run unit

Net /GrossWeight(kg)

15/17

15/17

15/17

15/17



Environment

Operating temperature

0 º C to 40 ° C

Relative humidity

0-90% non-condensing



Altitude

<1500m.when>1500m,derating

Noise Level

<55db at 1 Meter

Protections

Overload,  output short circuit ,under voltage and over voltage, battery low, battery over charged

Interface

Smart RS-232;USB,Dry contact board,SNMP(independent to RS232)
