Single Phase Automatic Voltage Stabilizer Adjusted Digital Control With Gray Color

Single Phase Automatic Voltage Stabilizer Adjusted Digital Control With Gray Color

Product Details:

Place of Origin: China
Brand Name: HRD/MOTU
Certification: CE, ISO9001,
Model Number: GTZW-O

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Standard for export
Payment Terms: T/T, L/C
Get Best Price Contact Now

Detail Information

Working Voltage: 127/120 +/-30% ,50/60HZ Working Environment Temperature: -15℃~+45℃
Altitude: ≤1000m, Above 1000m, Derating Relative Humidity: ≤90%
Color: Gray Phase: Single Phase
High Light:

12vdc voltage regulator

,

3 phase automatic voltage regulator

,

adjusted digital control voltage stabilizer

Product Description

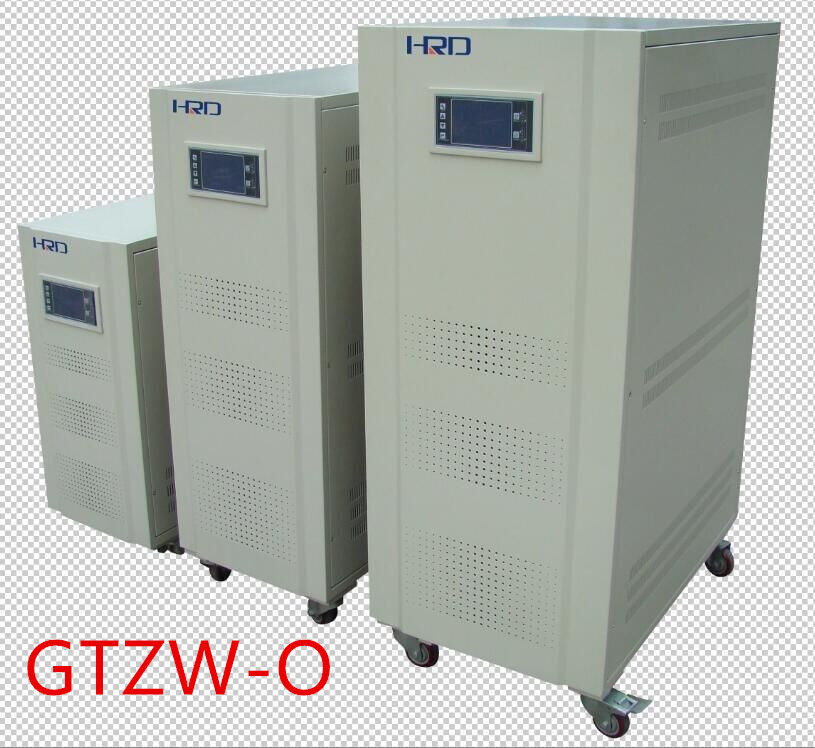

GTZW-D10-1600 KVA 1 Phase Digital Control Voltage Stabilizer Specifications







9.Display

1. Working Environments

Usage:indoor,vibration-free & jolt, stabilizer no serious affection from insulation gas, steam, chemical deposition, dust, dirt and other bombings and corrosive medium.

Working Voltage: 127/120 +/-30% ,50/60HZ

Working Environment Temperature:-15℃~+45℃

Altitude:≤3500m,

Relative Humidity :≤90%

Noise <9 DB1 Mt

Terminal Block for adding phases



  1. Product Specification
Phase Model

Capacity

(KVA)

Current(A) Size (mm)
W*S*G
Weight (kg)
Single phase GTZW-O10 1x10 83 350×600×750 140
GTZW-O15 1x15 121 150
GTZW-O20 1x20 165 160
GTZW-O30 1x30 253 180
GTZW-O45 2x45 374 390×650×870 195
GTZW-O60 2x60 495 240
GTZW-O75 2x75 622 460×650×1200 316
GTZW-O100 2x100 836 330
GTZW-O150 2x150 1254 700×700×1600 450
GTZW-O200 2x200 1650 530
GTZW-O250 2x250 1881 1100×800×2100 630
GTZW-O320 3x320 2673 720
GTZW-O400 3x400 3344 810



3.Characteristics



v LCD Large-screen

Using large-screen LCD display, can shows dynamic display voltage, current, and all kinds of working condition.



v Product Characteristics

The speed of response time(regulating speed) is very fast, non-contact, anti-interference, no mechanical failure and wear of carbon brush, maintenance-free. Three-phase voltage regulating independently to ensure the balance of output voltage . Effectively protect the security of the precision equipment.



v Precision (output accuracy) Can Be Adjusted

All precision of the stabilizer is preset plus or minus 2 Volt. According to different load demand can be adjusted plus or minus 2 Volt plus or minus 2 Volt.



v Manual Voltage Regulation

According to production requirement, within the scope of the 10% rated voltage value, the stabilizer can set voltage arbitrarily for different electrical equipment.



v Automatic Bypass Function

Equipped with automatic bypass function, when the stabilizer fails,it can turn into the mains automatically, no affection for the production.



v Output High and Low Voltage Protection Function

When monitoring circuit detect the output voltage beyond the upper or lower limit, voltage stabilizer can turn into the mains automatically, no affection for the production.



v Lack of Phase/Phase Fault Protection Function

When monitoring circuit detected phase failure, voltage regulator /stabilizer will cut off the output automatically and voice-alarm.



v Delay Stabilizing Output Voltage Function

Voltage Stabilizer boot or recover from a state of protection, would not be regulated immediately. But stay on only after users determine that the mains voltage are normal to ensure that the load equipment would not be damaged.



v Automatic Output Function

System preset is automatic output. When stabilizer connect to the mains, system detect that the power grid is normal, then it would delay <3 ms, stabilizing output voltage automatically.



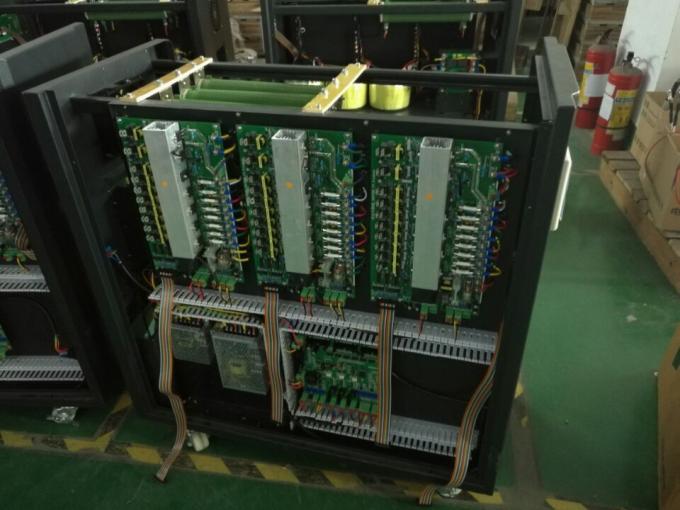

v Modular Design, Easy to Replace and Repair

Adopting modular design, regulating circuit and monitoring circuits independent to each other, all components are standard-normalization. Assembly, debugging, maintenance are more simple and quick.







v Strong Load/Carrying Capacity

When the short-time overload or short-circuit, the transformer would not be damaged to avoid coil burning fire. When overload 100%, stabilizer can withstand 15 Min seconds, 10 seconds for overload 500%.

  1. Main Technical Index
INPUT Rated Voltage 120/127 Vac Adjustable 90.6 /145.5
Stabilized Voltage Range 1P2W+G 120/127Vac+/-30%(20-60% can be customised)
Frequency 60HZ
Input breaker Yes
OUTPUT Rated Voltage 110/118/120/127 Vac
Center Voltage ±7℅(can be adjusted)
Output Accuracy 110/118/120/127Vac +/- 5%
Response Time ≤3ms
Power Factor 0.9
Stabilization Time ≤100ms/Step
THD <1% ( not produce additional waveform distortion)
Efficiency ≥99℅
Load regulation +/- 1,5%
Overload 500% 10Sg/ 100% 15Min/ 50% 1Hous/ 30% 2Hour 10% continue
Breaker Yes
PROTECTION Overvoltage We accept the request
Undervoltage We accept the request
Phase Loss Yes,uninterrupted to bypass
Surge Protection Yes
Overload Electric detection, overload 1 minute, the output would be cut off.
Over-current Electronic detection and circuit breaker dual protection.
Short Circuit Electronic detection and circuit breaker dual protection.
Bypass Manual bypass and automatic bypass.
Working State AVR/Bypass
Abnormal Over-voltage, under-voltage, over-load, fuse blowing

CONTROL MODE DSP operate metering chip intelligent control technology
Connection way

Terminal block for adding phases



WORKING MODE With automatic voltage regulation and the bypass, two working mode.

OVERLOAD CAPACITY



500% for 10 Seconds

100% for 15 minutes

50% for 1 Hour

30% for 2 Hour

10% Continue

MEASUREMENT TIME FOR CORRECTION 8.33 Ms response 1.5 us ( microseconds)
ISOLATION TRANSFORMER Yes 1 for Phases

5.Main Material List

Material Name Quantity Manufacturer Introductions
ENCLOSURE 1pcs HRD

Adopt 2.0 Thick Cold-Roll Steel Sheets.Surface treatment:G139→Phosphating+PZ660 powder+powder coating / or electrostatic

(RAL7032)plastic spraying;

DISPLAY 1pcs HRD Adopt STH wide angle LCD display,reading clearly;steroscopical and direct.
MAIN BOARD 1pcs HRD Develop PCB independently,stable circuitry;The main components adopt imported brand, like ”Infineon”, “ST”,“Fairchild”, “Toshiba”,etc.
SING PHASE COMPENSATING TRANSFORER 1PCS HRD Through secondary vacuum dipping, and continuously bake for 10 hours under the high temperature of 130 ℃.Transformer insulation class F, heat resistance 155 ℃. All the withstanding voltage are 3500V/5mA/min;
THREE-PHASE REGULATING TRANSFORMER 1PCS HRD
RELAY 1PCS HRD Adopt domestic first-class brand,special customized for the Digital Control Voltage Stabilizer.



FUSE





1PCS Ming Rong Adopting domestic fuse, the first brand ”Ming Rong”company’s high quality products
INPUT SWITCH 1PCS SHIHLIN

ABSORPTION

RESISTENCE

2PCS VILVA ELECTRONIC

Industrial-grade resistance stable and durable



durable



HYSTERESIS BETWEEN STEPS     < 1%
COMMUTATION     RELAYS
TECHNOLOGY     ADDITION AND SUBTRACTION PHASOR
NUMBER TAPS     6



6.Technology and Special Requirements



1.With output manual bypass switch;

2. Enclosure material: Baosteel(or Wuhan Iron and Steel Group Corp)2mm thick cold-roll steel sheets;

3.Surface Treatment:G139→Phosphating+PZ660 powder+powder coating(RAL7032);

4.Products manufacture in accordance with the law of the People's Republic of China industry standard ,Compensating AC Stabilizer Targets.



7.Technical Documents



Provide the complete technical file about the equipment :

A.1pcs The whole machine quality certification.

B.1pcs Product test report

C.1pcs User Manual





8.Quality Assurance and After-sales Service



1)Equipment warranty period is 2 year from the date of delivery;

2)During the warranty period,supplier offer technical support for free; When get the notice of the failure by the Party A, Party B should implement the warranty obligations; Reponse within 8 hours and the solution should be given without 24 hours to reduce the losses of Party A. If maintenance need other spare parts, Party B assist purchasing, installation and debugging, within 48 hours solve the problem.

3)After the warranty period, the supplier provide user with timely, high-quality, favorable technical service and supply spare parts.
