ECO Online High Frequency UPS

ECO Online High Frequency UPS supplier
cheap ECO Online High Frequency UPS cheap ECO Online High Frequency UPS cheap ECO Online High Frequency UPS cheap ECO Online High Frequency UPS

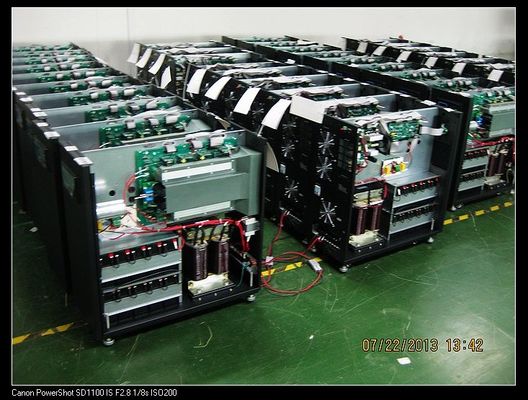

Large Image : ECO Online High Frequency UPS

Product Details:

Place of Origin:Shenzhen ,China
Brand Name:HRD brand
Certification:CE certificate
Model Number:PCP6K-TX

Payment & Shipping Terms:

Minimum Order Quantity:10
Packaging Details:1PCS/1WOODEN
Delivery Time:15-20DAYS
Payment Terms:TT OR L/C
Supply Ability:200PCS/WEEK
Warranty:18months after shipment
Detailed Product Description
Product Name: High Frequency Ups Input PF: ≥0.99
Input Frequency: 40-70hz Charge Voltage: 275Vdc
DC Voltage: 240Vdc Optional: SNMP/AS400/USB

PC + TX Online High Frequency UPS / Split Phase UPS 6KVA - 10KVA



1.DSP control ,with excellent performance and comprehensive protections for load and UPS ;

2. Output power factor 0.9,offering more stronger load capability;

3.Intelligent fan speed control ,with 4 levels varying to load and temperature;

4.Wide input range ,support kinds of generator;

5.Dual input AC source supportable

5. EPO(emergency power off);

6.Event log up to 100 events, recording UPS running time and critical memories ;

7.Configuable output both 120/ 240Vac

8.N+X parallel redundancy, up to 6units

9.AC and cold start function;

10. Human friendly large LCD, with plenty operation information

11. Conformal coating PCB for more critical operation environment

12. Multiple communication ports (optional)

13. Maintenance bypass (option)





 Technical Specification



Model

PCP6K -TX

PCP6KS -TX

PCP10K -TX

PCP10KS -TX

Capacity(Kva/kW)

6KVA/5.4kW

10KVA/9kW

Input  PF

≥0.99

Input

voltage

Phase

2Lines

Low

 transfer

L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load

Low back

L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load

High transfer

L-L 286 VAC ± 3%

High back

L-L:270 VAC ± 3%

Input frequency

40-70hz

Battery

quantity

external battery

20PCS*12V*9Ah

external battery

20PCS*12V*7Ah

Back up time

depend on external Battery

6mins @ full load

depend on external Battery

4mins @ full load

DC voltage

240Vdc

Charge voltage

275Vdc

Recharging current

4A/8A(option)

Output

Output  P.F

0.9

Output voltage

110/220Vac or 120/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2%(linear load), Less than 4% Non-linear load

Over load

105%<load<125% for 1 mins ,125%<load<150% for30sec

Efficiency

88%(Line mode)

87%(AC mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt,Load VA,Battery level, Input/Output voltage, output current,Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 60dBA @ 1 Meter

Physical

Net Weight (KG)

62

120

160

206

Gross Weight(KG)

74

132

180

249

UnitDimension

(D*W*H)mm

509*250*530

600×300×810

600*300*742

600*300*892

Packing (D*W*H)mm

650*363*765mm

680*360*960

720*420*920

720*420*1070



Note:All specifications subject to change without further notice; customized specifications are acceptable
