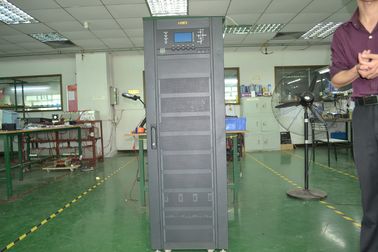

3 Phase Online High Frequency UPS With IGBT Rectifier 208Vac For Bank

3 Phase Online High Frequency UPS With IGBT Rectifier 208Vac For Bank supplier 3 Phase Online High Frequency UPS With IGBT Rectifier 208Vac For Bank supplier 3 Phase Online High Frequency UPS With IGBT Rectifier 208Vac For Bank supplier

Large Image :  3 Phase Online High Frequency UPS With IGBT Rectifier 208Vac For Bank

Product Details:

Place of Origin:Shenzhen Guangdong
Brand Name:HRD/OEM OR ODM
Certification:CE, ISO9001,TUV,
Model Number:PWA33 10-40KVA

Payment & Shipping Terms:

Minimum Order Quantity:5PCS
Price:2500USD/PCS;
Packaging Details:1PCS/ Pallet with wooden
Delivery Time:4 weeks after down payment
Payment Terms:TT or LC at sight
Supply Ability:500pcs/month
Warranty:2 years after shipment with 10years support
Detailed Product Description

3 Phase Online High Frequency UPS With IGBT Rectifier 208/220Vac(L-L) For Bank



Quick Detail:



1)digital controlled including the IGBT rectifier, inverter, charger, discharger.

2)Input connection:Three phase four wires

3) Features:  DSP technology, load power factor 0.9,Genset compatible

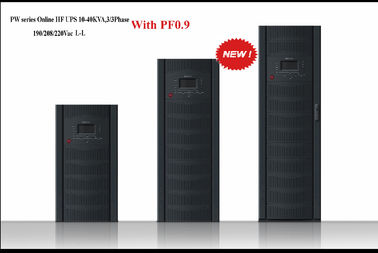

POWERWELL(America) series Online HF UPS 3/3phase 10-40kva transformerless,

(For 190/208/220Vac, Line-Line Voltage);

Perfect Applications:

Internet Servor ,Internet Data Center), Medium-scale network system / computingcenter, bank and securities, business server group, Medium-scale office automation,precision equipment, etc.

Features:

complete digital control technology

Fully digital control with two DSPs, all the subsystems are digital controlled including the IGBT rectifier, inverter, charger, discharger.

Excellent electrical properties

True online double conversion instruction offers the safe and effective power protection for various loads, with strong output load capacity;

High input power factor, green and energy-saving

Input end with PFC and input PF of the whole UPS up to 0.99;

Dual AC input source supportable

Allowable AC and bypass 2 input ac source

Strong environmental adaptability

Wide input voltage and frequency range, adaptation to all kinds of climatic

and geographical environment;

Comprehensive protection measures

 Surge Protection, short circuit protection, and other protection to ensure the reliability of UPS;

IGBT and SCR adopt the advanced EUPEC power module;

The adoption of advanced technology (IGBT driving technology, IGBT soft over-current shutdown) improves the reliability and safety of inverter.

Intelligent battery management (ABM)

Adopting the intelligent battery management: , battery lifespan extended by more than 30%;

 True three-stage charging process, temperature compensation, to extremely extend battery life and minimize the maintaining work;

3 Phase Online High Frequency UPS With IGBT Rectifier 208Vac For Bank

Online detecting battery status,

The max battery charging current can set by end users according to the

battery features, to avoid any damage caused by the big charging current;

Battery temperature compensation:

Periodic self-test battery, detecting the battery problems timely;

With battery over voltage / current protection, to protect the battery;

Cold start and Mains start Function

Directly start the UPS through battery or start UPS through Mains only.

Superior network monitoring capabilities

Communication port (RS232, USB, and so on) connecting with computer,SNMP card optional,

Easy-maintenance design

a) Adopts the full front maintenance design, reducing the restrictions

on the installation space, and saving the space of computing center;

b)Modular design class, convenient and easy site maintenance;

c) With manual maintain bypass,

d)Battery replacement without disrupting the UPS running;

e) Historical records search function, events up to1,000 items;

Friendly interface

 LargeLCD display and LED status indication; Abundant information display of UPS;

Technical Specifications:





Model

PWA3310

PWA3315

PWA3320

PWA3330

PWA3340

Capacity/Rating Power

10Kva/9Kw

15Kva/13.5Kw

20Kva/16Kw

30Kva/27Kw

40Kva/36Kw









AC Input







Rated voltage

190/208/220Vac (Line-Line)

Input connection

Three phase four wires

Power factor

Above 0.999

THDI

Less 3%

Voltage range

150-270Vac (Line voltage)

Frequency

40-70Hz

Bypass

150-270Vac (Line-Line)+/- 15%











Output









voltage precision

±0.5%

Dynamical

voltage transient

Less 5% ( 0~100% load step)

THDU

THD less0.6%( linear load ),3%(non-linear load)

Power factor

0.9 (lag)

Frequency

tracking range

50/60Hz±3Hz

Frequency precision



±0.05%(Battery mode) , ±3hz(Line mode)











OUTPUT



phase displacement

120±0.5°(Balance or imbalance load )

Frequency

tracking rate

Less 1Hz/s



Overload capability

105% long time operation

125%,transfer to bypass after 10 minutes

Above 150%, transfer to bypass after200ms





Bypass

overload

                                        below 125%, long time operation

125%<Load<150%,10mins

Transfer time

0ms

System

System efficiency

Above 92%;98%(ECO) mode

Display

 Touch screen LCD+LED





EMC

IEC62040-2

IEC61000-4-2 (ESD)

IEC61000-4-3 (RS)

IEC6100-4-4 (EFT)

IEC6100-4-5 (Surge)

Noise (1m)

Less 60dB

Insulating resistance

Above 2M (500VDC)

Insulating intensity

(input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min

Surge protection

Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA

IP class

IP30

Battery configuration

Installation(dc)

+192/216/240Vdc ,﹣192/216/240Vdc

Connection

Bottom cable connection in front

Charger

1-20A(Adjustable)

Dimension

(W×D×H)

Long-run model

620×800×1100

720×900×1850

Inbuilt batt.

620×800×700

720×900×1050

Weight (kg)

Long-run model

40

60

70

120

130

Inbuilt batt.

125

145

180

300

340

Note:Any specification subject to change without notice;
