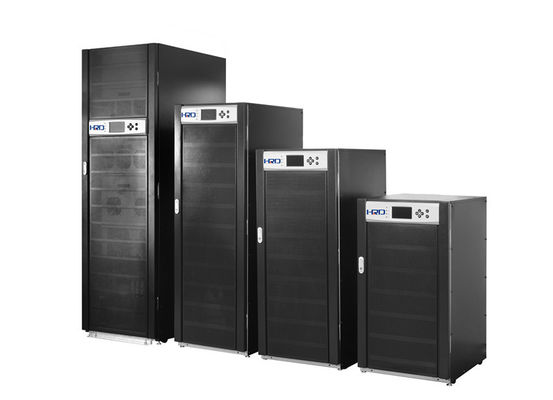

Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS

Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS supplier Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS supplier Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS supplier Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS supplier Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS supplier

Large Image :  Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS

Product Details:

Place of Origin:Shenzhen China
Brand Name:HRD or OEM
Certification:CE,ISO9001:2008
Model Number:ZH3315,ZH3320,ZH3330,ZH3340,ZH3360,ZH3380,ZH33100,ZH33120,ZH33160,ZH33200,ZH33300,ZH33400

Payment & Shipping Terms:

Minimum Order Quantity:1
Price:USD,2500-48000USD/PCS
Packaging Details:Wooden case with pallet
Supply Ability:100PCS/MONTH
Detailed Product Description
Color: Black Warranty: 2years Aftershipment
Efficency: 98% THDi: Less Than 3%
Parrallel: 4 Units,with Network Cable PFC Function: Yes
Function: Power Walking Function Input: 40-72Hz
Language: English, Spanish, Portughese, Russion,French, Korea,etc. Input PF: 1.0
Power Walking: Yes Ouput PF: 0.9
Input Voltage: -45%,Norminal+25%

Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS



ZH  Excellent series Online HF UPS provide effective data-center solution with advanced hardware and rich design features.It is adopted world leading technology and gained numbers of revolutionary technological breakthrough,which has leaded it become a complete

high level reliable product with excellen­­­t peformance





Perfect Applications:



Data centre,Telcom,  Health Care, Manufacturing

Advanced Features:

Energy-efficient design

  • With a transformer-free design
  • sophisticated   sensing and control circuitry
  • HE mode:High efficiency mode with surge protection up to a 98.5% rating, making it one of the most energy-efficient UPS.
  • And it still provides maximum load protection, within 4-8ms transfer time  with surge protection and Unlike most high efficiency UPS in ECO mode
  • .  Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS
  •        Real compatibility
  • Active power factor correction (PFC) provides 0.99 input power                    factor and <3% THDi, thus eliminating interference with other critical equipment in the same network and enhancing compatibility with generators. The ZH is optimized for protecting modern 0.9 p.f. rated IT equipment without the need to oversize.                                                                                                 True reliability
  • Hot Sync technology makes it possible  to parallel up to four UPSs to increase availability or add capacity.
  • The technology enables load sharing without any communication line, thus eliminating single point of failure.
  • High reliable with fullyDSP controlled  and excellent performance,MTBF>20,0000h
  • Compact & serviceable design
  • Small footprint occupies minimal floor space:
  • Up to 30% smaller than similar competitive solutions
  • Mean Time to Repair (MTTR) <30 mins
  • ECT function. With its Easy Capacity Test feature, the ZH can test its entire power train under full load stress without the requirement of an external load.
  • Power Walk-in function. When UPS transfer to line mode from battery, the battery current reduces slowly and AC current increase slowly.
  •  It can avoid the load all suddenly transfer to line mode. Let UPS  be more compatible  with generator and smaller capacity to save investment cost.
  • Separate  SPS for Bypass and main system
  •  Besides the SPS with reliable double circuit design but also the SPS of bypass is separated, which can  ensure even the main system SPS failed, UPS can transfer to bypass successfully.

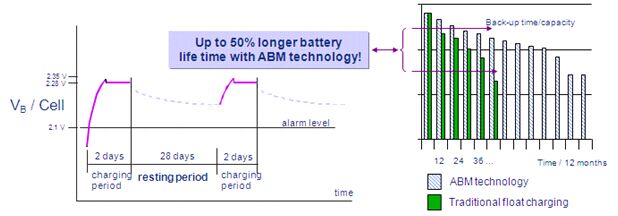

  • ABM  battery management
  • Intelligent interval  three-stage charging process( constant current, constant voltage,float charging and charger sleeping mode, when battery voltage decrease to a lower level, charger restarts to work).
  • Advantages:
  • Less internal battery corrosion due to resting period
  • Monitors battery charge level
  • Alarms and back-up time calculation
  • Allows users to anticipate end of battery life
  • Automatic discharge testing
  • Back-up time calculation
  • Online battery detection function

Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS

Temperature Compensation function

  • Full front Service Access design: Reducing the service time ,costs,  and space
  • Similar Modular Class design :
  • Power module and battery module design,which greatly reduces the  service time, in case of UPS fault
  • Fault Detection provides extra security – Detects difference between load fault and upstream source fault
  • Downstream fault cleared with increased short circuit
    capability remaining in high efficiency mode
  • Upstream fault cleared by immediately disconnecting
    from the utility fault
  • Compatible with generator
  • With super wide input frequency range 40-72Hz, and power walking function function,ZH series UPS is easy compatible with generator .

  • Advanced  wireless paralleling technology:
  • Parallel with RJ45 cable only and No need parallal Cards
  • Provides industry leading hardware availability
  • Modular scalability for capacity
  • N+1 redundancy – up to 4 modules in parallel
  • Strengths:
  • Peer to peer paralleling
  • Independent load sharing
  • No single-point-of-failure

Events log: up to  512events

Dust filter standard equipped

  • Default with washable dust filter as pre filtering for wide application
  • Non fuel material in case of fire

Flexible installation options

  • Full range of accessories for the ZH provides flexible installation options that expedite deployment and save valuable space.
  • The aesthetically designed accessories enable coordinated solutions that enhance both safety and reliability whilst reducing installation time and total cost.
  • The accessories family includes System Parallel Modules,
  • External Maintenance Bypass Switches, External Battery Cabinets, External Battery Circuit Breakers, Top cable Entry Cabinets, Rear Chimneys, IP21 kit (15-200kVA) & Internal Transformer Options (15-120kVA).
  •

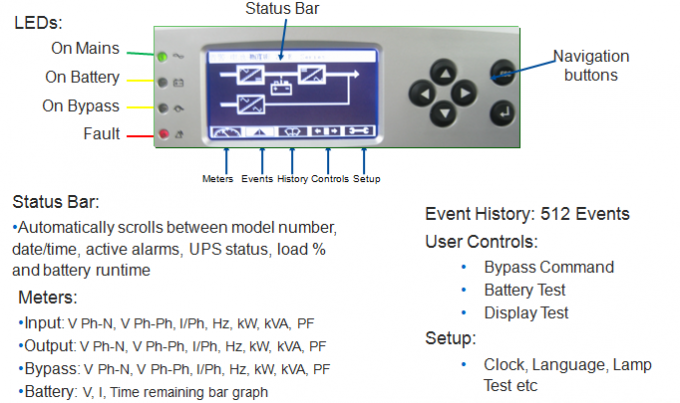

  • Graphic LCD display
  • Easy use, and multi language to select,such as :English,French,Spanish,Portuguese,Korean,Russian, Chinese
  • Black E Series 3 Phase Online UPS 15-400kva Uninterruptible Power Supply UPS
  •

Technical Specifications:

kVA

15

20

30

40

60

80

100

120

160

200

300

400

kW

13.5

18

27

36

54

72

90

108

144

180

240

360

Ups efficiency

94% (Full load on inverter-mode)

Standby

98.5% on HE mode, reliable protects load

Power expand

Easy expand capacity or redundancy via Hot-Sync

Topology

IGBT ON-Line Dual Conversion

Ac to Dc rectify

Rectifier

IGBT rectifier  with PWM tech

Input

Ac-Voltage

3Ph 380/400/415VAC +N+G (L-N: 220/230/240VAC)

Tolerance

-45%,Norminal +20%

THD

3%

Frequency

50Hz (60) auto-detect (40-72Hz range)

Input P.F.

1.0

Power Walk-in

Yes

Dc to Ac inversion

IGBT Inverter

Transformer-less

Output P.F.

0.9

Voltage

3Ph 380/400/415VAC +N+G (L-N: 220/230/240VAC) + 1%

Overload

115%: keep working, 125%, 10mins

THDi

2%

Frequency

50Hz (60)

Unbalanced load

100%

Crestor factor

3:1

Bypass

Static bypass

Yes

Voltage

3Ph 380/400/415VAC +N+G (L-N: 220/230/240VAC) + 15%

Maintenance bypass

SWMB

Yes

Battery configure

Yes

Option

Charge

ABM or 3-stage charge control

Battery type

VRLA or Gel

Backup time

Depend on capacity, discharge depth

Quantity

32-40 cells, default 36

36-40 cells, default 40

Recharge time

8 hours up to 90%

Communication slot

Slot

RS232, Mini-slot

Accessory

Mini-slot SNMP/Web Card, Mini-slot Modbus/Ethernet card, Mini-slot AS400 card

Operation condition

Temperature

0-40℃

Storage

-25-55℃

Humidity

5-95% non-condense

Altitude

No degrade power under 1000m

Noise (dB)

55

62

65

70

73

Standard

EMC

61000-4

EMI

EN5550022/EN55024

Quality

ISO9001-2008

Certificate

CE

kVA

15

20

30

40

60

80

100

120

160

200

300

400

Physical Size

500*710*960

500*710*1230/1500

600*800*1876

1600*820*1880

Ups Weight

72

91

120

202

245

283

311

457

860

970

Ups with battery

272

376

490

External battery design

Ups with transformer

220

245

328

532

575

660

720

Transformer-less
