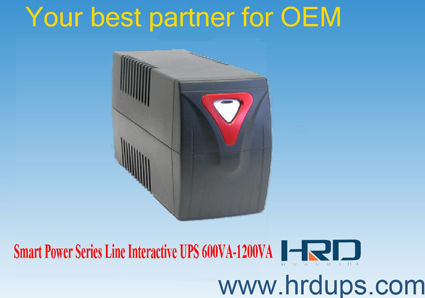

UPS Smart Power Series Line Interactive

All Products

Online High Frequency UPS (20)

Online Low Frequency UPS (4)

Line Interactive UPS (3)

Rack Mount Ups (6)

Electric Inverter (2)

Rechargeable Lead Acid Batteries (6)

Home Power Inverter (9)

UPS Accessory (3)

Solar Power Inverter (3)

Frequency Convertor (1)

HRD UPS is a reliable company and goods are of high quality with reasonable price

—— Mr Ramazan

HRD UPS service is quite good,I like it!

—— Mr Mohammed

HRD UPS is of high quality than I expected,wish for long term business with them.

—— Mr Hassan ,Saudi Arab

Detailed Product Description

Ideal Applcation: PC, POS system, small office etc.

Specifications:-

RATING	600 VA		800 VA			1000 VA		1200VA
INPUT
Voltage Range	150V AC to 275V AC
Frequency	50Hz +/- 6%
OUTPUT
Power	600VA/360W		800VA/480W		1000VA/600W		1200VA/720W
Voltage(Inverter mode)	220V AC Nominal
Frequency(Inverter Mode)	50Hz +/- 2%
Voltage(Mains AVR Mode)	220V +/- 12%
Transfer Time (Typical as)	3 m.s.
PROTECTION
Surge Protection	Optional	Provided
Input Fuse	Provided
Modem/Network(OPTIONAL)	RJ-11	RJ-45
BATTERY
Type	Sealed Lead Acid Maintenance Free
Number	1 No. 12V 7Ah	2 No. 12V 7Ah		2 No. 12V 7Ah
Typical Recharge Time	8 Hours (upto 90% of full capacity)
Protection	Deep Discharge Protection
Deep Discharge Protection	User Replaceable
PHYSICAL
Net Weight(kg.) approx.	7.0kg.	13.6			14.6
Gross Weight (kg) approx.	7.5kg.	14.4			15.6
Dimensions(WxHxD) mm	95x146x313 mm	120x196x385			120x196x385
LED INDICATION	Inverter On, On Mains Normal, Mains On, Low Battery Trip.
COLOUR
Mains Normal	Green
On Battery Mode	Orange
Over Load/Batt. Low/Batt. Mode Short-Circuit Trip	Red
No Load Shut Down	Red Blinking
ALARMS
On Battery Mode	Beeps Every 30Sec.
Low Battery Pre-alarm	Continuous Beeping
Over Load/Batt. Low/Batt. Mode Short-Circuit Trip	Inverter mode O/P trip with continuous beeping and low battery indication.
Low Battery Pre-alarm	Continuous Beeping
COMPUTER INTERFACE DB9(OPTIONAL)	Bi-directional (dry contact) Mains failure,
	Low Battery pre-alarm UPS & computer shutdown
ENVIRONMENTAL
Operating Temperature	0-40 deg C (32-104 deg F)
Storage Temperature	0-40 deg C (32-104 deg F)
Humidity	0-95% RH non-condensing

Higher capacity models are available on request.
Due to continuous product development specifications are subject to change without prior notice.

Tag : Line interactive UPS, offline ups, UPS
