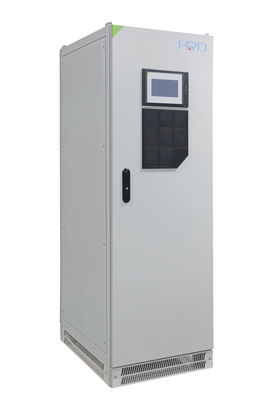

Stable PE iND II 3/1P 220Vdc 10-80kVA Online Industrial UPS with 380V/400V Input Voltage
Product Details:
| Place of Origin: | China |
| Brand Name: | HRD /OEM |
| Certification: | ISO9001 |
| Model Number: | PE-iND II 10-80KVA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 3000-30000USD |
| Packaging Details: | standard for export |
| Delivery Time: | 5-6weeks after deposit |
|
Detail Information |
|||
| Output Voltage: | 220V/230V | Efficiency: | ≥93% |
|---|---|---|---|
| Power Factor: | 0.9 | Operating Temperature: | 0-40℃ |
| Frequency: | 50/60HZ | Input Voltage: | 380V/400V |
| Cooling Method: | Forced Air Cooling | Battery Voltage: | 110/120/220Vdc |
| Highlight: | 220Vdc Online Industrial UPS,3/1P Online Industrial UPS,10-80kVA Online Industrial UPS |
||
Product Description
PE iND II 3/3P 220Vdc 10-800kVA Online Industrial UPS
PE iND ll is a 3/3Phase Online Industrial UPS with IP30 protection and outstanding heat dissipation performance for industrial and harsh environments by applying advanced graphene coating Hi-tech components.
It is a super robust and excellent uninterrupted power supply ,specially developed for industrial application environment.
Based on full digital control and kinds of patented technology ,the system integrates strict protection with multiple redundant design, perfect protection measures to stand with harsh environment. Moreover, the chassis structure is 100% front access, to allow easy maintenance ,wiring for input &output, and periodically components replacement.
Perfect Application: Petroleum, Chemical Industry, Nuclear Power, Electric power, Industrial Manufacturing, Metallurgy, Military Industry, Aviation, Rail Transit, Ships and other industries with poor application environment.
MAIN FEATURES:
- World Leading technology
- Fully latest generation DSP technology
- Completely isolation with input output with isolation transformer
- IP30 as default, higher optional
- Graphene coating Hi-tech components
- Super strong load capacity,with wide input range
- Redundant design with muti-protection to ensure super security, control power supply, intelligent fan etc.
- Independent cooling system, ensuring ultra- reliability with harsh environment
- Super wide input voltage/frequency range, adapt to harsh utility environments
- Soft start with settable time 6-100seconds , more compatible with generator
- Intelligent self-diagnosis, mass memory(10000 events) to record operation log
- Super long MTBF≧200000 hours, and short MTTR
- Patented intelligent digital equal current parallel technology,up to 8units
- Multiple I/O dry contacts, perfect communication and remote monitoring functions, built-in Modbus communication protocol
- Output short-tolerant ability,
- ABM battery technology, extremely low ripple current to extending battery lifespan
- Ni-cd, Lead -Acid battery supportable
- Power walk-in function, protecting rectifier during the transferring process from battery to AC mode
- 100% full front acess,easy maintance
- Emergency Power Off(EPO)
