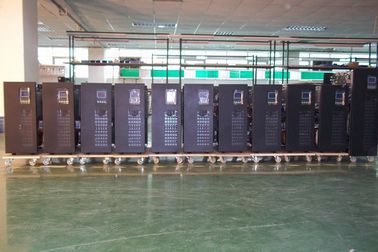

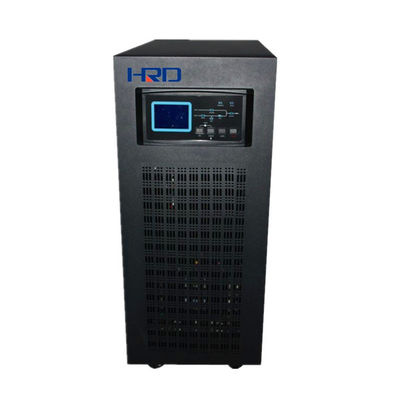

Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES)

Model

PSA04H

PSA06H

PSA10H

PSA15H

PSA20H

Rating capacity

4KVA/3.2KW

6KVA/4.8KW

10KVA/8KW

15KVA/12KW

20KVA/16KW

input

Phase

 2LINES+G

P.F

>0.98

>0.95

Rating voltage

208/220V/240V

Voltage range

190V/208/220V+/-30%

Rating frequency

60Hz/ 50Hz(auto-sensing)

frequency range

40-70Hz

THDi

<5%

Soft start

0 to 100% , 3 to 5 seconds

Charge

Float charge

220VDC

Current

4 to10A (extendable)

Protection

Charge voltage, over current protection, short circuit protection

Battery

Model

Lead acid maintenance  free battery

Rating voltage

192VDC (external),

O/P

P.F.

0.8(lagging)

Phase

2phase 2LINES +N

Rating voltage

120V/208V, 127/240VAC

Rating frequency

50Hz/60Hz(auto sensing)

Frequency

<±0.1Hz in battery mode

Voltage

<±1.5%(static)

Crest factor

3:1

Wave distortion

Liner load<3%;Nolinear load<5%

dynamic load voltage instant distortion

Liner load<±5%(from 0-50%-100%)

Dynamic response recover time

<40ms

overload capacity

105%～125％10min;125%～150% 1min;

>150%10ms

transfer time

0mS(AC-Battery);<4ms(bypass-inverter)

System

display

LED+LCD

Efficiency

100% linear >89%

Operate temp

0～40℃

Humidity

0～90% (non-condensing)

Cooling

Intelligent fan cooling

Noise dB

<55 (≤1M)

<60(1M)

Physics

configuration

Tower, IP21

Weight (Kg)

60

100

128

150

218

Dimension          (W×H×D)mm

210×586×563

460×950×710
