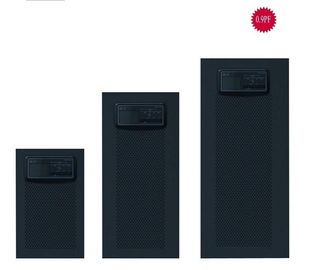

Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS

Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS
Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS

Large Image :  Power Castle Series Online HF UPS 6-20KVA, Excellent Quality UPS Get Best Price

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: HRD/OEM/ODM
Certification: CE,ISO9001-2000
Model Number: PC06-3120
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: 1-5000USD
Packaging Details: carton with parallet
Delivery Time: 10-15DAYS after shipment
Payment Terms: TT OT LC
Supply Ability: 100PCS/DAY
Price term: Fobshenzhen
warranty: 18months after shipment, 10years spares support
Detailed Product Description
High Light:

online power supply

,

online uninterruptible power supply

,

Online HF UPS 20KVA



POWER Castle Series 6-20KVA, excellent quality UPS



Introduction:

Power Castle 6K-20Kva, single phase, 3/1phase, is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.

Tailored for AC Grid Environment

Output power factor up to 0.8 – applicable to the tendency of future load evolution, and deliver higher payload capability.

Total power factor up to 90% can minimize the power loss of UPS and utilization cost for user. Active power factor correction (PFC) technology allows the input power factor approaching to 1, dramatically reducing the immunity on utility grid.  Excellent input frequency range makes UPS suitable to different power supply devices, i.e. generator set.

Flexible Configuration as Demand

High Scalability: fully meet the customer's demands. Online Intervention: safe and online intervention without any power supply interruption to load.

Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency.

Parallel Kit: realize the parallel extension and redundancy function, offer more flexibility and safety for user's power supply planning.

Compact Design, Lower Noise

With leading control technology and craftsmanship, this UPS can greatly increase the power density and reduce the footprint, therefore save more expensive space in your office environment. Additionally, its lower noise during operation can allow you a more comfort working environment.

Perfect failure protection and alarm function: provide complete failure protection and clear alarm notification function in case of I/O over-voltage or under-voltage, battery over-charge or under-voltage, overload, and short circuit.

High Reliability

Its cut-edge digital control technology of DSP (Digital Signal Processor) can deliver higher quality, performance and reliability and can be suitable to all severe environments. Higher payload and overload capability, better load compatibility, and suitable for various load type. Powerful Interference immunity capability in compliance with EMC requirements of IEC61000-4, deliver your device a clean electric environment.

Large LCD display with multy information and for Easy Maintenance

LCD displays input output voltage, current, frequency, battery condition, load percent, watts , VA, working mode and necessary information ect.;

If any important fault, UPS will detect it automatically and display on the LCD, easy maintenance

192VDC and 240vdc convertible via jumpers, Easy use

Auto Control running fan, 4levels, energy saving

The fan speed auto control running as per the load and temperature by 4 levels

Event log function, 100events, easier for maintenances

Rich Communication and Monitoring Features

Provide RS232 interface and communication cable for local ;remote management and monitoring function.(SNMP), CMC, or AS400 card (dry contact)

Intelligent DSP 10A charger (option)



Technical Specification:

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Capacity(kva/kw)

6kva/5.4kw

8kva/7.2kw

10kva/9kw

12kva/10.8kw

10kva/ 9kw

15kva/13.5kw

20kva/18kw

Input

Phase

1/1phase, 1wire+N+G

3/1phase, 3wires+N+G

Input PF

≥0.999

≥0.96

Input

voltage

Low

transfer

L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load

Low back

L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load

High transfer

L-N:286 VAC ± 3%

High back

L-N:270 VAC ± 3%

Input frequency

40-70hz

Battery

Rating/type

12V/7Ah

12V/7Ah

12V/9Ah

12V/9Ah

depend on external battery capacity

quantity

20

20

20

20

Back up

time

Standard model

3-10mins depends on load

Long-run model

depend on external battery capacity

DC voltage

192/240Vdc

Charge voltage

220/275Vdc

Recharging current

Standard model

1A

4A/10A(option)

Long-run model

4A

Output

Output  P.F

0.9

Output voltage

220/230/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2% (linear load), Less than 4% Non-linear load

Over load

105% < load < 125% for 1min, 125% < load < 150% for 30s

Efficiency

92%(Line mode)

98%(ECO mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current,

Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 58dBA @ 1 Meter

Physical

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Net Weight (KG)

Standard model

62

63

79

80

86

N/A

Long-run model

20

21

29

30

36

49

Gross Weight

(KG)

Standard model

69

70

86

87

93

N/A

Long-run model

22

22

37

38

43

56.5

Unit Dimension

(D*W*H)mm

582×260×572 (including wheel height 642)

600×300×660

(including wheel height 740)

Packing (D*W*H)mm

680*360*810 (0.2CBM)

720*420*920 (0.28CBM)

Note: “S”   refers to “Standard model”,”L” refers to “Long-run model”

All specifi  cations subject to change without further notice; customized specifications are acceptable
