Product Details:
Payment & Shipping Terms:
|
Type: | Online LF UPS | Output PF: | 0.9 Or 1.0 |
---|---|---|---|
Efficency: | Up To 94% | MTBF: | ≧200000 Hours |
Conformal Coating: | Yes | DSP: | Double DSP Full Technology |
ABM: | YES | PARALLEL: | UP To 8 Units |
IP: | IP30 Or 40 | Battery Type: | LEAD-ACID, GEL,NI-CD, Liuthum |
Warranty: | 3years,10 Years Technical Support | ||
High Light: | online lowe frequency ups,online ups power,0.9PF online lf ups |

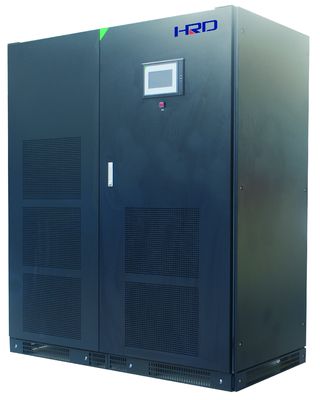

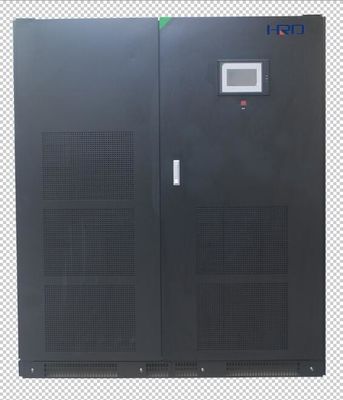

PE II Series Online LF UPS 80-800kVA UPS,0.9PF
PE II series is a fully DSP controlled high-level industry UPS with capacity up to 800kVA.
Based on nowadays the most advanced DSP(TI 2833X CPU), MCU, CPLD ect ,and more than 20nos leading innovative technology ,this UPS has become a perfect robust and cost-effective power solution, optimizing the minimal operating cost for end users.
Its extremely high reliability can solidly ensure the continuous availability of power and safe operations for all types of critical load.
Fully DSP technology with extremely low cycle current,it can be parallel up to 8 units for redundancy or capacity expanding purpose.
Super reliability and excellent performance based on innovational solution,it definitely ensures your business away from any power problem!
MAIN FEATURES:
3.Communication interface:
Friendly human machine interface, with 7inch touch screen
Capacity | 80kVA | 100kVA | 120kVA | 160kVA | 200kVA | 300kVA | 400kVA | |||||||||
72kW | 90kW | 108kW | 144kW | 180kW | 270kW | 360kW | ||||||||||
6P | 12P | 6P | 12P | 6P | 12P | 6P | 12P | 6P | 12P | 6P | 12P | 6P | 12P | |||
Input | Wiring connection | Three phase+Ground | ||||||||||||||
Nominal voltage | 380/400/415VAC | |||||||||||||||
Voltage range | 285VAC~498VAC | |||||||||||||||
Frequency | 50/60Hz | |||||||||||||||
Frequency range | 45-65Hz | |||||||||||||||
Soft start | 5-600sec settable | |||||||||||||||
Power factor | 0.95(with input filter) | |||||||||||||||
Bypass | Nominal voltage | 380/400/415VAC (Three phase+Neutral+Ground) | ||||||||||||||
Frequency | 50/60Hz±10% | |||||||||||||||
Voltage range | ±10%,±15%,±20% settable | |||||||||||||||
Output | Nominal voltage | 380/400/415VAC (Three phase+Neutral+Ground) | ||||||||||||||
Voltageregulation | ±1%(balance load),±2%(100% unbalance load) | |||||||||||||||
Power factor | 0.9(1.0 optional) | |||||||||||||||
Dynamic response | ±5%(0~100% load transient) | |||||||||||||||
Distortion | <1%(100% linear load ),<3%(100% non-linear load) | |||||||||||||||
Transient response | <5ms | |||||||||||||||
Sync. Range | ±2Hz(±0.5—±3Hz settable) | |||||||||||||||
Overload | 105% continue,110% 1Hr,125% 10min,150% 1min | |||||||||||||||
Frequency | ±0.05% | |||||||||||||||
Waveform | Pure sine wave | |||||||||||||||
Efficiency | Inverter mode | Up to 94% | ||||||||||||||
ECO mode | 98% | |||||||||||||||
Parallel | N+X | Max 8 units | ||||||||||||||
Battery | Configurtation | 12V,32 pieces default(30~34pieces settable) | ||||||||||||||
Display | LCD + LED | |||||||||||||||
Physical | Dimension (mm) |
Depth | 855 | |||||||||||||
Width | 890 | 1415 | 890 | 1415 | 890 | 1415 | 1245 | 1770 | 1245 | 1770 | 1640 | 2265 | ||||
Height | 1900 | |||||||||||||||
Weight(Kg) | 960 | 1390 | 960 | 1390 | 960 | 1390 | 1075 | 1685 | 1075 | 1685 | 1630 | 2290 | 2105 | 2500 | ||
Environment | Temperature | 0-40℃ | ||||||||||||||
Humidity | 0-95% non condensing | |||||||||||||||
Noise(1m) | 67dB | |||||||||||||||
Connective | RS-232/(USB option) | Support windows2000/XP/7/Linux/Unix/Mac | ||||||||||||||
SNMP | Support remote control through web browser | |||||||||||||||
Standard | Anti-thunder | D grade | ||||||||||||||
Safty | IEC60950-1,IEC62040-1-1 | |||||||||||||||
EMC |
IEC62040-2,IEC62040-3
|
Capacity | 500kVA/450kW | 600kVA/540kW | 800kVA/720kW | |||||||||||
12P | 12P | 12P | ||||||||||||
Input | Wiring connection | Three phase+Ground | ||||||||||||
Nominal voltage | 380/400/415VAC | |||||||||||||
Voltage range | 285VAC~498VAC | |||||||||||||
Frequency | 50/60Hz | |||||||||||||
Frequency range | 45-65Hz | |||||||||||||
Soft start | 5-600sec settable | |||||||||||||
Power factor | 0.95(with input filter) | |||||||||||||
Bypass | Nominal voltage | 380/400/415VAC (Three phase+Neutral+Ground) | ||||||||||||
Frequency | 50/60Hz±10% | |||||||||||||
Voltage range | ±10%,±15%,±20% settable | |||||||||||||
Output | Nominal voltage | 380/400/415VAC (Three phase+Neutral+Ground) | ||||||||||||
Voltageregulation | ±1%(balance load),±2%(100% unbalance load) | |||||||||||||
Power factor | 0.9(1.0 optional) | |||||||||||||
Dynamic response | ±5%(0~100% load transient) | |||||||||||||
Distortion | <1%(100% linear load ),<3%(100% non-linear load) | |||||||||||||
Transient response | <5ms | |||||||||||||
Sync. Range | ±2Hz(±0.5—±3Hz settable) | |||||||||||||
Overload | 105% continue,110% 1Hr,125% 10min,150% 1min | |||||||||||||
Frequency | ±0.05% | |||||||||||||
Waveform | Pure sine wave | |||||||||||||
Efficiency | Inverter mode | Up to 94% | ||||||||||||
ECO mode | 98% | |||||||||||||
Parallel | N+X | Max 8 units | ||||||||||||
Efficiency | Line mode | Up to 94% | ||||||||||||
ECO mode | 98% | |||||||||||||
Parallel | N+X | Max 8 units | ||||||||||||
Battery | Configurtation12V*40PCS(38-42PCS settable) | |||||||||||||
Display | LCD + LED | |||||||||||||
Physical | Dimension (mm) |
Depth | 855 | 855 | 855 | |||||||||
Width | 2700 | 3000 | 3800 | |||||||||||
Height | 1900 | 1900 | 1900 | |||||||||||
Weight(Kg) | 3000 | 3500 | 4100 | |||||||||||
Environment | Temperature | 0-40℃ | ||||||||||||
Humidity | 0-95% non condensing | |||||||||||||
Noise(1m) | 71dB | 73dB | 76dB | |||||||||||
Connective | RS-232/(USB option) | Support windows2000/XP/7/Linux/Unix/Mac | ||||||||||||
SNMP | Support remote control through web browser | |||||||||||||
Standard | Anti-thunder | D grade | ||||||||||||
Safty | IEC60950-1,IEC62040-1-1 | |||||||||||||
EMC | IEC62040-2,IEC62040-3 |
