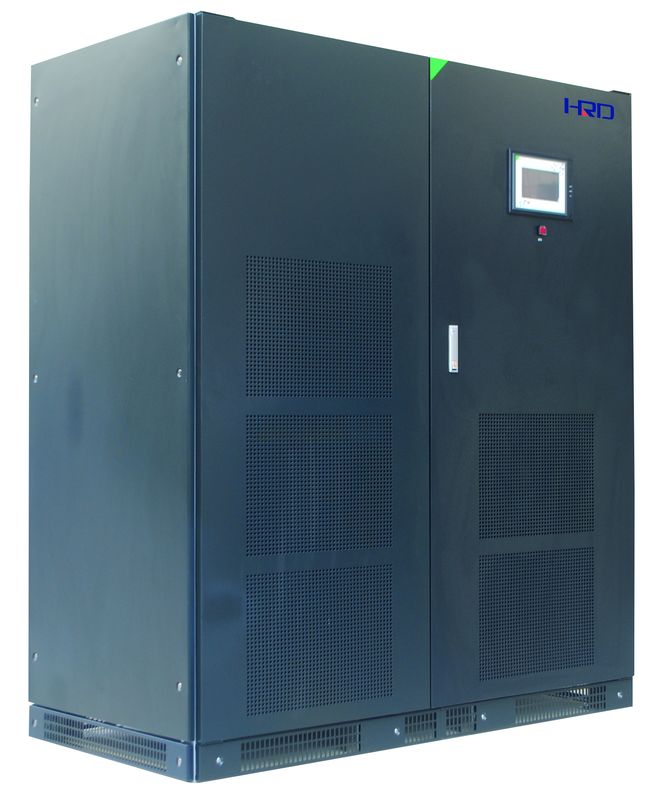

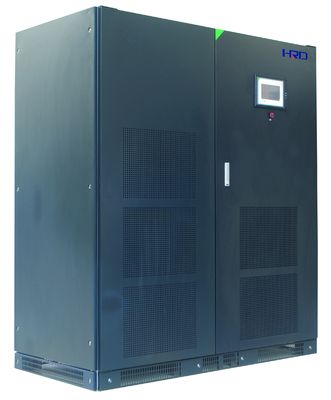

3 Phase 480 Vac Online Ups Double Conversion (PEAII Series) 300-800kVA

3 Phase 480 Vac Online Ups Double Conversion (PEAII Series) 300-800kVA

Product Details:

Place of Origin: Shenzhen China
Brand Name: HRD/OEM
Certification: CE,ISO9001:2008
Model Number: PEA33300II,PEA33400II,PEA33600II,PEA33800II

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 3100usd/pcs
Packaging Details: 1PCS/CTN ,wooden case with pallet
Delivery Time: 4 weeks after down payment
Payment Terms: TT or LC
Supply Ability: 1000PCS/month
Warranty: 2years after shipment
Get Best Price Contact Now

Detail Information

Product Description

3 Phase 480Vac Online Ups Double Conversion PEAII SEIRES 300-800kVA for 190/208/220Vac
3 Phase 480Vac Online Ups Double Conversion PowerExcellent II America

PEA II Highvoltage 480Vac Online Industrial UPS 300-800kVA

PEA II series is a fully DSP controlled high-level industry UPS for 480Vac power grid.Based on nowadays the most advanced DSP(TI 2833X CPU), MCU, CPLD ect.and more than 20nos leading innovative technology ,this UPS has become a perfect robust and cost-effective power solution, optimizing the minimal operating cost for end users.

Its extremely high reliability can solidly ensure the continuous availability of power and safe operations for all types of critical load.

Fully DSP technology with extremely low cycle current,it can be parallel up to 8 units for redundancy or capacity expanding purpose.

Super reliability and excellent performance based on innovative solution,it definitely ensures your business away from any power problem!




  • World Leading technology
  • The state-of-art fully DSP technology with output isolation transformer
  • Super wide input voltage/frequency range, adapt to harsh utility environments
  • Soft start with settable time 6-100 seconds,stronger protection to rectifier , more compatible with generator
  • Output power factor 1.0optional, and output short-tolerant capability
  • Intelligent self diagnosis, mass memory(1000 events) to record operation log
  • Super long MTBF≧200000 hours, and short MTTR
  • Intelligent parallel up to 8 units and parallel ECO Mode.
  • Most intelligent digital equal current parallel technology,self-load share algorithm
  • Single and parallel mode ECO available
  • Independent cooling system, muti-protection design, ensuring high reliability with harsh environment and load
  • Output short-tolerant ability,
  • ABM battery technology, extremely low ripple current extending battery lifespan
  • Lithium ,Ni-cd, Lead -acid battery acceptable
  • Frequency convertor mode function
  • Power walk-in function, protecting rectifier during the transferring process from battery to ac mode
  • Emergency Power Off(EPO)
  • Super Reliability
  • Fully DSP control with output isolation transformer, super reliability.
  • Redundant SPS,fan etc. design, enhancing system reliability.
  • Build-in output isolation transformer, eliminate neutral to ground drifting voltage, and isolate load harmonic current influence to inverter.
  • Besides highest design technology,only qualified famous brand components used.
  • Conformal-coating PCB fixed in sealed box,keeping away from outside effect

3.Communication interface

  • Build-in various communication connectors (RS232, RS485, AS400, EPO etc).
  • Optional cards available: SNMP, battery management kit, lighting proof module, dust proof filter etc.


  • Easy Operation
  • Front side maintenance, top or bottom wiring connection, with protective equipment.
  • Friendly human machine interface, with 7inch touch screen .

3 Phase 480 Vac Online Ups Double Conversion (PEAII Series) 300-800kVA 0










  • Education & Medical,
  • Petroleum&Oil Chemical,Iron&Steel etc.
  • Theater, Harbor, Transportation etc.
  • Traffic facilities etc.


Capacity 300kVA 400kVA 500kVA 600kVA 800kVA
270kW 360kW 450kW 540kW 720kW
Input Wiring connection Three phase+Ground
Nominal voltage 480Vac
Voltage range 360Vac~600Vac
Frequency 50/60Hz
Frequency range 45-65Hz
Soft start 5-600secs settable
Power factor 0.95(with input filter)
Bypass Nominal voltage 480Vac (Three phase+Neutral+Ground)
Frequency 50/60Hz±10%
Voltage range ±10%,±15%,±25% settable
Output Nominal voltage 480Vac (Three phase+Neutral+Ground)
Voltageregulation ±1%(balance load),±2%(100% unbalance load)
Power factor 1.0
Dynamic response ±5%(0~100% load transient)
Distortion <1%(100% linear load ),<3%(100% non-linear load)
Transient response <5ms
Sync. Range ±2Hz(±0.5—±3Hz settable)
Overload 105% continue,110% 1Hr,125% 10min,150% 1min
Frequency ±0.05%
Waveform Pure sine wave
Efficiency Inverter mode Up to 94%
ECO mode 98%
Parallel N+X Max 8 units
Battery Configuration 12V,40 pieces 480Vdc
Display LCD + LED



855*1640*1900 855*2265*1900 955*2865*1900 955*2865*1900 1000*3170*1900
N.W(Kg) 2300 2500 3000 3500 4600
G.W (Kg) 2400 2620 3150 3650 4900
Environment Temperature 0-40℃
Humidity 0-95% non condensing
Noise(1m) 67dB
Connective RS-232/(USB option) Support windows2000/XP/7/Linux/Unix/Mac
SNMP Support remote control through web browser
Standard Anti-thunder D grade
Safety IEC60950-1,IEC62040-1-1
EMC IEC62040-2,IEC62040-3

Note: Specification is subject to change without notice.

Customized according to customer requirement available.
