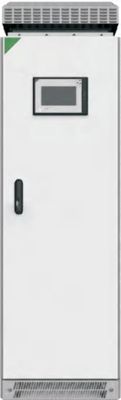

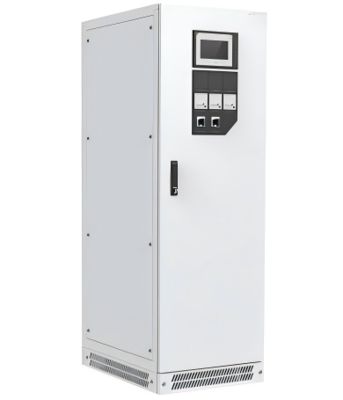

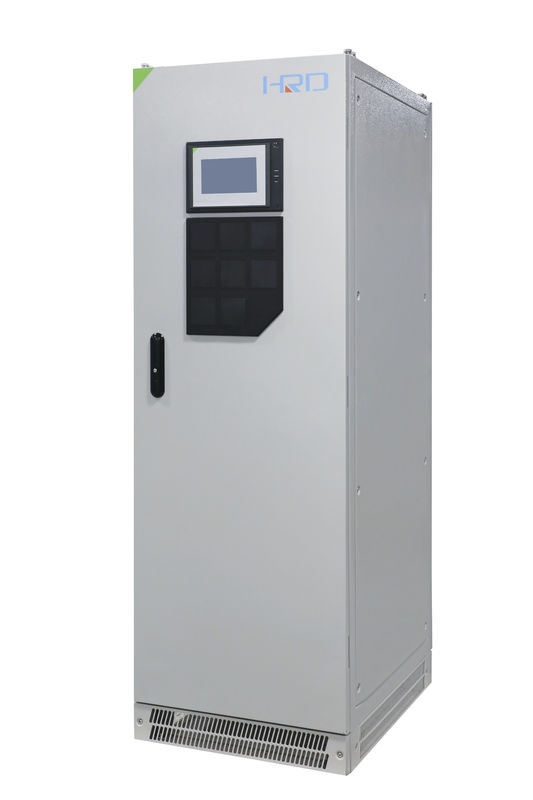

PE IND II 3/3P 220/384Vdc 10-200kVA Online Industrial UPS Air Cooling Efficiency ≥93%

PE iND II 3/1P,3/3P 110/120/220/384Vdc 10-200kVA Online Industrial UPS

PE iND ll is a 3/1,3/3Phase Online Industrial UPS with IP20-IP43 protection and outstanding heat dissipation performance for industrial and harsh environments by applying advanced graphene coating Hi-tech components.

It is a super robust and excellent uninterrupted power supply ,specially developed for industrial application environment.

Based on full digital control and kinds of patented technology ,the system integrates strict protection with multiple redundant design, perfect protection measures to stand with harsh environment. Moreover, the chassis structure is 100% front access, to allow easy maintenance ,wiring for input &output, and periodically  components replacement.

Perfect Application: Petroleum, Chemical Industry, Nuclear Power, Electric power, Industrial Manufacturing, Metallurgy, Military Industry, Aviation, Rail Transit, Ships and other industries with poor application environment.

Product parameter characteristics:
Power range: 3/3 10-200kVA, 3/1 10-200kVA
Input voltage: 3x208V,3x220/230V,3x380/400/415V,3x480V,3x690V (customizable)
DC voltage: 110/120/220/384V
Output voltage: single-phase output model, 1x115V,1x120V,1x220/230/240V 50/60Hz
Output voltage: three-phase output model, 3x208V,3x220/230V,3x380/400/415V 50/60Hz
Output power factor: 0.9
Protection level: standard IP20, optional up to IP43
Industrial options: Battery cold start, programmable I/O dry contacts, lightning protection option, insulation detection, lighting option, heating & dehumidification option, parallel operation option, LBS option, SNMP/Ethernet communication card option, V/F/I meter option, etc.
Customizable supporting products: Bypass regulated power supply, AC power distribution cabinet, DC power distribution cabinet, battery cabinet/rack

MAIN FEATURES:

• World Leading technology

• Fully latest generation DSP technology
• Completely isolation with input output isolation transformer
• IP20,as default,IP43 optional , higher optional
• Graphene coating Hi-tech components
• Super strong load capacity,with wide input range
• Redundant design with muti-protection to ensure super security, control power supply, intelligent fan etc.
• Independent cooling system, ensuring ultra- reliability with harsh environment
• Super wide input voltage/frequency range, adapt to harsh utility environments
• Soft start with settable time 6-100seconds , more compatible with generator
• Intelligent self-diagnosis, mass memory(10000 events) to record operation log
• Super long MTBF≧200000 hours, and short MTTR
• Patented intelligent digital equal current parallel technology,up to 8units
• Multiple I/O dry contacts, perfect communication and remote monitoring functions, built-in Modbus communication protocol
• Output short-tolerant ability,
• ABM battery technology, extremely low ripple current to extending battery lifespan
• Ni-cd, Lead -Acid battery supportable
• Power walk-in function, protecting rectifier during the transferring process from battery to AC mode
• 100% full front acess,easy maintance
• Cold start funtion
• Emergency Power Off(EPO)

• Capacity

  10kVA

  15kVA

  20kVA

  25kVA

  30kVA

  40kVA

  50kVA

  60kVA

  80kVA

  100kVA

  120kVA

  160kVA

  200kVA

  Main input

  Rated Input

  3x208V,3x220/230V,3x380/400/415V,3x480V,3x690V (customizable), 50/60Hz (three-phase)

  Voltage range

  +20 /-25%

  Frequency range

  50/60Hz +/-10%

  Bypass

  Rated Input

  3x208V,3x220/230V,3x380/400/415V,3x480V (customizable), 50/60Hz (three-phase + neutral)

  Voltage range

  -40% to +20% (optional)

  Frequency range

  ±2.5%, ±5%, ±10%, ±20% (optional)

  Synchronization range

  ±0.5~±3Hz (optional)

  Output

  Rated output

  3x208V,3x220/230V,3x380/400/415V,3x480V (customizable), 50/60Hz (three-phase + neutral + ground wire)

  Power factor

  0.9

  Stability accuracy

  ± 1% (balanced load)

  Voltage response dynamic

  ± 5% (0~100% load change)

  Voltage distortion

  <1% (linear load), <3% (non-linear load)

  Frequency accuracy

  ±0.05%

  Parallel number

  8

  Overload capacity

  Inverter operation: 110% for a long time, 125% for 10 minutes, and 150% for 1 minute

  Battery

  Voltage

  110V/220V/384V 2V/6V/12V battery is optional, supporting lead-acid battery, nickel-cadmium battery and lithium battery

  Number of batteries

  DC110V:8-10 lead-acid battery configuration, supports 86-95 nickel-cadmium battery configuration DC220V:17-19 lead-acid battery configuration, supports 172-182 nickel-cadmium battery configuration DC384V:30-34 lead-acid battery configuration, supports 300-326 nickel-cadmium battery configuration

  Others

  Display

  LCD+LED, touch screen

  Operation temperature

  -10~50℃ (capacity derating above 40℃)

  Operating humidity

  0~95% no condensation

  Degree of protection

  Standard IP20 , Optional up to IP43

  Noise

  60~75dB (A) (depending on product capacity)

  Depth(mm)

  800

  Height(mm)

  1800 (standard IP20), height customizable

  Width(mm)

  The width range of different models is 600mm to 1700mm

  RS232/RS485

  Support Windows XP/7/8/10/Linux/Mac Support the China electric general/MODBUS/MEGATEC protocol

  Optional SNMP card

  Support SNMP administrators to remotely monitor and manage through web browsers

  ■ This product is a high leakage current device, which must be reliably grounded during use. ■ The equipment has high voltage, and non-professionals are strictly prohibited from opening the cabinet to operate. ■ Parameter changes will not be notified separately. ■ The above product dimensions are for reference only, and the actual product shall prevail.



•
