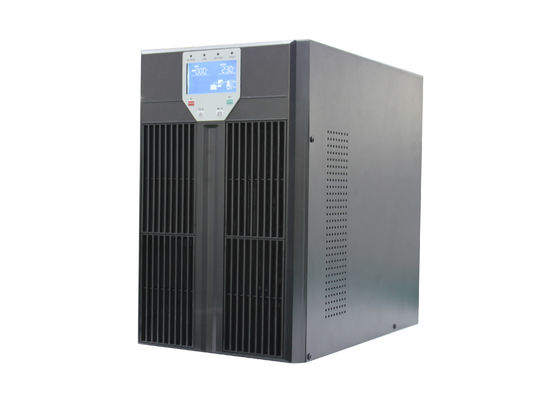

Lithium Iron Battery UPS 1-3kVA
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/OEM |
| Certification: | CE,ISO9001 |
| Model Number: | SLI 1K-3K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30pcs |
|---|---|
| Packaging Details: | 1PCS/1CTN,STANDARD FOR EXPORT |
| Supply Ability: | 100pcs/day |
|
Detail Information |
|||
| Type: | Online UPS | Battery: | Lithium-iron Battery |
|---|---|---|---|
| Voltage: | 110/120/127Vac | Warranty: | 18months After Shipment |
| Certificate: | ISO9001 | ||
| Highlight: | Lithium Iron Battery UPS 1kVA,Lithium Iron Battery UPS 2kVA,Lithium Iron Battery UPS 3kVA |
||
Product Description
Super-Li Online UPS1-3kVA with Lithium-iron battery
Introduction:Super-Li Online HF UPS 1-3K is
adopted highest level DSP controlled UPS with Lithium battery.Compared with traditional LEAD-ACID battery UPS, it has much longer lifespan and smaller size.
Perfect Application:
Network, data center, servers and workstations, control system,
communication system and office etc.
Features:
Online double conversion HF UPS technology with DSP control , excellent performance and comprehensive protections for load and UPS
Super Wide input range frequency, compatible with almost all kinds of generators
EPO function, emergency power off(optional)
Self-diagnosis when UPS start up
Cold start (DC power on)
Compact design and less noise
Lightening and Surge protection 1050J
Fan speed Varies according to load automatically
Standard RS232 interface,( USB ,dry contact,SNMP card optional )
Technical Specification:
| Model | SL1K | SL1KS | SL2K | SL2KS | SL3K | SL3KS | |
| Capacity | VA/W | 1kVA/900W | 2kVA/1.8kW | 3kVA/2.7kW | |||
| Topology | Double Conversion Online UPS | ||||||
| Phase | Single Phase Input Single Phase Output | ||||||
| Mains Input | Wiring | L/N+PE | |||||
| Voltage Range | 55~145VAC | ||||||
| Frequency Range | 40Hz-70Hz | ||||||
| Input Power Factor | ≥0.99 | ||||||
| AC Output | Wiring | L/N+PE | |||||
| Output Voltage | 100/110V/120/127VAC | ||||||
| Voltage Regulation | ±1% | ||||||
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) | ||||||
| Waveform | Sine Wave | ||||||
|
Distortion (THDV%) |
<2%(Linear Load) | ||||||
| <7%(None-Linear Load) | |||||||
| Over load capability |
1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
||||||
| Efficiency | AC/AC Mode | 86% | 87% | 89% | |||
| DC/AC Mode | 85% | 86% | 87% | ||||
|
Battery & Charger |
Rated Battery Voltage | 24VDC | 48VDC | ||||
| Battery Capacity | 200WH | External Battery | 400WH | External Battery | 600WH | External Battery | |
|
Backup Time @Full load |
>10Mins | >10Mins | >10Mins | ||||
| Charging Current |
Standards Model with Internal battery : 1A Long Backup Time Model with External battery :6A/10A(Option) |
||||||
| Charging Voltage | 28.2V(default) / Adjust according to battery request | 56.4V(default) / Adjust according to battery request | |||||
|
Charger Behavior & Protection |
CC. CV. Floating. Turn-Off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
||||||
| HMI | LCD Display | Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status | |||||
| Communication Interface | RS232/USB /MODBUS(option)/Dry Contact (option) | ||||||
| Ethernet Port (Option) | Support remote monitor the UPS via Smart Phone APP , Web page, PC Monitor Software , Support Server / NAS shutdown | ||||||
|
Operating Environment Endurance |
Temperature range | -10~50oC | |||||
| Relative Humidity | 0-98%(Non-condensing) | ||||||
| Acoustics Noise | <50dB @ 1 meters | ||||||
