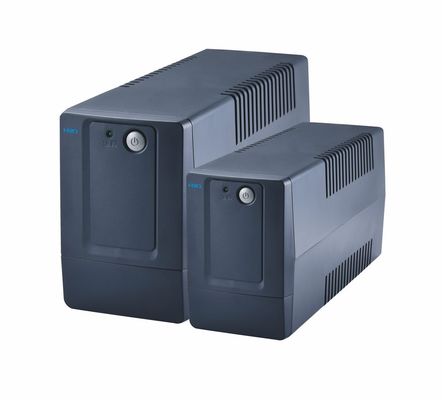

UPS Smart Power Series Line Interactive 400VA -800va
Product Details:
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | HRD/OEM |
| Certification: | CE,ISO9001 |
| Model Number: | 500VA-1200VA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Units |
|---|---|
| Price: | FOB USD 15~80 / Unit |
| Packaging Details: | Standard forr export. |
| Delivery Time: | 20days after got payment |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 Unit/Units per Week |
| warranty: | 18months after shipment,1% PCB with consigment |
|
Detail Information |
|||
| Highlight: | line interactive uninterruptible power supply,apc line interactive ups,off mode charging line interactive ups |
||
|---|---|---|---|
Product Description
Ideal Application: PC, POS system, small office etc.
SP UPS is a “Lite” UPS to protect your power issue on personal computers. It provides comprehensive protection in a small and economic package. Not only offering greater comprehensive power protection against surges and spikes, it also provides pure voltage with built-in AVR stabilizer. The UPS will continue providing clean and stable power to connected equipment while its embedded microprocessor controller guarantees high reliability, perfect for any home or small office application.
Main Features
- Compact size
- Excellent microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Off-mode charging
- Cold start function
- Generator compatible (option)
|
Model |
Smart 400 |
Smart 600 |
Smart 800 |
|
Capacity |
400 VA / 240 W |
600 VA / 360 W |
800 VA / 480 W |
|
INPUT |
|||
|
Voltage |
110/120 VAC or 220/230/240 VAC |
||
|
Voltage Range |
81-145 VAC / 162-290 VAC |
||
|
Frequency Range |
60/50 Hz (auto sensing) |
||
|
OUTPUT |
|||
| Voltage |
110/120 VAC or 220/230/240 VAC ± 10% |
||
|
Waveform (Batt. Mode) |
50 Hz or 60 Hz ± 1 Hz |
||
|
Transfer Time |
Typical 2-8 ms |
||
|
AC Voltage Regulation |
Simulated Sine Wave |
||
|
BATTERY |
|||
|
Battery Type & Number |
12 V/4.5 Ah x 1 |
12 V/7 Ah x 1 |
12 V/9 Ah x 1 |
|
Typical Recharge Time |
4 hours up to 90% capacity |
||
|
PROTECTION |
|||
|
Full Protection |
Overload, discharge, and overcharge protection |
||
|
INDICATORS |
|||
|
AC Mode |
Green lighting |
||
|
Battery Mode |
Green Flashing |
||
|
ALARM |
|||
|
Battery Mode |
Sounding every 10 seconds |
||
|
Low Battery |
Sounding every second |
||
|
Overload |
Sounding every 0.5 second |
||
|
Fault |
Continuously sounding |
||
|
PHYSICAL |
|||
|
Dimension, D x W x H (mm) |
279 x101 x142 |
||
|
Net Weight (kgs) |
3.55 |
4.2 |
4.9 |
|
ENVIRONMENT |
|||
|
Humidity |
0-90 % RH @ 0- 40°C (non-condensing) |
||
|
Noise Level |
Less than 40dB |
||
* Product specifications are subject to change without further notice
