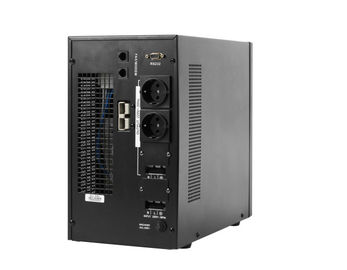

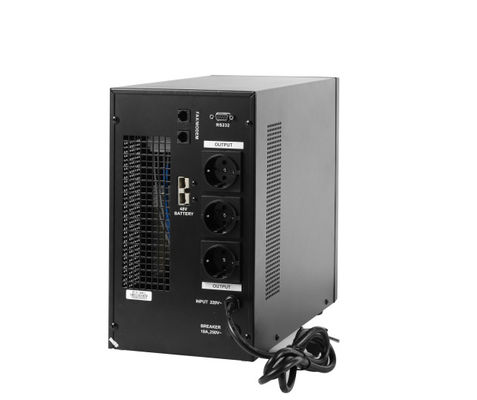

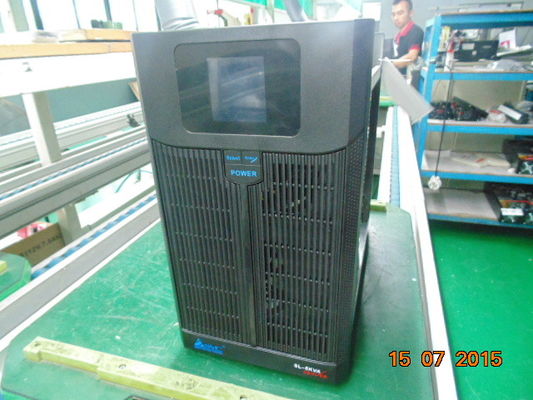

HC series Line interactive UPS 1-5kVA , Pure sine wave , for PC , ATM
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD or EOM |
| Certification: | CE, ISO9001:2008,ISO14001,ISO18001 |
| Model Number: | HC1K,HC2K,HC3K,HC5K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | 100-450USD/PCS; |
| Packaging Details: | Wooden case for standard export |
| Delivery Time: | 3 weeks after down payment |
| Supply Ability: | 5000 PCS/ Month |
|
Detail Information |
|||
| Capacity: | 1-5kVA | Output PF: | 0.7 |
|---|---|---|---|
| Interface: | Smart RS232, USB /SNMP Card Optional | Color: | Black |
| Warranty: | 18months After Shipment | ||
| Highlight: | line interactive uninterruptible power supply,apc line interactive ups,line interactive ups with AVR function |
||
Product Description
Perfect Application:
PC, OFFICE, Communication Switch system,ATM, POS system etc...
Main Features:
- Intelligent CPU control
- Wide input voltage
- LCD/LED display
- AVR function
- Mute function
- Pure sine wave output
- Compatible with generator
- Automatically transfer to battery mode when over-voltage,under-voltage
- Overload,short circuit protection
- Can connect to external battery,extending backup time
- Large charging current for big capacity battery
- Communication line protection,RJ11 /RJ45
- RS232 or USB, Intelligent monitoring function optional
III. Technical Parameter :
|
Model |
HC1K |
HC1.5K |
HC2K |
HC3K |
HC-1KL |
HC-1.5KL |
HC-2KL |
HC-3KL |
HC-5KL |
||||||||||
|
Rated capacity |
1000VA |
1500VA |
2000VA |
3000VA |
1000VA |
1500VA |
2000VA |
3000VA |
5000VA |
||||||||||
|
Rated power |
700w |
1050w |
1400w |
2100w |
700w |
1050w |
1400w |
2100w |
3500w |
||||||||||
|
Display |
|||||||||||||||||||
|
Indicator Panel |
LCD / LED Optional |
||||||||||||||||||
|
AC mode |
|||||||||||||||||||
|
Input voltage |
145-275Vac or 85-150Vac |
||||||||||||||||||
|
Input frequency |
48-54Hz,same as AC |
||||||||||||||||||
|
Output voltage |
200-240Vac or 100-132Vac |
||||||||||||||||||
|
Over-current protection |
Breaker |
||||||||||||||||||
|
Inverter mode |
|||||||||||||||||||
|
Output voltage |
220Vac ±5% or 120Vac+/-5% |
||||||||||||||||||
|
Output frequency |
50/60±0.5Hz |
||||||||||||||||||
|
Power factor |
0.7 |
||||||||||||||||||
|
Output wave form |
Pure sine wave |
||||||||||||||||||
|
Transfer time |
Typical 2-6ms,10ms max |
||||||||||||||||||
|
Overload capacity |
110% shutdown within 60sec/120% shut down within 5 sec |
||||||||||||||||||
|
Over-current protection |
System shut down automatically within 20ms |
||||||||||||||||||
|
Battery |
|||||||||||||||||||
|
Battery model |
Sealed maintenance-free lead-acid battery |
||||||||||||||||||
|
DC voltage |
DC 24V |
DC 48V |
DC 24V |
DC 48V |
|||||||||||||||
|
Standard configuration |
12/7AHX2 |
12/9AHX2 |
12/7AHX4 |
12/9AHX4 |
External battery |
||||||||||||||
|
Charging current |
2-5A |
6-15A |
|||||||||||||||||
|
Charging period |
6-8 hours recover to 90% capacity |
Depends on the battery connected |
|||||||||||||||||
|
Physical |
|||||||||||||||||||
|
Net weight(kg) |
23.8 |
25.6 |
30.2 |
34.5 |
19.8 |
21.4 |
26.6 |
32.7 |
41.5 |
||||||||||
|
Dimension(mm) |
405*145*220 |
455*195*330 |
405*145*220 |
455*195*330 |
|||||||||||||||
|
Environment |
|||||||||||||||||||
|
Environment |
Temperature 0 ℃-40℃,humidity 20%-90% |
||||||||||||||||||
|
Noise level |
≤40dB(1m) |
||||||||||||||||||
|
Altitude |
Altitude exceeds 1000m,full power can not reach |
||||||||||||||||||
|
Management |
|||||||||||||||||||
|
USB & RS232 |
Optional |
||||||||||||||||||
