Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/OEM/ODM |
| Certification: | ISO9001:2008,CE |
| Model Number: | NETManager HRD520/530 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 50-70USD/PCS; |
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 7days |
| Payment Terms: | TT |
| Supply Ability: | 10000pcs/month |
| Warranty: | 2 years |
|
Detail Information |
|||
| Model: | NETManager HRD520/530 | Brand: | HRD/OEM/ODM |
|---|---|---|---|
| Certificate: | ISO9001:2008,CE | Color: | Green |
| Item: | SNMP Card | Warranty: | 2 Years |
| High Light: | rack mount ups,ups replacement battery |
||
Product Description

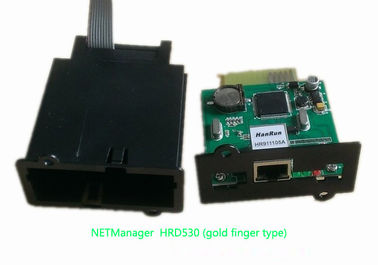

Netmanager HRD520 /530
Basic Web-based SNMP Card for UPS
Brief Introduction:
NETManager HRD520 /530 is a basic web-based SNMP card for UPS monitor and control via internet or LAN. Simple and friendly operation interface can satisfy users’ basic monitoring demands for UPS.
Note:1.First time to use it, please make sure internet or LAN well connected to the SNMP card’s net interface.
2.T he initial default IP address is 192.168.1.191. Account:admin Code:admin.
This product supports auto obtaining IP address. With SNMP-Link software, you can search and find the address under FINDER menu of the software.
3. This SNMP card can test and manage the UPS with SNMP-Link software
4.If forget the code, press the “default “button to reset the code to be “admin”.
Functions:
Remotely monitor the status of UPS, including voltage, current, bypass, utility power, etc;
Support network monitoring based on WEB browser;
Equip with HRD SNMP-Link software to achieve centralized monitoring and unified
management;
Equip with HRD SNMP-Link software to achieve shutdown protection for client-side;
Support different warning such AC failure, battery low, UPS failure and send email.
Support SMS warning, and telephone or mobile dialing (GSM module shall be purchased additionally)
Support most of the UPS brand’s communication protocol, such as,Powerware , Santak, Riello,Emerson..etc…
Specification:
|
Model |
NETManager HRD520 |
NETManager HRD530 |
|
Protocol Support |
SNMP |
|
|
connection design |
internal , cable connection |
Internal gold finger |
|
Network Support |
RJ45 10/100BaseT |
|
|
Supported MIB |
RFC1213, RFC1628, Voltronic MIB |
|
|
Supported Software |
SNMP-Link |
|
|
Supported OS |
Windows family, Liunx, MAC, and Solaris |
|
|
Power Input |
12VDC |
|
|
Power Consumption |
2 watt (max.) |
|
|
Operating Temperature |
0 ~ 40°C |
|
|
Operating Humidity |
0% ~ 95% |
|
|
PHYSICAL |
||
|
Dimension, D x W x H (mm) |
23 x 47 x 15 |
68*60*15 |
|
Net Weight (g) |
34.7 g |
58.0 |
Monitoring Interface:
