SNMP H6000 Online Lf Ups Marine Industrial 10-600kva
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/OEM |
| Certification: | CE |
| Model Number: | H6000-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 3000-100000USD |
| Packaging Details: | Standard for export |
| Delivery Time: | 5-6weeks after deposit |
|
Detail Information |
|||
| Capacity: | 10KVA-600KVA | Communication Interface: | RS232/RS485/SNMP |
|---|---|---|---|
| Cooling Method: | Forced Air Cooling | Display: | Touch Screen |
| Efficiency: | 94% | Frequency: | 50/60Hz |
| Input Voltage: | 220V/380V | Noise Level: | ≤60dB |
| Output Power Factor: | 0.9 | Output Voltage: | 220V/380V |
| Parallel: | Up To 8 Units | ||
| High Light: | snmp online lf ups,online lf ups 600kva,low frequency online ups 10kva |
||
Product Description

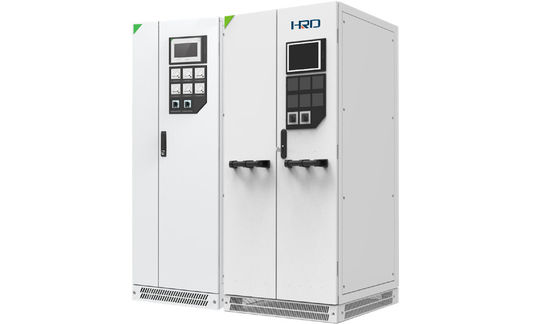

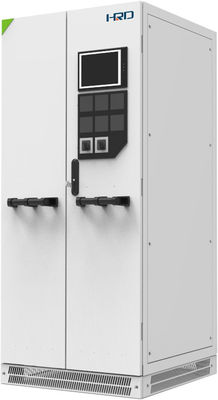

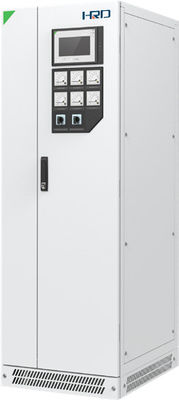

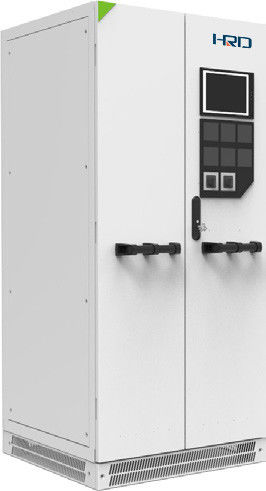

H6000-Marine series UPS 3:3phase 10-600kVA
It is a fully DSP controlled industrial marine UPS with super high-reliability, suitable for kinds of marine and offshore applications!
Professional marine environment structural design is designed according to the marine environment and complies with marine standard UPS main cabinet IP43 protection level .Patented battery management technology, effectively extending battery life Internal components are specially treated to resist salt-alkali corrosion and moisture resistance The bottom of the host can be designed for shock absorption The protective installation device is completely front-end maintained and can be placed on the wall. Friendly human-machine interface supports multi-language master-slave-free intelligent parallel technology, which can realize N+X redundant/increased parallel system. It is equipped with intelligent communication slots and supports a variety of communications.
Advantages:
※ Professional with patented marine environment structural design
※ All internal components are specially treated to resist salt-alkali
corrosion and moisture;
※Vibration-proof design to suitable on ship, full front
accessible maintenance design
※Top out ventilation system,can be installed against wall to save space
※Strong load capacity, 110% long time working to stand with kinds of
industrial loads with in-rush current ect.
※7-inch industrial-grade supports multi-language master-slave
touch screen parallel technology.
※ Double isolation with input and output isolation transformer
※Innovative intelligent parallel technologyup to 8 units, N+X redundant/expansion
(Based on our own patent parallel technology,to realize synchronization,
Load sharing and selected turning off;
※Supports a variety of communication devices, SNMP, MODUBUS, etc.
※ Input isolation transformer available(Optional)
Perfect Applications:
Computer network systems, centralized emergency power supply systems, comprehensive service systems, and central emergency lighting systems that protect ships or offshore platforms.
Online double conversion design, high reliability rectification and intelligent GBT inverter technology.
System specifications:
| Capacity range | 10-600kVA | |||||
| Input | Wiring connection | Three phase+Ground | ||||
| Nominal voltage | 380/400/415VAC | |||||
| Voltage range | 285VAC～498VAC | |||||
| Frequency range | 45-65Hz(auto-sense) | |||||
| Soft start | 5-600sec settable | |||||
| Power factor | 0.95(with input filter) | |||||
| Bypass | Nominal voltage | 380/400/415VAC (Three phase+Neutral+Ground) | ||||
| Frequency | 50/60Hz±10% | |||||
| Voltage range | ±10%,±15%,±20% settable | |||||
| Output | Nominal voltage | 380/400/415VAC (Three phase+Neutral+Ground) | ||||
| Voltageregulation | ±1%(balance load),±2%(100% unbalance load) | |||||
| Power factor | 0.9(1.0 optional) | |||||
| Dynamic response | ±5%(0～100% load transient) | |||||
| Distortion | ＜1%(100% linear load ),＜3%(100% non-linear load) | |||||
| Transient response | ＜5ms | |||||
| Sync. Range | ±2Hz(±0.5—±3Hz settable) | |||||
| Overload | 105% continue,110% 1Hr,125% 10min,150% 1min | |||||
| Frequency | ±0.05% | |||||
| Waveform | Pure sine wave | |||||
| Efficiency | Inverter mode | Up to 94% | ||||
| ECO mode | 98% | |||||
| Parallel | N+X | Up to 8 units | ||||
| Battery | Configurtation | 10-300kVA,384VDC;400kVA,408Vdc;500-600kVA,480Vdc (DC220V available) | ||||
| Display | Touch screen with meters | |||||
Physical | Model | Capacity | Dimension(mm) W*D*H | Weight (kgs) | ||
| H6000-3310M | 10kVA | 600*800*1800 | 210 | |||
| H6000-3320M | 20kVA | 600*800*1800 | 255 | |||
| H6000-3330M | 30kVA | 970*800*1800 | 420 | |||
| H6000-3340M | 40kVA | 970*800*1800 | 480 | |||
| H6000-3360M | 60kVA | 1300*800*1800 | 750 | |||
| H6000-3380M | 80kVA | 1300*800*1800 | 800 | |||
| H6000-33100M | 100kVA | 1800*860*1800 | 1350 | |||
| H6000-33120M | 120kVA | 1800*860*1800 | 1375 | |||
| H6000-33160M | 160kVA | 2000*860*1800 | 1650 | |||
| H6000-33200M | 200kVA | 2000*860*1800 | 1685 | |||
| H6000-33300M | 300kVA | 2400*860*1800 | 2850 | |||
| H6000-33400M | 400kVA | 2400*860*1800 | 3150 | |||
| H6000-33500M | 500kVA | 3000*1000*1800 | 3450 | |||
| H6000-33600M | 600kVA | 3000*1000*1800 | 3880 | |||
Note: Customized type can made according to requirement.
