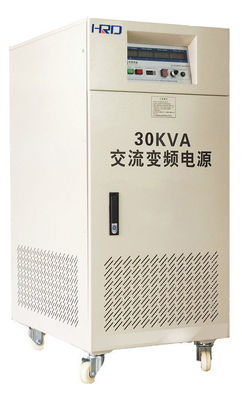

Frequency Converter Power supply soucre 2-400Kva,
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/OEM |
| Certification: | CE,ISO9001 |
| Model Number: | 8310,8315...83200,83300,83400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | 1000-18000USD |
| Packaging Details: | Standard for Export |
| Delivery Time: | 15-20days |
| Payment Terms: | TT or LC at sight |
| Supply Ability: | 120pcs/week |
| Price term: | FOBSHENZHEN |
|
Detail Information |
|||
| Color: | Gray | Warranty: | 18months Afert Shipment |
|---|---|---|---|
| Isolation: | Input And Output Full Isolated | CPU: | 64-bit Microprocessor CPU |
| Capacity: | 2-400kVA | ||
| High Light: | Frequency Convertor,frequency inverter,convertor |
||
Product Description
HRD 830 series Frequency Converter Power supply soucre 1-400Kva
DSP controlled, excellent perfance
Perfect Application
Aviation, Lab, Appliance Manufacturer, Medical Treatment, It Industry, Motor Manufacturer, scientific Research unit
Features & Benefits
Adopted 64-bit microprocessor CPU technology with excellent performance
50Hz 60Hz or 400Hz input frequency.
Output voltage (selectable).
40Hz to 499.9Hz output frequency range.
Programmable key lock setting output frequency.
Easy-to-read LEDs display output voltage, frequency, Ampere, Wattage & Power factor.
Stable true sine wave output.
Self Test at power on.
Galvanic isolation. No Harmonic Distortion.
PWM Technology minimizes the volume and weight.
IGBT technology increases the efficiency and reliability, eliminates the noise.
Capable of generating all kinds of frequencies used in all countries.
300% overload capability.
Breaker/alarm for overload, over temperature, and short circuit protection.
Suitable for use with RC, RL and non-linear loads.
Technical Specifications
|
Phase |
Single |
Three |
|
Model |
2KVA-45KVA |
3KVA-150KVA |
|
Type |
IGBT/ Pulse Width Modulation |
|
|
Input |
||
|
Voltage(Selectable) |
1 phase 2wire:110V(2 to 5kVA)/220V/230V/240V±10% |
|
|
3phase 4wire:wye type 190/110V 200/115V 220/128V 230/132V 240/139V±10% |
||
|
3phase 4wire:wye type 380/220V 400/230V 440/254V 4600/265V 480/277V±10% |
||
|
3phase 4wire: Delta type 220;230;240;380;400;415;440V±10% |
||
|
FREQUENCY(Selectable) |
47Hz~63Hz or 400Hz±5% |
|
|
Output |
||
|
Voltage |
110V Setting (Low Range): 0~150V |
(Optional:0~520V) |
|
220V Setting (High Range): 0~300V |
||
|
Votage Regulation |
≦±1% |
|
|
Frequency |
40Hz to 499.9Hz(Programmable) |
|
|
Frequency Stability |
≦±0.01% |
|
|
Distortion(THD) |
True Sine Wave, ±2% |
|
|
Frequency Meter |
4 LED Digitals, Res. 0.1Hz / Step |
|
|
Voltmeter |
4 LED Digitals, Res . 0.1V |
|
|
Amperemeter |
4 LED Digitals, Res . 0.1A |
|
|
Wattmeter |
4 LED Digitals, Res. 0.1W |
|
|
Protection |
Over-voltage, over-current , over-temperature, overload, short circuit warning,input under voltage and other multiple protection |
|
|
Operating Environment |
||
|
AMB.TEMP |
-10~40℃ |
|
|
HUMIDITY |
0~90% (Non-condensing) |
|
