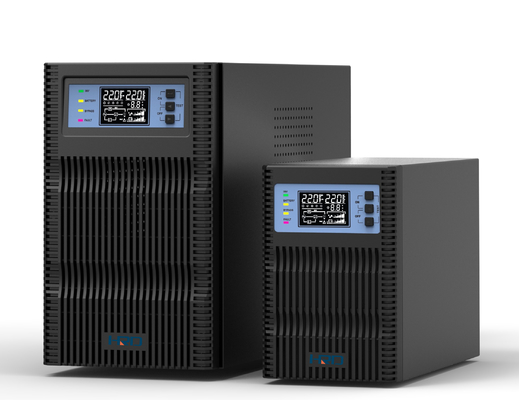

PCM Series Online HF UPS 1-10kVA With 1.0PF
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HRD or OEM |
| Certification: | CE |
| Model Number: | PCM1K,PCM2K,PCM3K,PCM6K,PCM10K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | 300-690USD/PCS |
| Packaging Details: | 1PCS/1CTN,STANDARD FOR EXPORT |
| Delivery Time: | 3-4 weeks after down payment |
| Supply Ability: | 500pcs/day |
|
Detail Information |
|||
| Voltage: | 220/230/240Vac | Frequency: | 50Hz/60Hz |
|---|---|---|---|
| Charger: | 1-12A Adjustable | Efficency: | 95% |
| Interface: | USB+RS232,EPO | SNMP CARD: | Optional |
| Warranty: | 18months After Shipment | Color: | BLACK |
| Certificate: | CE | Display: | LCD/LED |
| Communication Interface: | RS232/RS485/SNMP/Modbus | Cooling Method: | Air |
| Efficiency: | ≥95% | Input Frequency: | 50/60Hz |
| Input Voltage: | 220V | Output Frequency: | 50/60Hz |
| Output Voltage: | 220V/110VAC | Output Waveform: | Pure Sine Wave |
| Power Capacity: | 1-10KVA | Product Name: | Online High Frequency UPS |
| Protection Level: | IP20/IP21 | Transfer Time: | 0ms |
| Highlight: | PCM Series Online High Frequency UPS,Online HF UPS With 1.0PF,Online HF UPS 10kVA |
||
Product Description
Power Castle MAX Series 1-10kVA,1.0PF
- DSP control, with excellent performance and comprehensive protections
2. Output power factor 1.0, offering more stronger load capability
3. Advanced 3 level inverter technology, 95% efficiency,saving electricity cost
4.Ultra Wide Input: 120V-300Vac , well compatible with Gen-set
5. PCB with conformal coating for critical environment
6. EPO
(emergency power off) and ECO function
7. Compact design to save installation space
8. Configurable output:220/230Vac with LCD screen
9. AC and cold start function
10.Default RS232& USB and EPO interface , SNMP card (optional)
11. IBM charger 1-12A settable,extending battery lifespan and satisfying fast charging requirement
12. Standard model with external battery interface for extending back up time
13. Battery test and EOD voltage settable on LCD
14. Simple design for fast and easy maintenance
15. Intelligent fan running, varying according to load and temperature
16. Default battery breaker for safety and convenience
17. Battery reverse connection protection and feedback protection
17. Manual bypass for 6-10kVA (optional)
| Model | PCM1KS | PCM1KL | PCM2KS | PCM2KL | PCM2KL | PCM3KL | PCM6KS | PCM6KL | PCM10KS | PCM10KL | ||||||||
| Phase | 1phase 2wire+PE | |||||||||||||||||
| Capacity | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | 6kVA/6kW |
10kVA/10kW
|
|||||||||||||
| Input | ||||||||||||||||||
| Nominal Input Voltage | 220/230/240VAC | |||||||||||||||||
| Input Voltage Range | 110V~300V Half load 176V~300V Full Load | |||||||||||||||||
| Input Frequency Range | 50/60Hz+/-10% | |||||||||||||||||
| Input Power Factor | 0.99 @Full load | |||||||||||||||||
| THDi | ≤3%(linear load),≤5%(non-linear load) | |||||||||||||||||
| Output | ||||||||||||||||||
| Output Voltage | 230V(220/240/208V Selectable) | |||||||||||||||||
| Output Voltage Regulation | 1% | |||||||||||||||||
| Output Frequency (Sync.Mode) | 46Hz~54Hz/56Hz~64Hz | |||||||||||||||||
| Output Frequency (Bat.Mode) | 50Hz+/-0.05Hz 60Hz+/-0.05Hz | |||||||||||||||||
| Output THDv% | ≤2% linear Load, ≤4% Non-linear Load | |||||||||||||||||
| Overload |
AC Mode: 1mins@105%-125%,30S 125%-150%,
|
ACMode: 10mins@105%-125%,30S 125%-150%, BatteryMode:1mins@105%-125%,10S 125%-150% |
||||||||||||||||
| Output Waveform | Pure Sinewave | |||||||||||||||||
| Transfer Time | ||||||||||||||||||
| Line mode ↔ Bat Mode | 0ms | |||||||||||||||||
| Inv ↔ Bypass Mode | <4ms | |||||||||||||||||
| Efficiency | ||||||||||||||||||
| AC-->AC | Max.93% | Max.95% | ||||||||||||||||
| ECO | 98% | |||||||||||||||||
| Battery Mode | Max.94.5% | |||||||||||||||||
| Battery & Charger | ||||||||||||||||||
| Battery Voltage/Capacity |
Standard model:2 x 12V/9AHA Long run model:36V external battery |
Standard model:6 x 12V/7AH Long run model:72V external battery |
Standard model:6 x 12V/9AH Long run model:96V external battery |
Standard model:16 x 12V/7AHA or 9AH Long run model:192V/240V external battery* |
||||||||||||||
| Battery Type | Valve Regulated Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery | |||||||||||||||||
| Recharge time |
Standard model:7hours to above 90% Long run model:Subject to external battery configuration |
|||||||||||||||||
| Max recharge current |
Standard model:1-2A Long run model:1-12A settable |
|||||||||||||||||
| Floating charge Voltage | 27.3/41V | 82V | 82/109V | 218.4V/273V | ||||||||||||||
| Display | ||||||||||||||||||
| Display | LED/LCD(option) | |||||||||||||||||
| Buzzer Alarm | Bat.Mode/Bat.Low/OverLoad/Fault | |||||||||||||||||
| Communication Port | RS232+USB+EPO,SNMP(option) | |||||||||||||||||
| Physical | ||||||||||||||||||
| Form factor | Tower / Rack | |||||||||||||||||
| Tower(W*H*D)MM | 145*225*285 | 145*225*395 |
Standard model:192*352*450 Long run model:200*450*352 |
Standard model:200*460*800 Long run model:200*450*352 |
||||||||||||||
| Rack | 438mm(w) x 88mm(2U) x 500mm(D) | |||||||||||||||||
| Weight | 18.6/9.0kg | 19/10kg | 25/11kg |
6KVA:57/18kg 10kVA:67.5/20kg |
||||||||||||||
| Environment | ||||||||||||||||||
| Humidity | 5～97% (Non condensing) | |||||||||||||||||
| Operating Ambient temperature | 0~40℃ | |||||||||||||||||
| *Specification is subject to change without further notice; | ||||||||||||||||||
Technical Specification:
Note: “S” refers to “Standard model”,”L” refers to “Long-run model”All specifications subject to change without further notice; customized specifications are acceptable
