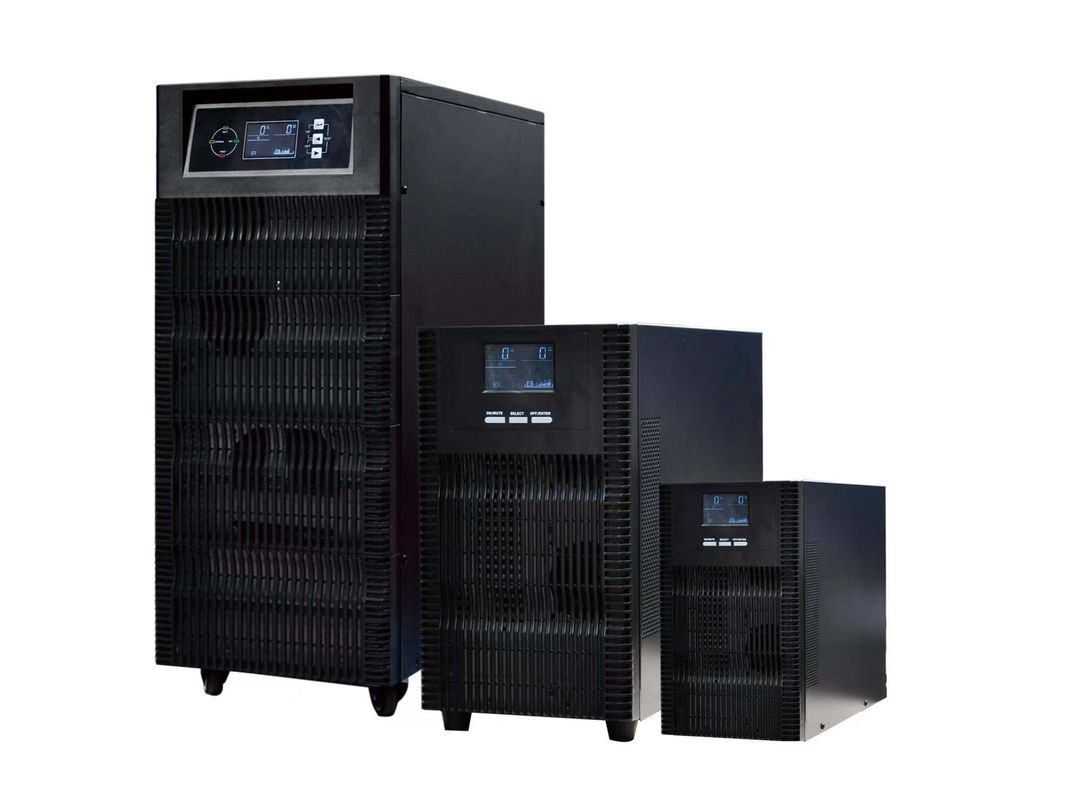

Online High Frequency Uninterruptible Power Supply 6KVA 220V Input Voltage
Product Details:
| Place of Origin: | China |
| Brand Name: | HRD/OEM |
| Certification: | CE |
| Model Number: | HQ I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 4 weeks |
| Payment Terms: | D/P, T/T, Western Union, L/C |
|
Detail Information |
|||
| Capacity: | 6KVA | KW: | 6KW |
|---|---|---|---|
| Input Mode: | 1P+N+PE | Power Factor: | >0.99 |
| THDI: | <10% | Input Voltage Range: | -20%~+25% |
| Highlight: | high frequency ups,online power supply,Online High Frequency Uninterruptible Power Supply |
||
Product Description
Power Castle MAX Series 1-10kVA,1.0PF
- DSP control, with excellent performance and comprehensive protections
2. Output PF 1.0, offering more stronger load capability
3. Advanced 3 level inverter technology, 95% efficiency,saving electricity cost
4.Ultra Wide Input: 110V-300Vac , well compatible with Gen-set
5. PCB with conformal coating for critical environment
6. EPO
(emergency power off) and ECO function
7. Compact design to save installation space
8. Configurable output:220/230Vac with LCD screen
9. AC and cold start function
10.Default RS232& USB and EPO interface , SNMP card (Optional)
11. IBM charger 1-12A settable,extending battery lifespan and satisfying fast charging requirement
12. Standard model with external battery interface for extending back up time
13. Battery test and EOD voltage settable on LCD
14. Simple design for fast and easy maintenance
15. Intelligent fan running, varying according to load and temperature
16. Default battery breaker for safety and convenience
17.Advanced parallel up to 4units( Optional)
18. Manual bypass for 6-10kVA (Optional)
Technical Specifications:
| Model | PCM1KS | PCM1KL | PCM2KS | PCM2KL | PCM2KL | PCM3KL | PCM6KS | PCM6KL | PCM10KS | PCM10KL | |||||||
| Phase | 1phase ,2wire+PE | ||||||||||||||||
| Capacity | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | 6kVA/6kW | 10kVA/10kW | ||||||||||||
| Input | |||||||||||||||||
| Nominal Input Voltage | 220/230/240VAC | ||||||||||||||||
| Input Voltage Range | 110V~300V @Half load ,176V~300V@ Full Load | ||||||||||||||||
| Input Frequency Range | 50/60Hz+/-10% | ||||||||||||||||
| Input Power Factor | 0.99 @Full load | ||||||||||||||||
| THDi | ≤3%(linear load),≤5%(non-linear load) | ||||||||||||||||
| Output | |||||||||||||||||
| Output Voltage | 230V(220/240/208V Selectable) | ||||||||||||||||
| Output Voltage Regulation | 1% | ||||||||||||||||
| Output Frequency (Sync.Mode) | 46Hz~54Hz/56Hz~64Hz | ||||||||||||||||
| Output Frequency (Bat.Mode) | 50Hz+/-0.05Hz 60Hz+/-0.05Hz | ||||||||||||||||
| Output THDv% | ≤2% linear Load, ≤4% Non-linear Load | ||||||||||||||||
| Overload |
AC Mode: 1mins@105%-125%,30S 125%-150%,
|
ACMode: 10mins@105%-125%,30S 125%-150%, BatteryMode:1mins@105%-125%,10S 125%-150% |
|||||||||||||||
| Output Waveform | Pure Sinewave | ||||||||||||||||
| Transfer Time | |||||||||||||||||
| Line mode ↔ Bat Mode | 0ms | ||||||||||||||||
| Inv ↔ Bypass Mode | <4ms | ||||||||||||||||
| Efficiency | |||||||||||||||||
| AC-->AC | Max.94% | Max.95% | |||||||||||||||
| ECO | 98% | ||||||||||||||||
| Battery Mode | Max.94.5% | ||||||||||||||||
| Battery & Charger | |||||||||||||||||
| Battery Voltage/Capacity |
Standard model:2 x 12V/9AH Long run model:36V external battery |
Standard model:6 x 12V/7AH Long run model:72V external battery |
Standard model:6 x 12V/9AH Long run model:96V external battery |
Standard model:16 x 12V/7AHA or 9AH Long run model:192V/240V external battery* |
|||||||||||||
| Battery Type | Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery | ||||||||||||||||
| Recharge time |
Standard model:7hours to above 90% Long run model:Subject to external battery configuration |
||||||||||||||||
| Max recharge current |
Standard model:1-2A Long run model:1-12A settable |
||||||||||||||||
| Floating charge Voltage | 27.3/41V | 82V | 82/109V | 218.4V/273V | |||||||||||||
| Display | |||||||||||||||||
| Display | LED/LCD(option) | ||||||||||||||||
| Buzzer Alarm | Bat.Mode/Bat.Low/OverLoad/Fault | ||||||||||||||||
| Communication Port | RS232+USB+EPO,SNMP(option) | ||||||||||||||||
| Physical | |||||||||||||||||
| Form factor | Tower / Rack | ||||||||||||||||
| Tower(W*H*D)MM | 145*225*285 | 145*225*395 |
Standard model:192*352*450 Long run model:200*450*352 |
Standard model:200*460*800 Long run model:200*450*352 |
|||||||||||||
| Rack | 438mm(w) x 88mm(2U) x 500mm(D) | ||||||||||||||||
| Weight | 18.6/9.0kg | 19/10kg | 25/11kg |
6KVA:57/18kg 10kVA:67.5/20kg |
|||||||||||||
| Environment | |||||||||||||||||
| Humidity | 5～97% (Non condensing) | ||||||||||||||||
| Operating Ambient temperature | 0~40℃ | ||||||||||||||||
| Noise | Less than 55dB@1M | ||||||||||||||||
| *Specification is subject to change without further notice; | |||||||||||||||||
Note: “S” refers to “Standard model”,”L” refers to “Long-run model” Customized specifications are available.All specifications subject to change without further notice;
