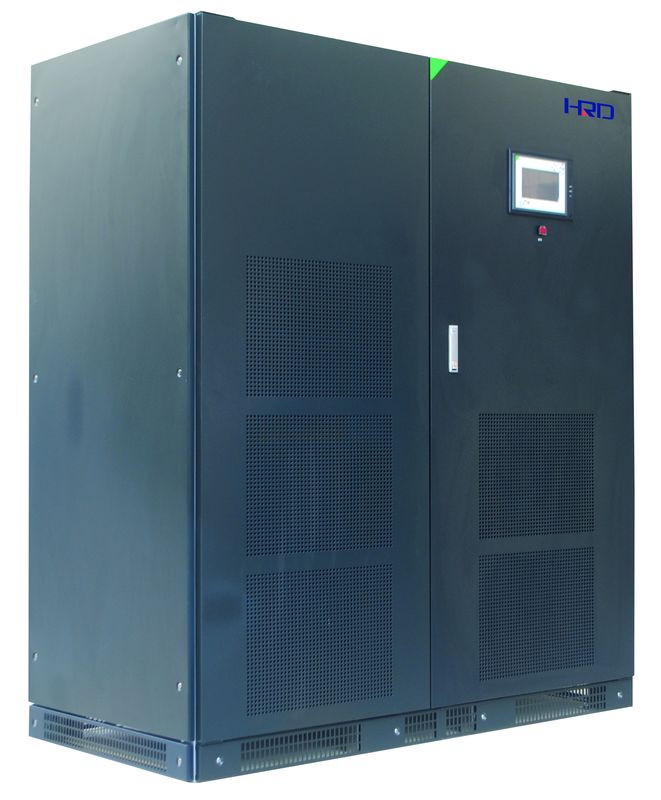

PE II Series Online LF UPS Output PF0.9 Uninterruptable Power Supply 500-800kVA
Product Details:
Place of Origin: | Shenzhen China |
Brand Name: | HRD |
Certification: | CE, ISO9001:2008 |
Model Number: | PEII33500, PEII33600,PEII33800 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | USD50000USD-75000USD/PCS |
Packaging Details: | Wooden case for standard export |
Delivery Time: | 4 weeks after down payment |
Detail Information |
|||
CAPACITY: | 500-800kVA | Warranty: | 3 Yearss |
---|---|---|---|
Highlight: | 3 kva online ups,online ups system,online lf uninterruptable power supply |
Product Description
PE II Series Online LF UPS 80-800kVA UPS,0.9PF
PE II series is a high-end design large capacity UPS up to 800kVA,with double conversion topology. With more than 20nos innovative patents, its distinguished features are :Stable, Smart, Simple, energy Saving.
This high-end UPS is not only environment friendly but also with high efficiency and high reliability, providing the lowest TCO (Total Cost of Ownership) for users.
Fully digital controlled, armed with several DSP, MCU, CPLD, it can parallel up to 8 units for redundancy or expanding capacity.
Super reliability and excellent performance based on innovational solution,it definitely ensures your business away from any power problem!
Perfect Application:
Large Datacenters, Server rooms, Finance,Telecommunications, Insurance, Education, Government, Large stadium, Theater, Harbor, Traffic facilities, Production industrial areas etc.
FEATURES:
1.Leading technology
- Advanced SCR rectifier and IGBT inverter control technology, true online double conversion topology, three phase in three phase out, 380/400/415V, 50/60Hz compatible.
- Super wide input voltage/frequency range, adapt to harsh utility environments.
- Higher overload capacity and output short-tolerant ability.
- Input power factor up to 0.95 with input filter options, input THDi<4.5%.
- Output power factor 0.9, brings 12.5% more power than traditional UPS.
- Intelligent self diagnosis, mass memory to record operation log.
- Super long MTBF and short MTTR.
- Intelligent parallel and parallel ECO Mode.
2.Reliability
- Fully digital control with the most advanced DSP processor, higher system reliability.
- Redundant fan design, enhance system reliability.
- Build-in output isolation transformer, eliminate neutral to ground drifting voltage, and isolate load harmonic current influence to inverter.
- More than 90% components are from world well-known tier 1 suppliers, 100% IQC inspected. All final products will pass internal test procedure and 24 Hours burn-in before delivery, increase the system reliability.
3.Abundant options
- Build-in various communication connectors (RS232, RS485, AS400, EPO etc).
- Optional cards available: SNMP, battery management kit, lighting proof module, dust proof filter etc.
4.Operation
- Front side maintenance, top or bottom wiring connection, with protection equipments.
- Friendly human machine interface, easy operation with large LCD panel and keyboards.
Technical features:
- Multi DSP,CPLD,MCU digital control, higher consistency and reliability.
- Output power factor 0.9, delivers 12.5% more power than tradition 0.8 UPS.
- Wide input voltage/frequency range, adapt to harsh utility power.
- Non master/slaver digital intelligent parallel control, self-load share algorithm, parallel up to 8 units.
- Single Mode ECO and parallel ECO
- Super overload capacity and output short-tolerant ability, maximize protect load even under abnormal conditions.
- Advanced intelligent battery management, self diagnose technology, extend battery life.
- Redundant control power, increase even higher system reliability.
- Independent cooling system, multi-protection design, ensures high reliability even under harsh environments.
- 6-inch LCD display, friendly interface, easy to operate.
- Environment friendly green UPS, with various harmonic restrain technology.
- Double conversion online topology, with output isolation transformer, all-round protect load from utility or generator problems.
Specification:
Capacity |
500kVA/450kW |
600kVA/540kW |
800kVA/720kW |
||
12P |
12P |
12P |
|||
|
|||||
Input |
Wiring connection |
Three phase + Ground |
|||
Nominal Voltage |
380/400/415Vac |
||||
Voltage frequency |
285Vac~498Vac |
||||
Frequency |
50/60 Hz |
||||
Frequency range |
45-65 Hz |
||||
Soft start |
5-600 sec settable |
||||
Power factor |
0.95 (with input filter) |
||||
|
|||||
Bypass |
Nominal voltage |
380/400/415Vac (Three phase + Neutral + Ground) |
|||
Frequency |
50/60Hz±10% |
||||
Voltage range |
±10%, ±15%, ±20% settable |
||||
|
|||||
Output |
Nominal voltage |
380/400/415Vac (Three phase + Neutral + Ground) |
|||
Voltage regulation |
±1% (balance load), ±2% (100% unbalance load) |
||||
Power factor |
0.9 |
||||
Dynamic response |
±5% (0~100% load transient) |
||||
Distortion |
<1% (100% linear load), <3% (100% non-linear load) |
||||
Transient response |
<5ms |
||||
Sync. range |
±2Hz (±0.5~±3Hz settable) |
||||
Overload |
105% continue,110% 1Hr,125% 10min,150% 1min |
||||
Frequency |
±0.5% |
||||
Waveform |
Pure sine wave |
||||
|
|||||
Efficiency |
Inverter mode |
Up to 94% |
|||
ECO mode |
98% |
||||
|
|||||
Parallel |
N+X |
Max. 8 units |
|||
|
|||||
Battery |
Configuration |
12V,40 pieces default(38~42pieces settable) |
|||
|
|||||
Display |
LCD+LED |
||||
|
|||||
Physical |
Dimension (mm) |
Depth |
855 |
||
Width |
2700 |
3000 |
3800 |
||
Height |
1900 |
||||
Weight(KG) |
3000 |
3500 |
4100 |
||
|
|||||
Environment |
Temperature |
0~40℃ |
|||
Humidity |
0~95% non-condensing |
||||
Noise (1 m) |
71dB |
73dB |
76dB |
||
|
|||||
Connective |
RS-232/(USB option) |
Support windows2000/XP/7/Linux/Unix/Mac |
|||
SNMP |
Support remote control through web browser |
||||
|
|||||
Standard |
Safety |
IEC60950-1,IEC62040-1-1 |
|||
EMC |
IEC62040-2,IEC62040-3 |
Note: Without other notice if product parameters changed.
Can be customized according to customer requirement!
