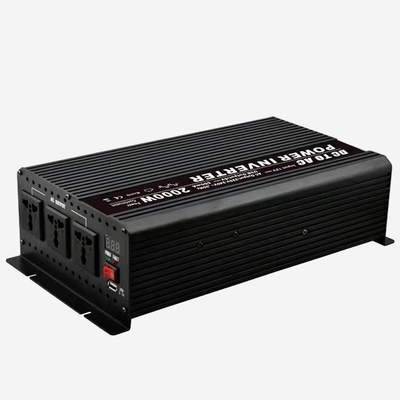

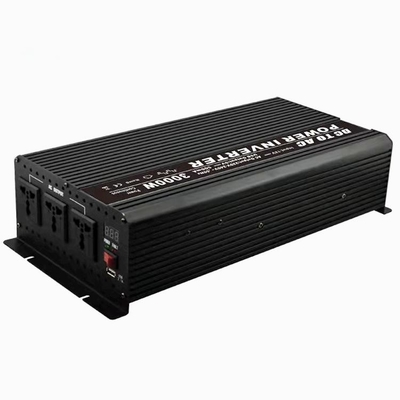

THA Series POWER INVERTER 150W-3000W
Product Details:
| Place of Origin: | China |
| Brand Name: | HRD |
| Certification: | CE |
| Model Number: | THA 150,300,500,800,1000,1200,1500,2000,3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | 50-200USD/PCS; |
|
Detail Information |
|||
| Applications: | Camera, Fan, Hair Dryer, Electric Light, Electric Kettle, Electric Shaver, TV Set, CD Player, Mobile Phone, Notebook, Portable Device, In-vehicle And Etc. | Output Voltage: | 220VAC±5%,220~230V |
|---|---|---|---|
| Input Voltage: | 12V,12V/24V/48V | Output Waveform: | Modified Sine Wave |
| Protection: | Complete Protection Design | Topology: | Transformerless |
| Display: | LED | ||
| High Light: | inverter power supply,power supply inverter,power inverter with Led display |
||
Product Description
THA Series Power Inverter 150-3000VA
This power inverter is modified sine wave inverter which converts DC power to AC power. Full power inverter with strong protections. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons.
Features:
● Protections: low-voltage, over voltage, over load, over temperature.
● Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
● Advanced automatic constant circuit, prolong battery life.
● Perfect protection against battery under voltage, overload, short-circuit.
● Microprocessor control guarantees high reliability.
● Can work with inductive load such as air conditioner, motor door and so on.
● The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.
● Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.
● With 100% full power, efficiency reaching up to 85%.
● Isolated output.
● Soft start.
● USB charging port +5VDC, 500mA.
Perfect Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
Specifications:
| Model | THA150 | THB150 | THC150 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 12.5A | 6.3A | 3.2A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 150W | ||
| Peak Power | 300W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 1.3A/0.68A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 487g | ||
| Gross Weight | 628g | ||
| Size | 125*102*58 mm | ||
| Carton | 530*310*480 mm 40Pieces/Carton | ||
| Model | THA200 | THB200 | THC200 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 16A | 8.3A | 4.1A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 200W | ||
| Peak Power | 400W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 1.8A/0.9A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 487g | ||
| Gross Weight | 628g | ||
| Size | 125*102*58mm | ||
| Carton | 530*310*480mm 40Pieces/Carton | ||
| Model | THA300 | THB300 | THC300 | ||
| Input Voltage | DC 12V | DC 24V | DC 48V | ||
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | ||
| Input Current | 25A | 12.5A | 6.3A | ||
| Conversion Efficiency | >85% | ||||
| Continuous Power | 300W | ||||
| Peak Power | 600W | ||||
| Output Voltage | AC 100V-120V/210-240V | ||||
| Output Current | 2.7A/1.3A | ||||
| Output Frequency | 50Hz-60Hz | ||||
| Wave Form | Modified Sine Wave | ||||
| USB Output Voltage | DC 5V(800mA) | ||||
| Thermal Protection | ≤70℃ | ||||
| Operating Temperature | 0℃～40℃ | ||||
| Cooling | By Intelligent Fan | ||||
| Under Voltage | 10±1V | 20±1 | 40±1 | ||
| Over Voltage | 15±1V | 30±1 | 60±1 | ||
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||||
| Overvoltage: LED red light, restart recovery | |||||
| Overload,high temperature: LED red light, restart recovery | |||||
| Reverse connect: Blown fuse | |||||
| Net Weight | 700g | ||||
| Gross Weight | 900g | ||||
| Size | 185*102*58mm | ||||
| Carton | 535*435*310mm 20Pieces/Carton | ||||
| Model | THA400 | THB400 | THC400 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 33A | 16A | 8.3A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 400W | ||
| Peak Power | 800W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 3.6A/1.8A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 700g | ||
| Gross Weight | 900g | ||
| Size | 185*102*58mm | ||
| Carton | 535*435*310mm 20Pieces/Carton | ||
| Model | THA500 | THB500 | THC500 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 42A | 21A | 11A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 500W | ||
| Peak Power | 1000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 4.5A/2.2A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 900g | ||
| Gross Weight | 1120g | ||
| Size | 235*102*58mm | ||
| Carton | 535*435*310mm 20Pieces/Carton | ||
| Model | THA600 | THB600 | THC600 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 50A | 25A | 13A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 600W | ||
| Peak Power | 1200W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 5.4A/2.7A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 900g | ||
| Gross Weight | 1120g | ||
| Size | 235*102*58mm | ||
| Carton | 535*435*310mm 20Pieces/Carton | ||
| Model | THA800 | THB800 | THC800 | |
| Input Voltage | DC 12V | DC 24V | DC 48V | |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | |
| Input Current | 83A | 42A | 22A | |
| Conversion Efficiency | >85% | |||
| Continuous Power | 800W | |||
| Peak Power | 1600W | |||
| Output Voltage | AC 100V-120V/210-240V | |||
| Output Current | 9A/4.5A | |||
| Output Frequency | 50Hz-60Hz | |||
| Wave Form | Modified Sine Wave | |||
| USB Output Voltage | DC 5V(800mA) | |||
| Thermal Protection | ≤70℃ | |||
| Operating Temperature | 0℃～40℃ | |||
| Cooling | By Intelligent Fan | |||
| Under Voltage | 10±1V | 20±1 | 40±1 | |
| Over Voltage | 15±1V | 30±1 | 60±1 | |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | |||
| Overvoltage: LED red light, restart recovery | ||||
| Overload,high temperature: LED red light, restart recovery | ||||
| Reverse connect: Blown fuse | ||||
| Net Weight | 1780g | |||
| Gross Weight | 2270g | |||
| Size | 265*130*65mm | |||
| Carton | 560*360*370mm 10Pieces/Carton | |||
| Model | THA1000 | THB1000 | THC1000 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 83A | 42A | 22A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 1000W | ||
| Peak Power | 2000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 9A/4.5A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 1780g | ||
| Gross Weight | 2270g | ||
| Size | 265*130*65mm | ||
| Carton | 560*360*370mm 10Pieces/Carton | ||
| Model | THA1200 | THB1200 | THC1200 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 100A | 50A | 25A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 1200W | ||
| Peak Power | 2400W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 11A/5.5A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 1940g | ||
| Gross Weight | 2444g | ||
| Size | 295*130*65mm | ||
| Carton | 530*310*430mm 10Piece/Carton | ||
| Model | THA1500 | THB1500 | THC1500 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 125A | 63A | 32A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 1500W | ||
| Peak Power | 3000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 13A/6.8A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 1940g | ||
| Gross Weight | 2444g | ||
| Size | 295*130*65mm | ||
| Carton | 530*310*430mm 10Piece/Carton | ||
| Model | THA2000 | THB2000 | THC2000 | ||
| Input Voltage | DC 12V | DC 24V | DC 48V | ||
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | ||
| Input Current | 167A | 83A | 42A | ||
| Conversion Efficiency | >85% | ||||
| Continuous Power | 2000W | ||||
| Peak Power | 4000W | ||||
| Output Voltage | AC 100V-120V/210-240V | ||||
| Output Current | 18A/9A | ||||
| Output Frequency | 50Hz-60Hz | ||||
| Wave Form | Modified Sine Wave | ||||
| USB Output Voltage | DC 5V(800mA) | ||||
| Thermal Protection | ≤70℃ | ||||
| Operating Temperature | 0℃～40℃ | ||||
| Cooling | By Intelligent Fan | ||||
| Under Voltage | 10±1V | 20±1 | 40±1 | ||
| Over Voltage | 15±1V | 30±1 | 60±1 | ||
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||||
| Overvoltage: LED red light, restart recovery | |||||
| Overload,high temperature: LED red light, restart recovery | |||||
| Reverse connect: Blown fuse | |||||
| Net Weight | 4500g | ||||
| Gross Weight | 5000g | ||||
| Size | 390*200*100mm | ||||
| Carton | 510*485*550mm 4Pieces/Carton | ||||
| Model | THA3000 | THB3000 | THC3000 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 250A | 125A | 63A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 3000W | ||
| Peak Power | 6000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 27A/14A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 5000g | ||
| Gross Weight | 6000g | ||
| Size | 430*200*100mm | ||
| Carton | 510*485*550mm 4Pieces/Carton | ||
| Model | THA4000 | THB4000 | THC4000 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 333A | 166A | 183A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 4000W | ||
| Peak Power | 8000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 36A/18A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 7500g | ||
| Gross Weight | 8000g | ||
| Size | 480*200*100mm | ||
| Carton | 610*545*335mm 4Pieces/Carton | ||
| Model | THA5000 | THB5000 | THC5000 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current | 416A | 208A | 104A |
| Conversion Efficiency | >85% | ||
| Continuous Power | 5000W | ||
| Peak Power | 10000W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Current | 45A/22A | ||
| Output Frequency | 50Hz-60Hz | ||
| Wave Form | Modified Sine Wave | ||
| USB Output Voltage | DC 5V(800mA) | ||
| Thermal Protection | ≤70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling | By Intelligent Fan | ||
| Under Voltage | 10±1V | 20±1 | 40±1 |
| Over Voltage | 15±1V | 30±1 | 60±1 |
| Protections | Undervoltage: LED red light, buzzer alarm, restart recovery | ||
| Overvoltage: LED red light, restart recovery | |||
| Overload,high temperature: LED red light, restart recovery | |||
| Reverse connect: Blown fuse | |||
| Net Weight | 7500g | ||
| Gross Weight | 8000g | ||
| Size | 480*200*100mm | ||
| Carton | 610*545*335mm 4Pieces/Carton | ||
Want to Know more details about this product
