Intelligent Automatic Voltage Stabilizer , AC Voltage Regulator Non - Contact Compensated
Product Details:
| Place of Origin: | China |
| Brand Name: | HRD/MOTU |
| Certification: | CE, ISO9001, |
| Model Number: | GTZW-S/D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Standard for export |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Working Voltage: | 127/120 +/-30% ,50/60HZ | Working Environment Temperature: | -15℃～+45℃ |
|---|---|---|---|
| Altitude: | ≤1000m, Above 1000m, Derating | Relative Humidity: | ≤90% |
| Color: | Gray | Phase: | 3 Phase / Single Phase |
| High Light: | 12vdc voltage regulator,3 phase automatic voltage regulator,ce approved ac voltage regulator |
||
Product Description
GTZW-S/D 10-3000kVA
Intelligent non - contact compensated AC voltage regulator
Working principle
This intelligent non-contact compensated AC voltage
regulator is adopted the latest high-speed DSP
chip control technology, fast AC sampling technology,
RMS correction technology, voltage and current
zero-crossing switching technology and fast
compensation regulator technology, combining the
smart instrument, fast regulator and fault
diagnosis togetherA.It leads the product
to be with high level safe, efficient and sophisticated.
The regulator is mainly composed of isolation transformer, SCR module, DSP control core, fast voltage regulator technology and safety protection device.
With the real-time monitoring output voltage by the DSP, fast calculation chip and control SCR module, to adjust the voltage range and polarity of the of the compensation transformer, the AVR can achieve fast regulation effectively.
Main Features:
High efficiency: more than 98%,low loss
- High efficiency: more than 98%, low self-loss
- High output accuracy ± 1%
- Intelligent instrument display: real-time display accurate voltage, current RMS value, high resolution, thin film key operation, safe and reliable
- Three-phase adjustment: three-phase independently regulation, to ensure that the output voltage of each phase is accurate.
- Wide range of applications: Wide voltage range, to satisfy poor power grid quality or with large voltage fluctuation power conditions
- High-speed response: Within 10ms,without any effect on computer, automation, equipment ect.
- Comprehensive Protection: phase loss, wrong phase, over temperature, overload, overvoltage, under voltage, short circuit, fuse protection ect. to ensure safe operation of the regulator & load.
- Preset function: output voltage, overload, overvoltage,response speed and other parameters can be arbitrarily set within capacity rating.
- Strong Overload capacity: the machine uses high-quality devices, excellent performance, can be continuously working with 100% rated load, and can withstand transient overload without damage to the machine.
- Strong adaptability: strong adaptability to the grid and load, can reliably, continuously and stably work in a variety of harsh power grid or with complex load conditions
- No distortion: use voltage and current zero-crossing switching technology, no cutoff, no inrush current, the output waveform without distortion in the switching process
- Low loss: less than 0.5% loss without load , which saves a lot of electricity fee for end users.
- Low loss: less than 0.5% loss without load under rated voltage, which saves a lot of electricity for customers
Perfect Application:
Industry, transportation, post and telecommunications, defense, railway, scientific research and other fields of large-scale mechanical and electrical equipment, metal processing equipment,.Like production lines, elevators, medical equipment, embroidery textile equipment, air conditioning, radio and television, household appliances and building lighting and other electrical equipment ,which needs stable voltage.
Technical Parameters:
| Model | D10K-100K(1phase) | S10K-3000K(3phase) |
| Rated capacity: | 10-100KVA | 10-3000KVA |
|
Phase:
|
Single phase, L+N+G | 3phase, 3L+N+G |
|
Input Voltage Range |
220V/230V/240Vac(110V/120V/127Vcustomizable) | 380/400/415Vac(200V/208V/220Vcustomizable) |
| Standard ± 15% (± 20% / ± 30% customizable) | ||
| Output Voltage | ±10% Settable | ±10% Settable |
| regulation Accuracy: | ±1% /±3%/±5% (Settable) | |
| Efficiency: | 10K-50K≥95%,50K-100K≥97%,>100K≥98% | |
| Frequency: | 50Hz/60Hz auto-sense | |
| Response time: | <10ms | |
| Stabilization time: | <500ms | |
| Insulation class: | F class | |
| Insulation resistance: | Insulation resistance of the whole machine> 50MΩ | |
| Dielectric strength: | 2000V / 1min no arcing discharge, no breakdown | |
| Output waveform: | Without distortion, ZERO harmonic increment | |
| Instantaneous overload capacity: |
2 times the rated current
|
|
| Display mode: | LCD Display | |
| Communication interface: | RS232 OR RS485 (Optional) | |
| Protection: |
Overload, overvoltage, undervoltage (settable), short circuit, phase loss, phase sequence wrong, over temperature, fuse
|
|
| Lightning protection degree | 220V or 380V, 20KA, C-class lightning protection, 1200V, <25ns (optional) | |
| Filter: | Built-in output filter to solve the transmission, EMT, EMI problems, to optimize the power quality, improve equipment anti-interference ability, the maximum leakage current <2mA, in line with GB7343 standard (optional) | |
| Isolation: | Built-in or external isolation transformer, to meet the electrical equipment and power grid to eliminate the interference of power grid clutter, to protect equipment and safety of personnel (optional) | |
| Cooling method: | Forced air cooling, intelligent speed | |
| IP degree | IP20 | |
Dimensions and weight (for reference only)
| Model | Capacity(KVA) | Size(W*D*H)cm | Weight(Kg) |
| GTZW-D3K | 3KVA | 25*53*30 | 22 |
| GTZW-D5K | 5KVA | 25*53*30 | 25 |
| GTZW-D10K | 10KVA | 25*53*30 | 32 |
| GTZW-D15K | 15KVA | 25*53*30 | 40 |
| GTZW-D20K | 20KVA | 35*60*40 | 70 |
| GTZW-D30K | 30KVA | 35*60*40 | 80 |
| GTZW-D40K | 40KVA | 38*78*83 | 100 |
| GTZW-D50K | 50KVA | 38*78*83 | 120 |
| GTZW-D75K | 75KVA | 43*78*117 | 150 |
| GTZW-D100K | 100KVA | 43*78*117 | 180 |
| 3Phase in and 3phase output | |||
| GTZW-S10K | 10KVA | 38*78*83 | 70 |
| GTZW-S20K | 20KVA | 38*78*83 | 80 |
| GTZW-S30K | 30KVA | 38*78*83 | 90 |
| GTZW-S50K | 50KVA | 38*78*83 | 150 |
| GTZW-S80K | 80KVA | 43*78*117 | 170 |
| GTZW-S100K | 100KVA | 43*78*117 | 190 |
| GTZW-S120K | 120KVA | 52*83*130 | 216 |
| GTZW-S150K | 150KVA | 52*83*130 | 240 |
| GTZW-S200K | 200KVA | 52*83*130 | 280 |
| GTZW-S250K | 250KVA | 100*80*150 | 350 |
| GTZW-S300K | 300KVA | 100*80*150 | 390 |

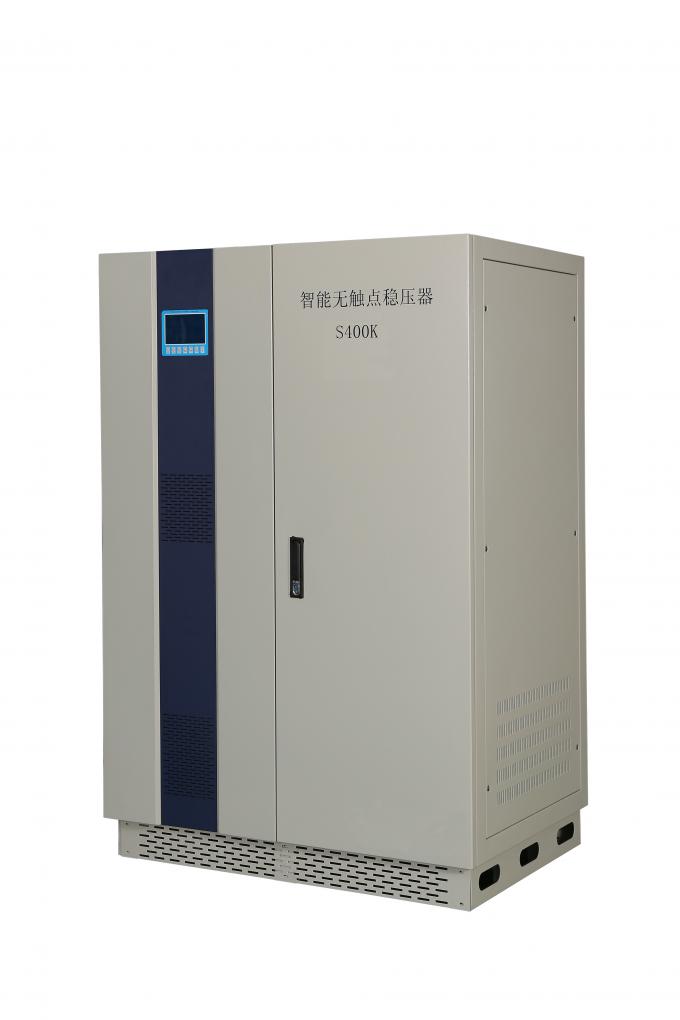

| GTZW-S400K | 400KVA | 100*80*150 | 420 |
| GTZW-S500K | 500KVA | 120*80*160 | 480 |
| GTZW-S600K | 600KVA | 120*80*160 | 520 |
| GTZW-S800K | 800KVA | 150*100*180 | 600 |
| GTZW-S1000K | 1000KVA | 150*100*180 | 660 |
| GTZW-S2000K | 2000KVA | 180*180*200 | 750 |
| GTZW-S3000K | 3000KVA | 180*180*200 | 850 |
