| PHASE: | 3-phase In / 3-phase Out | CAPACITY: | 10000 VA / 9000 W |
|---|---|---|---|
| Nominal Voltage: | 3 X 400 VAC (3Ph+N) | Frequency Range: | 46~54 Hz Or 56~64Hz |
| Output Voltage: | 3 X 400 VAC (3Ph+N) | Current Crest Ratio: | 3:1 (max.) |
| High Light: | high frequency ups,online power supply,Output PF0.9 Uninterruptible Power Supply |
||

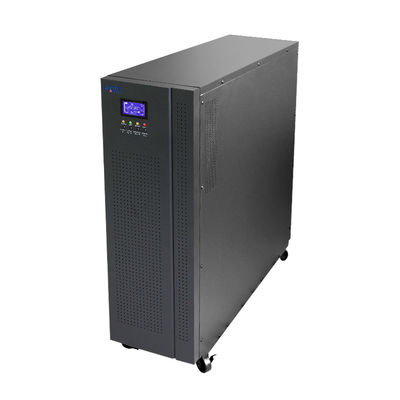

Powerwell Plus series Online HF UPS 10-30kVA 3:3PHASE
Main Features
o True double-conversion
o DSP technology guarantees high performance
o Output power factor 0.9
o Active power factor correction in all phases
o 50Hz/60Hz frequency converter mode
o ECO mode operation for energy saving (ECO)
o Accepts dual-mains inputs (Only for 10K/15K/20K models)
o Emergency power off function (EPO)
o Generator compatible
o SNMP+USB+RS-232 multiple communications
o 3-stage extendable charging design for optimized battery performance
o Adjustable battery numbers
o Maintenance bypass available
o Optional N+X parallel redundancy
| Model | PW plus 3/3-10K (L) | PW plus 3/3-15K (L) | PW plus 3/3-20K (L) | PW plus 3/3-30K (L) | |
| PHASE | 3-phase in / 3-phase out | ||||
| CAPACITY | 10000 VA / 9000 W | 15000 VA / 13500 W | 20000 VA / 18000 W | 30000 VA / 27000 W | |
| INPUT | |||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||
| Input Voltage Range | 190-520 VAC (3-phase) at 50% load ; 305-478 VAC (3-phase) at 100% load | ||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||
| Power Factor | ≧ 0.99 @ 100% Load | ||||
| OUTPUT | |||||
| Output Voltage | 3 x 400 VAC (3Ph+N) | ||||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||||
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (max.) | ||||
| Harmonic Distortion | ≦ 2 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load) | ||||
| Transfer Time | AC Mode to Batt. Mode | Zero | |||
| Inverter to Bypass | Zero | ||||
| Waveform (Batt. Mode) | Pure Sinewave | ||||
| EFFICIENCY | |||||
| AC Mode | 90.5% | 91.5% | 91.5% | 92.1% | |
| ECO Mode | 96% | ||||
| Battery Mode | 87% | 88% | 88% | 89% | |
| BATTERY | |||||
| Standard Model | Battery Type | 12 V / 9 Ah | |||
| Numbers | 20 pcs (18 - 20 adjustable)* | 20 pcs x 2 strings (18 - 20 adjustable)* | 20pcs x 3 strings(18-20 adjustable)* | ||
| Typical Recharge Time | 9 hours recover to 90% capacity | ||||
| Charging Current (Max.) | 1A | 2A | 2A | 4A | |
| Charging Voltage | 273 VDC ± 1% | ||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
| Numbers | |||||
| Charging Current (Max.) | 4A | 4A | 4A | 12A | |
| Charging Voltage | 273 VDC ± 1% | ||||
| INDICATORS | |||||
| LCD Display | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding twice every second | ||||
| Fault | Continously sounding | ||||
| PHYSICAL | |||||
| Standard Model | Dimension, DxWxH (mm) | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 300 x 1000 |
| Net Weight (kgs) | 109 | 164 | 164 | 233.5 | |
| Long-run Model | Dimension, D xWxH (mm) | 592 x 250 x 826 | 592 x 250 x 826 | 592 x 250 x 826 | 815 x 250 x 826 |
| Net Weight (kgs) | 38 | 40 | 40 | 64 | |
| ENVIRONMENT | |||||
| Humidity | 0-95 % RH @ 0- 40°C (Non-condensing) | ||||
| Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter | |||
| MANAGEMENT | |||||
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, Unix, and MAC | ||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
| *When using internal batteries from 18-19, the unit will de-rate according to the below formula: P = PRating x N/20. |
| Product specifications are subject to change without further notice |
