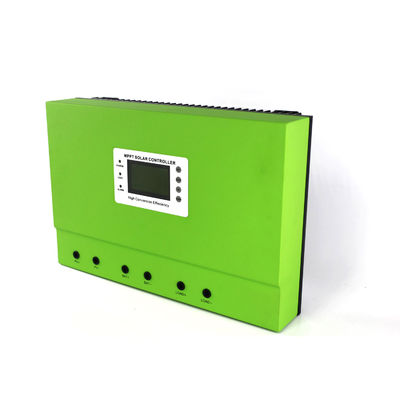

MMPT Solar Power Inverter 100A Current 12V / 24V With 3 Years Warranty

MMPT Solar Power Inverter 100A Current 12V / 24V With 3 Years Warranty

Product Details:

Place of Origin: CHINA
Brand Name: HRD OR OEM
Certification: CE
Model Number: Master-B48L,Master-B48H,Master-B96H

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: USD200-300/PCS
Packaging Details: standard for export
Delivery Time: 8-14 working days
Get Best Price Contact Now

Detail Information

MMPT: YES Output: 12V/24/48V/84VDC
Current: 80A,100A Warranty: 3 Years
Communication: RS485 Or RS232 (optional) And LAN Port
High Light:

sine wave inverter


power supply inverter

Product Description

This is a Maximum Power Point Tracking(MPPT) function with high efficiency MPPT charge controller. It has many advantages such as self cooling, system voltage automatic recognition, wide rang of PV input,bcharge for all kinds of batteries, intelligent discharge control, RS232 / LAN communication function etc. It is the most high-end product in solar market.
1.MPPT charge mode, conversion efficiency up to 99%.
2.12V/24V/36V/48V battery system automatic recognition, convenient for customers to use.
3.Maximum PV input voltage up to DC150V.
4.Controllers can be connected in unlimited parallels.
5.Memory function, to save the setting, date, time, generating capacity and so on .
6.Charge mode: three stages (fast charge ,constant charge ,floating charge). To extend the life span of the battery
7.Discharge mode: ON/OFF mode, double time control mode, PV voltage control mode ,PV voltage+time delay mode and so on .
8.Recommended battery types: sealed lead acid, Vented, Gel, NiCd battery. Other types of the batteries can also be defined, such as lithium battery etc.
9.Most information could be provide by LCD and LED like: model no., PV input voltage,battery type,battery voltage,charging current,charging power,working status and so on. Also customer's information like company name,website and logo can be added to Solar Eagle software.
10.RS232 and LAN communication port, IP and Gate address could be defined by the users and it can be used all around the world. And communication protocol can be provided to help customer manage all information .
11.Provide professional upper computer software, it could show work status and set parameters of the discharge system.
12.With intelligent design, customers can enjoy a lifelong upgrade online service
13.Adopting the well-known brand components, the devices can suffer the temperature at least 105℃.The lifespan is designed to use for 10 years in theory.
14.Compliance with the 2002/95/EC environment protecting demand, doesn't include the cadmium, hydride and fluoride etc .
15.CE,ROHS,FCC certifications approved, other certifications can also be made based on different requirements.
16. 2 years warranty and 3~10 years extended technical service.
  • Parameter:
    MPPT controller Model:
    Master-80A Series
    Charge Mode MPPT(Maximum Power Point Tracking)
    Charge Method 3 stages: fast charge(MPPT),constant voltage, floating charge
    System Type DC12V/24V/36V/48V Automatic recognition
    Soft Start Time DC12V/24V/36V/48V ≤10S
    Conversion Efficiency DC12V/24V/36V/48V ≥96.5%,≤99%
    PV Modules Utilization Rate DC12V/24V/36V/48V ≥99%
    System Voltage 12V system DC9V~15V
    24V system DC18V~28V
    36V system DC32V~40V
    48V system DC42V~60V
    Error system The battery voltage is not in above range when the controller is switched on
    PV Input Characteristics
    MPPT Working Voltage and Range 12V system DC16V~DC150V
    24V system DC30V~DC150V
    36V system DC45V~DC150V
    48V system DC60V~DC150V
    Input Low Voltage recovery Point 12V system DC22V
    24V system DC34V
    36V system DC50V
    48V system DC65V
    Input Over voltage Protection Point DC12V/24V/36V/48V DC150V
    Input Over voltage Recovery Point DC12V/24V/36V/48V DC145V
    Max. PV Power 12V system 960W
    24V system 1920W
    36V system 2880W
    48V system 3840W
    Charge characteristic
    Selectable Battery Types (Default type is GEL battery) DC12V/24V/36V/48V Sealed lead acid, vented Gel, NiCd battery (Other types of the batteries also can be defined)
    Charge mode DC12V/24V/36V/48V constant current-constant voltage-floating charge
    Constant Voltage DC12V/24V/36V/48V Please check the charge voltage according to the battery type form.
    Floating Charge Voltage DC12V/24V/36V/48V
    Rate charge current DC12V/24V/36V/48V 80A
    Current-limiting Protection DC12V/24V/36V/48V 85A
    Temperature Factor DC12V/24V/36V/48V ±0.02%/℃
    Temperature Compensation DC12V/24V/36V/48V 14.2V-(The highest temperature-25℃)*0.3
    Output Ripples(peak) DC12V/24V/36V/48V 200mV
    Charger voltage accuracy DC12V/24V/36V/48V ≤±1.5%
    Discharge characteristic
    Setting Control Controller or PC software
    Max discharge current DC12V/24V/36V/48V 100A
    Discharge protection DC12V/24V/36V/48V fuse
    Double-time control DC12V/24V/36V/48V On in morning ,off in morning / On in night ,off in night
    ON / OFF mode DC12V/24V/36V/48V ON / OFF
    PV voltage control DC12V/24V/36V/48V PV voltage on, PV voltage off
    PV voltage / time delay control DC12V/24V/36V/48V PV voltage on, time delay off
    Control ON/OFF mode
    Discharge voltage protection DC12V/24V/36V/48V Set by user
    Output off when it under (exceed) setting voltage;
    Communication Features
    RS232 communication DC12V/24V/36V/48V Chose COM communication port
    LAN communication DC12V/24V/36V/48V Set IP and Gate address for controller and solar eagle ;
    Then chose TCP communication
    Protection Function
    Input Low Voltage Protection Check the input characteristics
    Input Over voltage Protection Check the input characteristics
    Temperature Protection 95℃
    Temperature rise protection Above 85℃,decrease the output power, decrease 3A per degree.
    Other Parameters
    Thermal methods Self-cooling
    Components World brand raw materials. Compliance with EU standards. All rated temperature of electrolytic capacitors not less than 105℃
    Smell No peculiar smell and toxic substances.
    Environment Protection Meet the 2002/95/EC,
    no cadmium hydride and fluoride
    Measurement DxWxH (mm) 420*280*102
    Packing DxWxH (mm) 500*360*195
    N.G(kg) 7.1
    G.N(kg) 8.5
    Color Blue, Green, White (optional) or OEM
    Safety CE, PSE, FCC, EMC
    EMC EN61000
    Type of Mechanical Protection IP50
    Humidity 0~90%RH ( no condense)
    Altitude 0~3000m
    Operating Temperature -20℃ ~ +40℃
    Storage Temperature -40℃ ~ +75℃
    Atmospheric Pressure 70~106kPa
