| High Light: | electricity inverter,sine wave inverter |
||
|---|---|---|---|
With advanced online technology, single phase inverter provides a complete power solution to the strict places. It’s stable and high efficiency. In AC model, its efficiency up to 99%. It also integrates with PWM inversion and output pure sine wave voltage, widely applied in capactive load, inductive load and non-linear load equipment. Its efficiency is higher 10% than other three phase inverter. Perfect in protection functions: overload, short circuit, undervoltage protection.
Design Features:
●Intelligent CPU control technology
●High efficiency inversion technology design
●Stable voltage output
●High/low input/output protection
●50HZ output
●Output short circuit/overload/overtemp warning and protection
●LCD display and buzzer indication
●SMT technology
●Designed lightweight, attractive and durable
●The inverter will be closed automatically when battery is low, when battery up to 55V by charging, inverter automatic start(can be applied to intelligent control of wind and PV hybrid power systems inverter)
Working diagram:
|

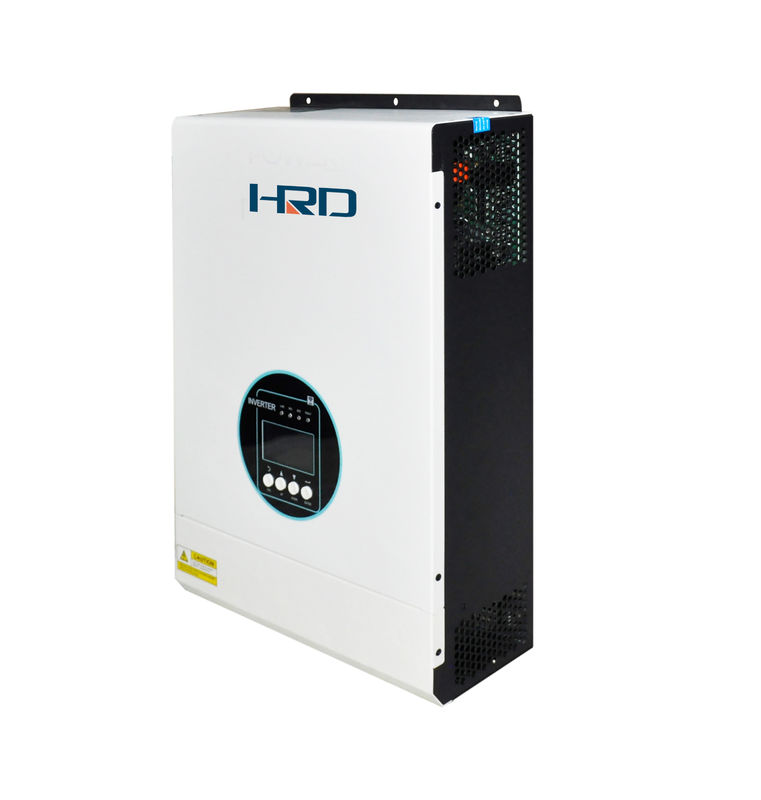

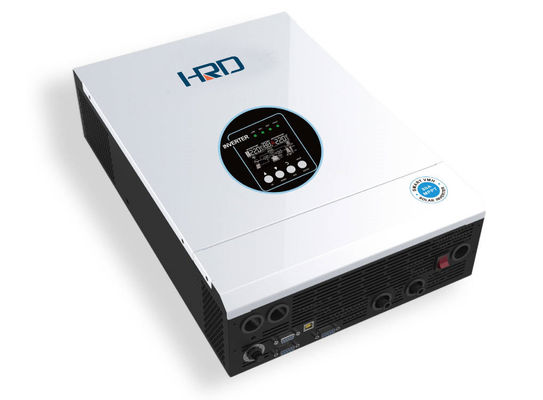

SSI Series Solar Inverter 220V/50HZ Technical Specification: |
||||||
|
Model |
2000VA |
3000VA |
4000VA |
5000VA |
6000VA |
10000VA |
|
DC Voltage |
48V |
48V |
48V |
48V |
72V |
96V |
|
Power Factor |
0.8 |
|||||
|
Efficiency |
≧90% |
|||||
|
Output Mode |
Inverting prior. |
|||||
|
Inverting Output Voltage |
220V±3% |
|||||
|
Inverting Output Frequency |
50HZ±1% |
|||||
|
Inverting Output Wave Form |
Sine Wave |
|||||
|
THD |
≦3% |
|||||
|
Protection Functions |
Overload, short-circuit, low battery voltage, high and low mains voltage protections. |
|||||
|
Overload Capacity |
Overloads 100%~150%, urgent buzzer for 20 seconds(returns to normal when deloading),then auto shutdowns; overload 150%, shutdowns immediately. |
|||||
|
Fault |
Continuous buzzer then bypass. |
|||||
|
Low Battery Voltage |
Battery voltage reaches(battery quantity*10+0.5), buzzes urgently every 1 second, battery voltage reaches(battery quantity*10+-0.2), jumps to bypass and charges the battery at the same time; when auto-detects battery voltage up to (battery quantity*13.5), back to the inverting mode again. |
|||||
|
Unattended Function |
In bypass mode, if the mains is cut, inverter auto shutdowns; auto restarts if the mains comes.. |
|||||
|
AC/Inverting Conversion |
Slow Start(output voltage is from weak to strong, it takes 3 seconds) |
|||||
|
AC Input Voltage |
165—275±5V |
|||||
|
AC Input Voltage |
50Hz±5Hz |
|||||
|
AC Output Voltage |
220V±10%(constant voltage) |
|||||
|
Charging Current |
1-2A(can be customized bigger) |
|||||
|
Monitoring Interface |
RS232(input/output voltage; input/output frequency; battery voltage; inverter status) |
|||||
|
Display |
LED: yellow light for inverter output /green light for mains input / red light for low battery voltage, overload and faults LCD: input/output/battery voltage; input/output frequency; load capacity; inverter mode(optional) |
|||||
|
Ambient Temperature |
0—40℃ |
|||||
|
Humidity |
20%-95%(non-condensing) |
|||||
|
Audio Noise |
<40Db(with a distance of 1 meter) |
|||||
