Product Details:
Payment & Shipping Terms:
|
| High Light: | electricity inverter,sine wave inverter |
||
|---|---|---|---|
Introduction:

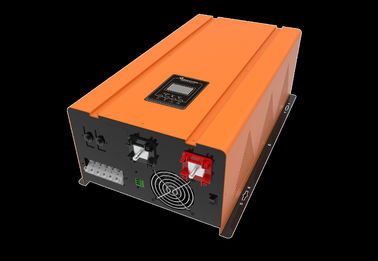

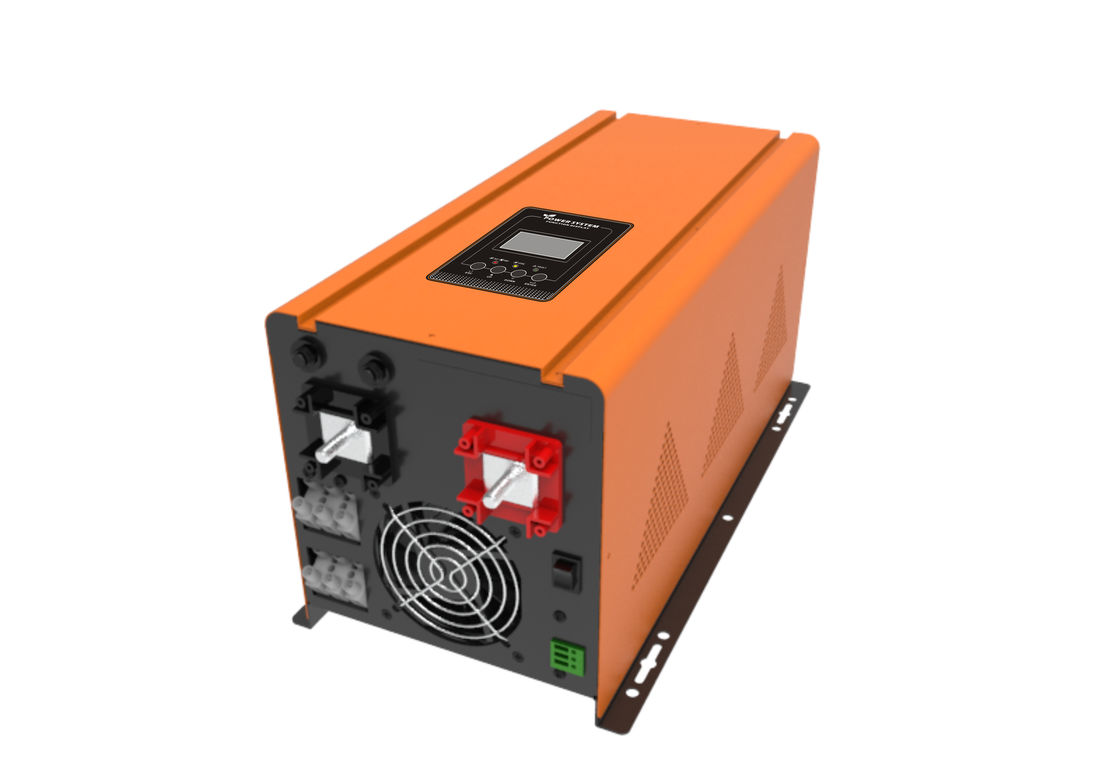

GF solar Inverter is specially designed for home and industrial appliance, such as light, fan, TV, Ice-box, air conditioner etc. or other industrial machine.It's inbuilt solar controller,which can convert solar power for home or office use to save electricity cost and enviroment.
Main Features:
Micro Processor Control
Smart multifunctional LCD panel
Full automatic and silent operation
Automatic Line-to-Battery Switch over
Three stage Intelligent Automatic Charging Mode Technology
Remote control solution by RJ11 and remote panel
Automatic charge while AC recovery (off model charging)
High Efficient DC-to-AC conversion. Minimizing energy loss
Overload, short circuit protection. Over charge, discharge protection
Low battery and high protection
Cold start
Isolated output
Compatibility with generators
Full Multi-function LCD Display with full meanings and buzzer alarms Design
Application for Fan, light, TV and office Appliances
Intelligent Variable speed fan operation
Battery type setup to get the best charge voltage and mode
Sine Wave Inverter/Charger System
The Desirable Long Backup Power Solution For Home And Office Appliances
Solar charger optional
Technical Specification:
| Model | GF 1012 | GF2024 | GF3024 | GF4048 | GF5048 | GF6048 | |||
| Capacity | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | 4kVA/4kW | 5kVA/5kW | 6kVA/6kW | |||
|
|
AC Input | ||||||||
| Nominal Voltage | 220V or 110V | ||||||||
| Voltage Range | 180-260Vac(+/-4%) or 90-145Vac(+/-4%) | ||||||||
| Frequency | 50/60Hz(auto sensing) | ||||||||
| Solar Controller | Optional | ||||||||
|
Output |
Voltage | 220Vac or110Vac+/-10% | |||||||
| Frequency | 50/60Hz+/-1hz | ||||||||
| Transfer Time | 10ms(typical) | ||||||||
| Wave form | Pure sine wave | ||||||||
|
Battery |
voltage | 12vdc | 12/24Vdc | 24/48Vdc | |||||
| Floating Charge Voltage(DC) | 13.7Vdc+/-1% | 13.7/27.5+/-1% | 27.5/54.8Vdc-+/-1% | ||||||
| Alarm Voltage | 10.5Vdc | 10.5/21Vdc | 21/42.0Vdc | ||||||
| Shutdown Voltage | 10.0Vdc | 10.0/20.0Vdc | 20/40.0Vdc | ||||||
| Over Charge Protection | 15.0Vdc | 15.0/30.0Vdc | 30.0/60.0Vdc | ||||||
| Max. Charge Current | 30A | 60/30A | 50/30A | ||||||
|
Protection |
Full Protection | Overload and Short Circuit and Over temperature | |||||||
| Safety Level | Compliance with U1458/CE(EN60950) | ||||||||
| EMI Classification | FCC,CLASSA/EN50091-2,CLASSA | ||||||||
| Audible Noise | 60db ( 1M,Max) | ||||||||
|
Alarm |
Low Battery | Beep 0.5s every 5s | |||||||
| Overload | Beep 0.5s every 5s | ||||||||
| Over temperature | Beep 0.5s every 5s | ||||||||
| Fault | Beep continuously | ||||||||
| Physical |
Dimension (D*W*H) |
390x222x178mm | 500x258x190mm | 574x345x197 | |||||
|
N.W KG |
12 | 15 | 25 | 34 | 38 | 41 | |||
