| Type: | Online UPS | Battery: | Lithium-iron Battery |
|---|---|---|---|
| Voltage: | 220/230/240Vac | Warranty: | 18months After Shipment |
| Certificate: | ISO9001 | ||
| High Light: | Lithium Iron Battery 3KVA Online UPS,ISO9001 3KVA Online UPS,Lithium Iron Battery 1 KVA Online UPS |
||

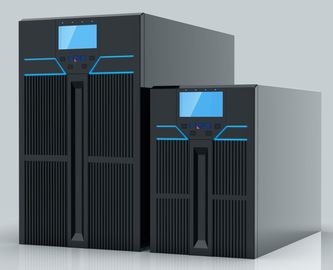

Super-Li Online UPS1-3kVA(Li-ion Battery Support)
Introduction:Super-Li Online HF UPS 1-3K is
adopted highest level DSP controlled UPS with Lithium battery.Compared with traditional LEAD-ACID battery UPS, it has much longer lifespan and smaller size.
Perfect Application:
Network, data center, servers and workstations, control system,
communication system and office etc.
Main Features:
Zero Transfer time
True Double Conversion Online UPS, provide most comprehensive protect mission critical equipment from wide range power quality issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Li-ion Battery Powered
Provide up to 3x backup time with 50% dimension, comparing with regular Lead-acid UPS product
Dry Contact control Interface for BMS
Incorporated Dry Contact interface for BMS dominant control , for control of charging and discharging base on relay in-depth BMS information
ModBUS interface with BMS
Incorporated ModBUS(RS485) interface with BMS, to achieve precise battery information (voltage/soc/soh, etc) for better UPS behaviour prediction and backup protection control loop.
Li-ion Battery Charger
Constant current , Constant voltage, Floating, Turn-Off 4 state charger for Li-ion battery , open to customize the logical behavior for customer- specified battery pack
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life.
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Specification:
| Model | S1K-Li | S1KS-Li | S2K-Li | S2KS-Li | S3K-Li | S3KS-Li | |||||||||||
| Capacity | VA/W | 1kVA/900W | 2kVA/1.8kW | 3kVA/2.7kW | |||||||||||||
| Topology | Double Conversion Online UPS | ||||||||||||||||
| Phase | Single Phase Input Single Phase Output | ||||||||||||||||
| Mains Input | Wiring | L/N+PE | |||||||||||||||
| Rated Voltage | 208/220/230/240VAC | ||||||||||||||||
| Voltage Range | 90~300VAC | ||||||||||||||||
| Frequency Range | 40Hz-70Hz | ||||||||||||||||
| Input Power Factor | ≥0.99 | ||||||||||||||||
| AC Output | Wiring | L/N+PE | |||||||||||||||
| Output Voltage | 208/220/230/240VAC | ||||||||||||||||
| Voltage Regulation | ±1% | ||||||||||||||||
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) | ||||||||||||||||
| Waveform | Sine Wave | ||||||||||||||||
|
Distortion (THDV%) |
<2%(Linear Load) | ||||||||||||||||
| <8%(None-Linear Load) | |||||||||||||||||
| Over load capability |
1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
||||||||||||||||
| Efficiency | AC/AC Mode | 88% | 89% | 90% | |||||||||||||
| DC/AC Mode | 86% | 87% | 88% | ||||||||||||||
|
Battery & Charger |
Rated Battery Voltage | 48VDC | |||||||||||||||
| Battery Capacity | 600WH | External Battery Depends | 1000WH | External Battery Depends | 1000WH | External Battery Depends | |||||||||||
| Backup Time | >40mins @ Full Load | >30mins @ Full Load | >20mins @ Full Load | ||||||||||||||
| Charging Current | 4A/8A | ||||||||||||||||
| Charging Voltage | 56.5V(default for 16cell of LiFePO4 ) / Customerized according to battery request | ||||||||||||||||
|
Charger Behavior & Protection |
CC. CV. Floating. Turn-Off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
||||||||||||||||
| Physical | Chassis Style | RACK / Tower (separated) | |||||||||||||||
| Rack Dimension |
1KS:438x44(2U)X360mm 1K: 438x44(2U)X360mm |
2KS: 438x44(2U)X500mm 2KS:438x44(2U)X360mm |
3KS: 438x44(2U)X650mm 3K:438x44(2U)X360mm |
||||||||||||||
| Tower Dimension |
S1KS-LI/S2KS-LI: 145×220×390mm S3KS-LI: 190×318×365mm S1k/S2k: 190×318×365mm S3K:190×318×415MM |
||||||||||||||||
| Weight(Tower) | 10.8kg | 5.0kg | 16.5kg | 5.5kg | 18.0kg | 7.9kg | |||||||||||
| Weight(Rack) | 12.5kg | 6.5kg | 21.6kg | 6.8kg | 24.5kg | 8.2kg | |||||||||||
| HMI | LED DISPLAY | Mains / battery status, Load level, battery level, Operation Mode | |||||||||||||||
| LCD DISPLAY with LED indicator | Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status | ||||||||||||||||
|
Standards COMMUNICATION |
1. RS232 PORT 2. Network Card: Support SNMP,TCP/IP Protocol , for remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. Dry Contact Interface for BMS control
|
||||||||||||||||
|
Operating Environment Endurance |
Temperature range | -10~50oC | |||||||||||||||
| Relative Humidity | 0-98%(Non-condensing) | ||||||||||||||||
| Acoustics Noise | <55dB @ 1 meters | ||||||||||||||||
UPS Outlooking

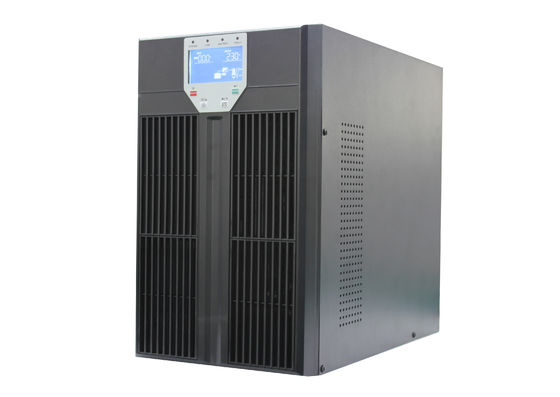

Front View
S1K-Li/S2K-Li Front Bezel S1/S2/3K(S)-LiFront Bezel
S1KR(S)/2KR(S)/3KR(S)-LI 2U RACK Bezel
