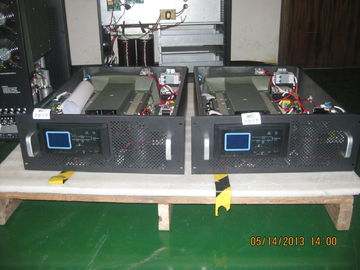

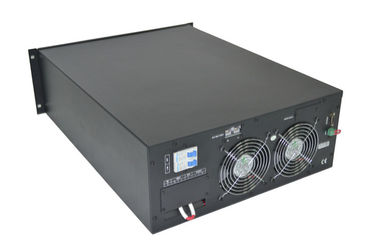

High Frequency 220 Vac Rack Mount Ups 8kva With DSP And EPO For Office
Quick Detail:
1)Frequency Range:40-70Hz)
2)Output Voltage:208/220/230/240 VAC
3)Waveform (Batt. Mode):Pure Sine wave
| •19'inch, rack mount, 3/4U design 6kva to 10kva | |||||
| •True online high frequency double-conversion | |||||
| •Advanced DSP controlled ,excellent performance with super high quality | |||||
| •Output Power Factor 0.9 | |||||
| •Wide input frequency range (40-70Hz) | |||||
| •Wide input voltage range | |||||
| •50Hz/60Hz frequency converter mode | |||||
| •Eco mode operation for energy saving (Optional) | |||||
| 192Vdc and 240Vdc convertible easily | |||||
| •Emergency power off function (EPO) | |||||
| History event record function,100 events | |||||
| •Cold start and AC start function | |||||
| •Automatic 4 levels speed fan control according to load and temperature | |||||
| •Advanced N+1 redundancy parallel technology(Max.6units) | |||||
| •Support any kinds of Generator | |||||
| Power Castle RACKMOUNT 6K/10K ONLINE HF UPS | |||||
| MODEL | PCPR 06S | PCPR 06L | PCPR 10S | PCPR 10L | |
| PHASE | 1 phase in / 1 phase out | ||||
| CAPACITY | 6Kva / 5.4Kw | 10Kva/ 9Kw | |||
| INPUT | |||||
| Voltage Range | Low Line Transfer | 176 VAC ± 3% @ 100% load 130 VAC ± 3% @ 50% load |
|||
| Low Line Comeback | 188 VAC ± 3% @ 100% load 142 VAC ± 3% @ 50% load |
||||
| High Line Transfer | 286 VAC ± 3% | ||||
| High Line Comeback | 270 VAC ± 3% | ||||
| Frequency Range | 40-70Hz following range 46~54 Hz @ 50Hz ,56~64 Hz @60Hz |
||||
| Phase | Single phase with ground | ||||
| Power Factor | > 0.99 @ 100%load | ||||
| OUTPUT | |||||
| Output Voltage | 208/220/230/240 VAC | ||||
| AC Voltage Regulation | ± 1% | ||||
| Frequency Range (Synchronized Range) | 46~54 Hz @ 50 Hz / 56~64 Hz @ 60 Hz | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (max.) | ||||
| Harmonic Distortion | ≤ 3 % THD (Linear Load) , ≤ 6 % THD (Non-linear Load) | ||||
| Transfer Time | AC Mode to Batt. Mode | Zero | |||
| Inverter to Bypass | Zero | ||||
| Waveform (Batt. Mode) | Pure Sinewave | ||||
| EFFICIENCY | |||||
| AC Mode | 92% | ||||
| Battery Mode | 91% | ||||
| BATTERY | |||||
| Standard model | Battery Type | lead-acid battery maintanence free | |||
| Numbers | 16/20Pcs | ||||
| Typical Recharge Time | 3 hours recover to 90% capacity | 4 hours recover to 90% capacity | |||
| Charging Current (max.) | 1A ±10% | 4A±10% | 1A ±10% | 4A ±10% | |
| Charging Voltage | 220/273 VDC ± 1% | ||||
| Long-run Model | Battery cabinet | 16/20pcs 7ah | without batt. | 16/20pcs9ah | without batt. |
| INDICATORS | |||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, output current,Bus voltage, Temp, and warning and fault code and events |
||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds( can mute) | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Standard Model | Dimension, D X W X H (mm) |
UPS Unit : 580 X 438 X 176 [4U] Battery Pack : 580 X 438 X 176 [4U] |
UPS unit: 580 X 438 X 176[4U] | UPS Unit: 668 X 438 X 176 [4U] Battery Pack : 580 X 438 X 176 [4U] |
UPS unit: 668 X 438 X 175[4U] |
| Net Weight (kgs) | UPS Unit : 22 kgs Battery Pack : 62kgs |
UPS Unit : 25 kgs Battery Pack :75 kgs |
25kgs | ||
| ENVIRONMENT | |||||
| Operation Humidity | 20-90 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 58dBA @ 1 Meter | |||
| MANAGEMENT | |||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | ||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
| * L means long-run model,S means standard model | |||||
