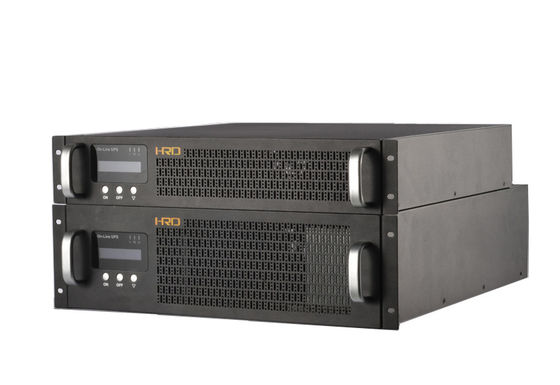

Rack Mount Online Hf Ups 1-10KVA 220VAC
Product Details:
| Place of Origin: | Shenzhen ,China |
| Brand Name: | OEM/HRD |
| Certification: | CE |
| Model Number: | PMCR 1KVA-10KVA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | 100-2000USD |
| Packaging Details: | STANDADARD PACKING |
| Delivery Time: | 15-20DAYS |
| Payment Terms: | TT OR L/C |
| Supply Ability: | 200PCS/DAY |
| Price Tearm: | FOB SHENZHEN |
| warranty: | 18 months after shipment with 10 years support |
|
Detail Information |
|||
| Output Voltage: | 220/230/240VAC | Protection: | Short Circuit,Overcurrent,Overvoltage,over Voltage,overload/overshort/discharge/charge/short Circuit |
|---|---|---|---|
| Type: | Rack Mount Online Ups | Application: | Networking,Telecommunications |
| Phase: | Single Phase | Product Name: | High Frequency UPS Online,Uninterrupted Power Supply |
| Display: | LCD+LED | Capacity: | 1 ~ 10KVA |
| Wave Form: | Pure Sine Wave | Certification: | CE,ISO9001 |
| Warranty: | 1.5 Years | Color: | Black |
| Battery Type: | Lead Acid Battery | Transfer Time: | 0ms |
| Input Voltage: | 220/230/240V AC,110-300V | Input Voltage Range: | 115-300VAC±5 |
| Backup Time: | Depends On Needs | Output Power Factor: | 1.0 |
| Efficiency: | 94% | ||
| High Light: | uninterruptible power system,rack ups systems,CE rack mount online ups |
||
Product Description
PCM Rack Series 1-10kVA,1.0PF
System introduction:
PCM Rack Series is a full DSP controlled, adopted 3 level technology Online HF UPS.
It’s Online double conversion,1/1 Phase pure sine wave
with smart design and high reliable, overall efficiency＞95% .
It’s a high reliability and energy saving green UPS.
Technical Specification:
◆ Most advanced power supply rectifier and PFC Technology. Input Power Factor 0.99, THDi≤3.5%,
◆ Wide Input Range 110-300Vac,which reduces the battery usage time and maximize battery lifespan.
◆ Adopt Latest 3 Lever technology to meet the critical loads, with output PF =1.0 ,overall efficiency up to 95% (98.5% under ECO mode),
◆ Powerful load capability with output short circuit protection technology
◆ Compatible with all kinds of generators to save customers costs.
◆ IBM charger with current 1-12A adjustable,constant charging, float charging and equalized charging , to maximize the battery life and fast charging requirement.
◆ Powerful battery anti-reverse connected alarm and protection.In case the DC is not connected,
Or reversely connected, UPS cannot turn on and show DC failure.
◆ Battery configuration: optional with 16/18/20pcs for 6-10kVA without changing any spares；
◆ Powerful battery maintenance function, battery test on the LCD screen directly,battery end voltage settabe on LCD.
◆ Smart identify of short circuit, if the short circuit lasts within 3s, UPS will restart on inverter automatically, if the short circuit lasts over 3s,UPS will lock the inverter with long time alarm.
◆ Under emergency status, UPS output can be remote controlled under EPO mode
◆ Battery Self-testing on the LCD directly. Battery Capacity, UPS working mode (Online or ECO first) can be set on the screen. .
◆ Intelligent mute control technology and scientific ventilation design greatly reduce the UPS running noise
◆ Standard 19inch 2U Rack-mount design
◆ Highly integrated PCBA board and wires design makes the system convenient in maintenance and greatly saves after-sale time
◆ SNMP card (optional)
| Model | PCMR1K | PCMR2K | PCMR3K | PCMR6K | PCMR10K | ||||||||
| Phase | 1phase 2wire+PE | ||||||||||||
| Capacity | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | 6kVA/6kW | 10kVA/10kW | ||||||||
| Input | |||||||||||||
| Nominal Input Voltage | 220/230/240VAC | ||||||||||||
| Input Voltage Range | 110V~300V Half load 176V~300V Full Load | ||||||||||||
| Input Frequency Range | 50/60Hz+/-10% | ||||||||||||
| Input Power Factor | 0.99 @Full load | ||||||||||||
| THDi | ≤3%(linear load),≤5%(non-linear load) | ||||||||||||
| Output | |||||||||||||
| Output Voltage | 230V(220/240/208V Selectable) | ||||||||||||
| Output Voltage Regulation | +/-1% | ||||||||||||
| Output Frequency (Sync.Mode) | 46Hz~54Hz/56Hz~64Hz | ||||||||||||
| Output Frequency (Bat.Mode) | 50Hz+/-0.05Hz 60Hz+/-0.05Hz | ||||||||||||
| Output THDv% | ≤2% linear Load, ≤4% Non-linear Load | ||||||||||||
| Overload |
AC Mode: 1mins@105%-125%,30S 125%-150%,
|
ACMode: 10mins@105%-125%,30S 125%-150%, BatteryMode:1mins@105%-125%,10S 125%-150% |
|||||||||||
| Output Waveform | Pure Sine wave | ||||||||||||
| Transfer Time | |||||||||||||
| Line mode ↔ Bat Mode | 0ms | ||||||||||||
| Inv ↔ Bypass Mode | <4ms | ||||||||||||
| Efficiency | |||||||||||||
| AC-->AC | Max.94% | Max.95% | |||||||||||
| ECO | 98% | ||||||||||||
| Battery Mode | Max.94.5% | ||||||||||||
| Battery & Charger | |||||||||||||
| Battery Voltage/Capacity |
Standard model:2 x 12V/9AHA Long run model:36V external battery |
Standard model:4 x 12V/9AH Long run model:72V external battery |
Standard model:6 x 12V/9AH Long run model:96V external battery |
Standard model:16 x 12V/7AHA or 9AH Long run model:192V/240V external battery* |
|||||||||
| Battery Type | Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery | ||||||||||||
| Recharge time |
Standard model:7hours to above 90% Long run model:Subject to external battery configuration |
||||||||||||
| Max recharge current |
Standard model:1-2A Long run model:1-12A settable |
||||||||||||
| Floating charge Voltage | 27.3/41V | 82V | 82/109V | 218.4V/273V | |||||||||
| Display | |||||||||||||
| Display | LED/LCD(option) | ||||||||||||
| Buzzer Alarm | Bat.Mode/Bat.Low/OverLoad/Fault | ||||||||||||
| Communication Port | RS232+USB+EPO,SNMP(option) | ||||||||||||
| Physical | |||||||||||||
| Form factor | Rack | ||||||||||||
| Rack | 438mm(w) x 88mm(2U) x 500mm(D) | ||||||||||||
| Weight(S/L) | 18.6/9.0kg | 19/10kg | 25/11kg |
6KVA:57/18kg 10kVA:67.5/20kg |
|||||||||
| Environment | |||||||||||||
| Humidity | 5～97% (Non condensing) | ||||||||||||
| Operating Ambient temperature | 0~40℃ | ||||||||||||
| *Specification is subject to change without further notice; | |||||||||||||
Note: “S” refers to “Standard model”,”L” refers to “Long-run model”
All specifications subject to change without further notice; customized specifications are acceptable
