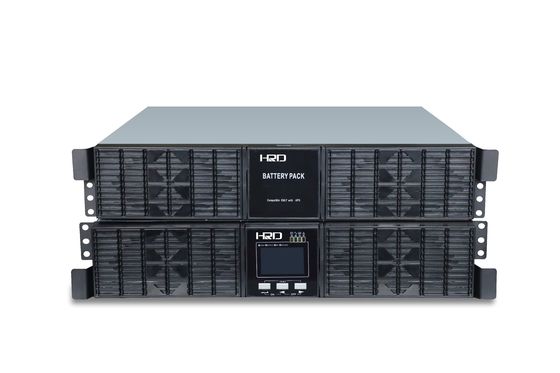

1KVA - 10KVA Rack Mount UPS / 19 Inch LCD Double-Conversion UPS
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/OEM/ODM |
| Certification: | CE, ISO9001:2008 |
| Model Number: | PMR01 PMR02 PMR03 ;PCR06,PC10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | 120-800USD/PCS; |
| Packaging Details: | 1PCS/CTN, standard for export |
| Delivery Time: | 3 weeks after down payment |
| Payment Terms: | TT |
| Supply Ability: | 10000pcs/ month |
| Warranty: | 18months after shipment with 10years technical support |
|
Detail Information |
|||
| Product Name: | Online Rack Mount UPS | Model: | PCMR1K,PCM2K,PCMR3K,PCMR6K,PCMR10K |
|---|---|---|---|
| Capacity: | 1KVA/0.8kW,1KVA/0.8kW,2KVA/1.6kW | Phase: | Single |
| Input PF: | Above 0.99 | THDi: | Less Than 3% |
| Efficency: | 95% In Normal Mode, 98% In ECO Mode | Type: | Rack And Tower Convertiable |
| Highlight: | rack ups systems,rack mounted ups,19 inch lcd rack mounted ups |
||
Product Description
PCM-II Rack Series 1-10kVA,1.0PF System introduction:
PCM Rack Series is a full DSP controlled, adopted 3 level technology Online HF UPS.
It’s Online double conversion,1/1 Phase pure sine wave
with smart design and high reliable, overall efficiency＞95% .
It’s a high reliability and energy saving green UPS.
Technical Specification:
◆ Most advanced power supply rectifier and PFC Technology. Input Power Factor 0.99, THDi≤3.5%,

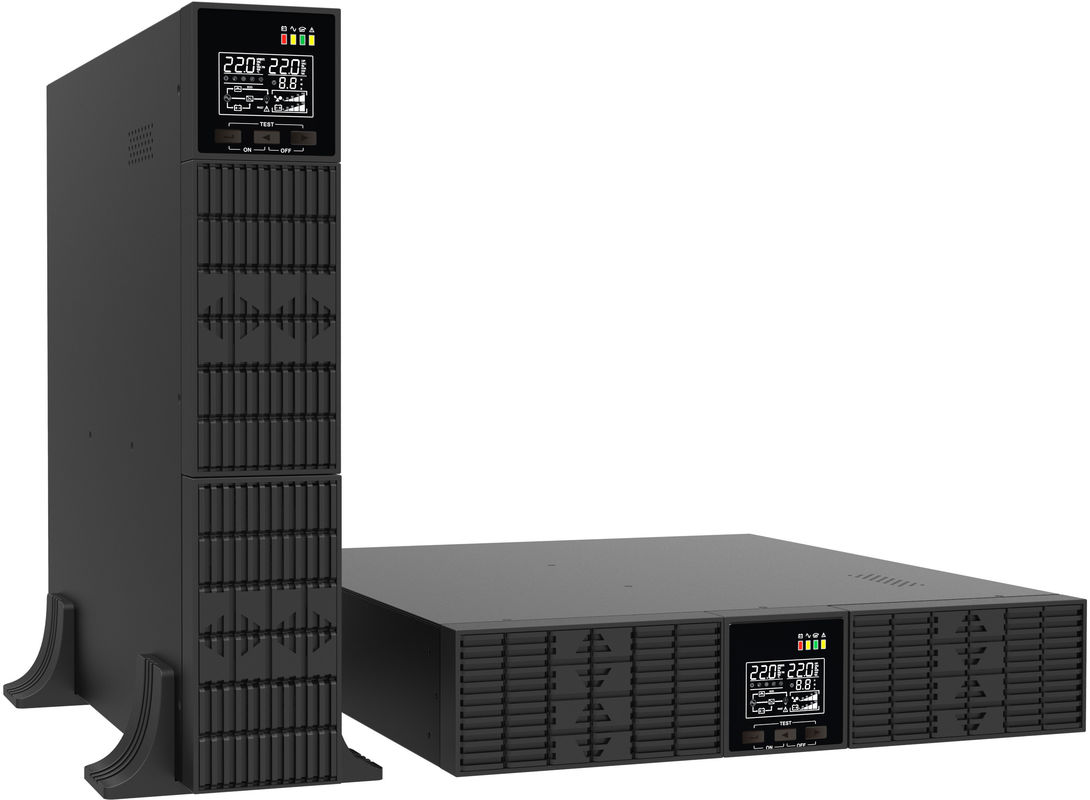

◆ 19inch 2U Rack-mount design, Rack/Tower convertible
◆ Wide Input Range 110-300Vac,which reduces the battery usage time to maximize battery lifespan.
◆ Adopt Latest 3 Lever topology to meet the critical loads, with output PF =1.0
◆ Powerful load capability with output short circuit protection technology
◆ Compatible with all kinds of generators to save customers costs.
◆ ABM fast charger 1-12A adjustable, constant charging, float charging and equalized charging , to maximize the battery life and fast charging requirement.
◆ Powerful battery anti-reverse connected alarm and protection.In case the DC is not connected,
Or reversely connected, UPS cannot turn on and show DC failure.
◆ Battery configuration: optional with 16/18/20pcs for 6-10kVA without changing any spares；
◆ Smart identify of short circuit, if the short circuit lasts within 3s, UPS will restart on inverter
◆Multifunction LCD, output voltage, frequency, battery test,end voltage, charging current ect. ECO mode settable
automatically, if the short circuit lasts over 3s,UPS will lock the inverter with long time alarm.
◆ Under emergency status, UPS output can be remote controlled under EPO mode
◆ LCD display rotatable
◆ Intelligent mute control technology and scientific ventilation design greatly reduce the UPS running noise
WWW.HRDUPS.COM
◆ Highly integrated PCBA board and wires design, convenient for fast maintenance
◆ Hot-swappable battery design
◆ Smart USB&RS232 andEPO , SNMP card (optional)
| Model | PCMR1K | PCMR2K | PCMR3K | PCMR6K | PCMR10K |
| Phase | 1phase 2wire+PE | ||||
| Capacity | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | 6kVA/6kW | 10kVA/10kW |
| Input | |||||
| Nominal Input Voltage | 220/230/240VAC | ||||
| Input Voltage Range | 110V~300V Half load 176V~300V Full Load | ||||
| Input Frequency Range |
50/60Hz+/-10% |
||||
| Input Power Factor | 0.99 @Full load | ||||
| THDi | ≤3%(linear load),≤5%(non-linear load) | ||||
| Output | |||||
| Output Voltage | 230V(220/240/208V Selectable) | ||||
| Output Voltage Regulation | +/-1% | ||||
|
Output Frequency (Sync.Mode) |
46Hz~54Hz/56Hz~64Hz |
||||
|
Output Frequency (Bat.Mode) |
50Hz+/-0.05Hz 60Hz+/-0.05Hz |
||||
| Output THDv% | ≤2% linear Load, ≤4% Non-linear Load | ||||
|
Overload |
AC Mode: 1mins@105%-125%,30S 125%-150%, |
ACMode: 10mins@105%-125%,30S 125%-150%, BatteryMode:1mins@105%-125%, 10S 125%-150% |
|||
| Output Waveform | Pure Sine wave | ||||
| Transfer Time | |||||
|
Line mode ↔ Bat Mode |
0ms |
||||
| Inv ↔ Bypass Mode | <4ms | ||||
WWW.HRDUPS.COM
| Efficiency | |||||
| AC-->AC | Max.94% | Max.95% | |||
| ECO | 98% | ||||
| Battery Mode | Max.94.5% | ||||
| Battery & Charger | |||||
|
Battery Voltage/Capacity |
Standard model:2 x 12V/9AH Long run model:36V external battery |
Standard model:4 x 12V/9AH Long run model:72V external battery |
Standard model:6 x 12V/9AH Long run model:96V external battery |
Standard model:16 x 12V/7AH or 9AH Long run model:192V/240V external battery* |
|
| Battery Type | Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery | ||||
|
Recharge time |
Standard model:7hours to above 90% Long run model:Subject to external battery configuration |
||||
| Max recharge current |
Standard model:1-2A Long run model:1-12A settable |
||||
| Floating charge Voltage |
27.3/41V |
82V |
82/109V |
218.4V/273V |
|
| Display | |||||
| Display | LED/LCD(option) | ||||
| Buzzer Alarm | Bat.Mode/Bat.Low/OverLoad/Fault | ||||
| Communication Port | RS232+USB+EPO,SNMP(option) | ||||
| Physical | |||||
| Form factor | Rack | ||||
| Rack | 438mm(w) x 88mm(2U) x 500mm(D) | ||||
| Weight(S/L) | 18.6/9.0kg | 19/10kg | 25/11kg |
6KVA:57/18kg 10kVA:67.5/20kg |
|
| Environment | |||||
| Humidity | 5～97% (Non condensing) | ||||
| Operating Ambient temperature | 0~40℃ | ||||
| *Specification is subject to change without further notice; | |||||
Note: “S” refers to “Standard model”,”L” refers to “Long-run model”
All specifications subject to change without further notice; customized specifications are acceptable
