Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Type: | ONLINE HF UPS |
|---|---|---|---|
| Control: | DSP With Advanced 3 Level Inverter | Efficency: | 95% @line Mode |
| Input: | 100-300Vac,40-70Hz | Communication: | RS232+USB |
| Optional: | SNMP Card, AS400, MB Breaker | Warranty: | 18months After Shipment |
| PF: | 1.0 | Charger: | 1-12A Selectable |
| Phase: | Single Phase | DC: | 192/240Vdc |
| Output: | 220/230/240Vac | ||
| High Light: | PC MAX Series 10KVA Online UPS,Online HF 6 KVA UPS,10KVA Online UPS With 1.0PF |
||

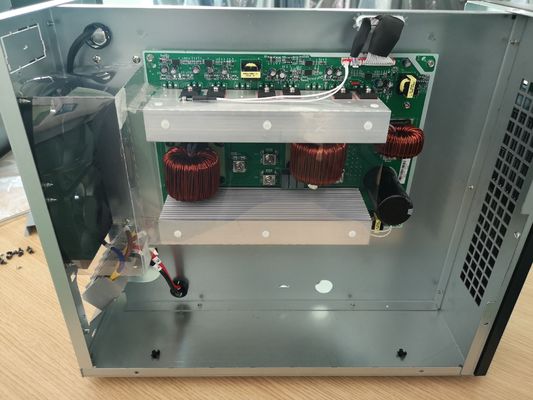

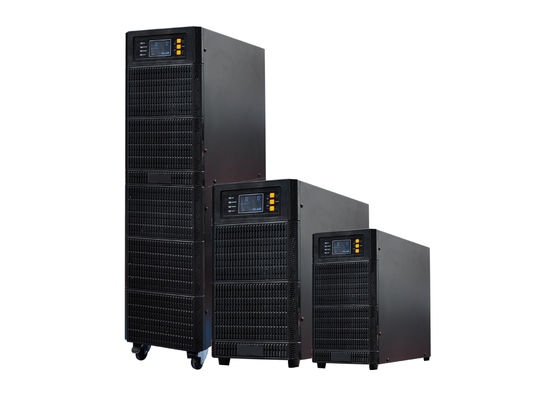

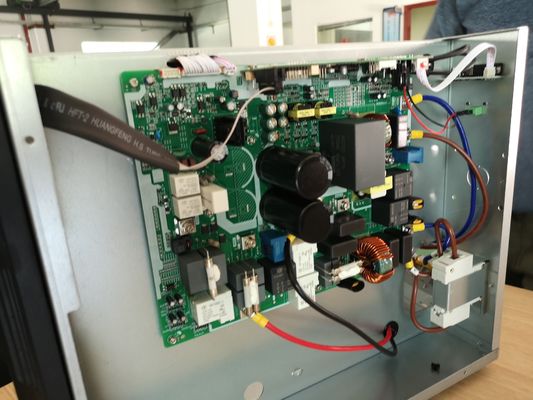

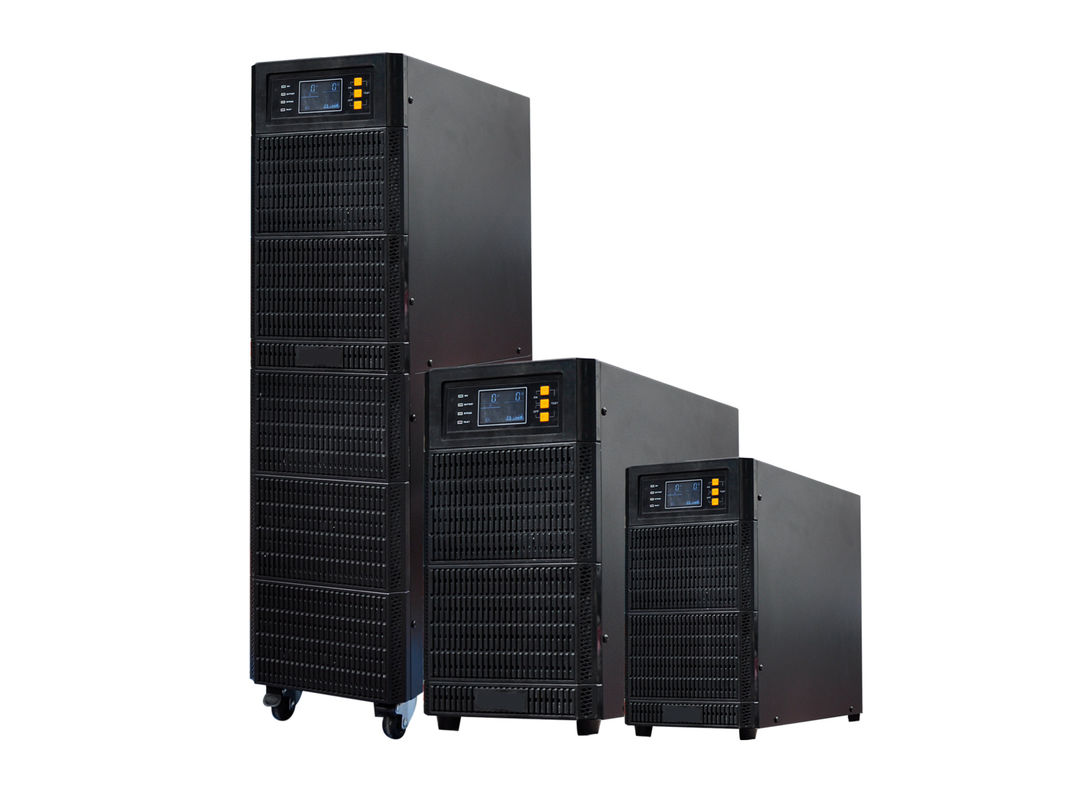

Power Castle MAX Series 6-10kVA
2. Output power factor 1.0, offering more stronger load capability
3. Most advanced 3 level inverter technology, efficiency 95% in normal mode
4. Ultra Wide Input: 120V-275Vac and , well compatible with Gen-set
5. Dual input AC source supportable
6. EPO (emergency power off)
7. Compact design to save installation space
8. Configurable output:220/230Vac,192/240Vdc with LCD screen
9. AC and cold start function

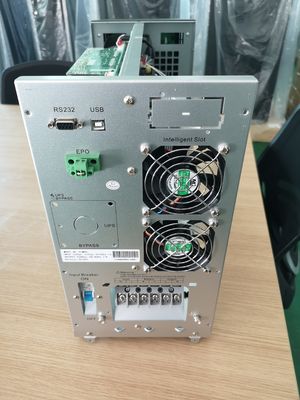

10. Standard USB&RS232 interface, SNMP card (optional)
12. Conformal coating PCB for more critical operation environment
13. Convertible frequency (input 60Hz, output 50Hz, vice versa)
14. Intelligent fan running, varying according to load and temperature, 4 levels
15. Manual bypass (optional)
16. ABM charger 1-12A, adustable
17. Multiple communication ports, SNMP card, AS400 card (optional)
Technical Specification:
| Model | PCMAX 6KL | PCMAX6KS | PCMAX10KL | PCMAX10KS |
| Phase | 1phase 2wire+PE | |||
| Capacity | 6kVA/6kW | 10kVA/10kW | ||
| Input | ||||
| Nominal Input Voltage | 220/230/240VAC | |||
| Input Voltage Range | 120V~300V Half load 176V~300V Full Load | |||
| Input Frequency Range | 50/60Hz+/-10% | |||
| Input Power Factor | 0.99 @Full load | |||
| Output | ||||
| Output Voltage | 230V(220/240/208V Selectable) | |||
| Output Voltage Regulation | 1% | |||
| Output Frequency (Sync.Mode) | 46Hz~54Hz/56Hz~64Hz | |||
| Output Frequency (Bat.Mode) | 50Hz+/-0.05Hz 60Hz+/-0.05Hz | |||
| Output THDv% | ≤2% linear Load, ≤4% Non-linear Load | |||
| Overload |
AC Mode: 10mins@105%-125%,30S 125%-150%,500ms@>150%; Battery Mode:1mins@105%-125%,10S 125%-150%,500ms@>150%; |
|||
| Output Waveform | Pure Sinewave | |||
| Transfer Time | ||||
| Line mode ↔ Bat Mode | 0ms | |||
| Inv ↔ Bypass Mode | <4ms | |||
| Efficiency | ||||
| AC-->AC | Max.95% | |||
| ECO | 98% | |||
| Battery Mode | Max.94.5% | |||
| Battery & Charger | ||||
| Battery Voltage/Capacity | 16 x 12V/7AH | 144V/192V/240 external battery | 16 x 12V/9AH | 192V/240V external battery* |
| Battery Type | Valve Regulated Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery | |||
| Recharge time | ~7Hours | Subject to external battery config | ~7 Hours | Subject to external battery config |
| Max recharge current | 1A | 1-12A adjustable | 1A | 1-12A adjustable |
| Floating charge Votlage | 218.4V | 218.4V/273V | 218.4V | 218.4V/273V |
| Display | ||||
| Display | LED/LCD(option) | |||
| Buzzer Alarm | Bat.Mode/Bat.Low/OverLoad/Fault | |||
| Communication Port | RS232/ SNMP(option)/USB(option) | |||
| Physical | ||||
| Form factor | Tower / Rack | |||
| Tower(W*H*D)MM | 200*400*800 | 200*400*360 | 200*400*800 | 200*400*360 |
| Rack | 438mm(w) x 88mm(2U) x 500mm(D) | |||
| Weight | 57.0kg | 18kg | 67kg | 20.0kg |
| Environment | ||||
| Humidity | 5～97% (Non condensing) | |||
| Operating Ambient temperature | 0~40℃ | |||
| *Specificaiton is subject to change without further notice; | ||||
All specifications subject to change without further notice; customized specifications are acceptable.Note: “S” refers to “Standard model”,”L” refers to “Long-run model”
