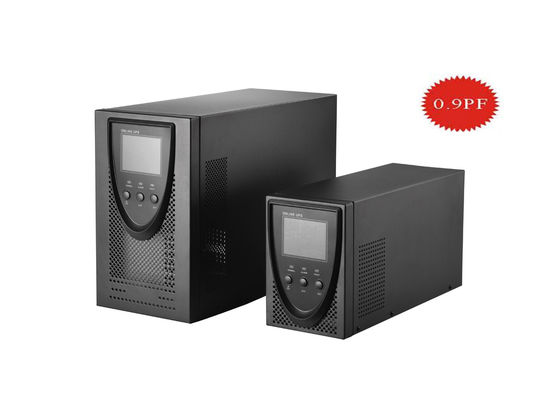

E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS
Product Details:
Place of Origin: | Shenzhen China |
Brand Name: | HRD |
Certification: | CE, ISO9001 |
Model Number: | Et01, ET02,ET03 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100 |
---|---|
Price: | Negatiable |
Packaging Details: | carton box with wooden pallet for export |
Delivery Time: | within 3-4 weeks after down payment |
Payment Terms: | TT |
Supply Ability: | 10000pcs/ month |
Warranty: | 18months after shipment with 1.5% PCB with consigment |
Detail Information |
|||
Product Name: | Online Power Supply | Output Waveform: | Pure Sine Wave |
---|---|---|---|
Economic Mode(ECO Mode): | Support | Overload: | Sounding Twice Every Second |
Interface: | Smart RS-232;USB,Dry Contact Board,SNMP(independent To RS232) | Phase: | 1:1phase ,L+N+G |
Highlight: | high frequency ups,online power supply,Online High Frequency UPS 1KVA |
Product Description
E-Tech Online High Frequency UPS 1KVA 2KVA 3KVA , Smart Eco UPS
Introduction: E-Tech series Online HF UPS 1-5K has adopted highest level DSP controlled UPS. With advanced DSP technology, it’s not only high stable but also with excellent performance.
Perfect Application:
Network, data centre, servers and workstations, control system, communication system and office etc.
Features:
- Output power factor 0.9,offering more stronger load capability;
- Online double conversion with DSP control
With excellent performance and comprehensive protections for load and UPS ;
- Self-diagnosis when UPS start up
- Wide input range, support kinds of generator
- Battery configuration flexible,1KVA-24/36V,2Kva-48/72/96V,3Kva-4872/96V etc.
- Cold start(DC power on)
- ECO function,Economic function(Optional)
8. Compact design and less noise
9. Lightening and Surge protection 1050J
10.Fan speed varies according to load automatically
11. Smart RS232 (USB, Dry contact, SNMP card optional)
12.Manual bypass(optional)
Model |
ET01 |
ET02 |
ET03 |
ET05 |
|
|||||
Capacity |
Kva/Kw |
1Kva/0.9Kw |
2Kva/1.8Kw |
3Kva/2.7Kw |
5Kva/4.0Kw |
|
||||
Input |
Voltage |
Low transfer |
L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load |
|
||||||
Low back |
L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load |
|
||||||||
High transfer |
L-N:286 VAC ± 3% |
|
||||||||
High back |
L-N:270 VAC ± 3% |
|
||||||||
Frequency range |
45-55Hz at 50Hz/55-65Hz at 60Hz(auto-detect) |
|
||||||||
phase |
1:1phase ,L+N+G |
|
||||||||
Current THDI |
<6%(100%nonlinear load) |
|
||||||||
Power Factor |
≥0.99 |
|
||||||||
Generate Input |
Support |
|
||||||||
breaker |
7A |
16A |
25A |
35A |
|
|||||
Output
|
Voltage |
208/220/230/240VAC or 110/120/127(1-3Kva) |
|
|||||||
Power Factor |
0.9 (0.8 optional) |
0.8 |
|
|||||||
Voltage regulation |
± 2% |
|
||||||||
Frequency(Line Model) |
46-54Hz at 50Hz/56-64Hz at 60Hz |
|
||||||||
Frequency(Battery Mode) |
50/60Hz ± 0.02Hz |
|
||||||||
Current Crest Ratio |
3:1 |
|
||||||||
Harmonic Distortion |
≤3% THD(Liner Load) |
|
||||||||
≤5% THD(Non-Liner Load) |
|
|||||||||
Output waveform |
Pure Sine wave |
|
||||||||
Outlet |
Sockets(Optional) |
Terminals |
|
|||||||
Overload Capacity |
105%<load<125% for 1 mins ,125%<load<150% for30sec |
|
||||||||
Efficiency |
AC Mode |
Full Load≥89% |
|
|||||||
Battery Mode |
Full Load≥86% |
|
||||||||
ECO Mode |
Full Load≥95% |
|
||||||||
Battery |
Number of Battery Per Set |
2/3 |
4/6/8 |
6/8 |
8 |
|
||||
Battery Type |
Sealed, lead-acid, maintenance-free standard model: 12V/7AH OR9AH inbuilt long run model: battery external, capacity optional
|
|
||||||||
Back Time |
Standard unit: 5-12mins; Long-run unit: depends on external battery |
Standard unit: 8-18mins; Long-run unit: depends on external battery |
Standard unit: 5-12mins; Long-run unit: depends on external battery |
Standard unit: 4-10mins; Long-run unit: depends on external battery |
|
|||||
Recharge Time(to 90%) |
5 Hours |
5 Hours |
5 Hours |
5Hours |
|
|||||
Charge Current(standard unit) |
1.0A |
1.0A |
1.0A |
1.0A |
|
|||||
Charge Current(long run unit) |
7.0A |
7.0A |
7.0A |
5.0A |
|
|||||
Rated Battery Voltage |
24/36vdc |
48/72/96vdc |
72/96vdc |
96vdc |
|
|||||
Protect |
Over-Voltage/Over-current/Low-voltage |
|
||||||||
Battery Socket |
Anderson like PowerPole Modular Connectors |
|
||||||||
Transfer Time |
Mains←→Battery |
0ms |
|
|||||||
Mains←→Bypass |
0ms |
|
||||||||
Optional Features |
Economic Mode(ECO Mode) |
Support |
|
|||||||
Indicator |
LCD Version (with LED) |
Load/Battery/Input/Output/Operating Mode Information etc. |
|
|||||||
Audible Alarm |
Battery Mode |
Sounding every 4 seconds |
|
|
|
|||||
Low Frequency |
Sounding every second |
|
||||||||
Overload |
Sounding twice every second |
|
||||||||
Fault |
Continuously Sounding |
|
||||||||
Physical |
Unit Dimension (D*W *H)mm |
420*144*215 |
475*191*340 |
475*191*340 |
475*213*340 (L) |
|
||||
510*213*427 (S) |
|
|||||||||
Packing Dimension (D*W *H)mm |
524*258*334 |
603*332*482 |
603*332*482 |
603*332*482(L) |
|
|||||
650*363*572(S) |
|
|||||||||
Standard Unit Net /GrossWeight(kg) |
12/13 |
30/32 |
30/32 |
40/42 |
|
|||||
Long-run unit Net /GrossWeight(kg) |
7/8 |
15/17 |
15/17 |
18/20 |
|
|||||
Operating Environment |
0-40°C |
|
||||||||
Relative Humidity |
0-90%(non-condensing) |
|
||||||||
Altitude |
<1500m.when>1500m,derating |
|
||||||||
Noise Level |
<55db at 1 Meter |
|
||||||||
Interface |
Smart RS-232;USB,Dry contact board,SNMP(independent to RS232) |
|
||||||||
*.
