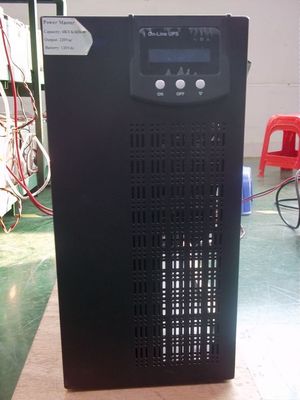

PM RS232 Online High Frequency UPS 5kva Double Conversion Cold Start
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/OEM |
| Certification: | CE,ISO9001 |
| Model Number: | P5000-6000 |
| warranty: | 18months |
|---|
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | 350-460usd/pcs |
| Packaging Details: | 1PCS/1CTN, with wooden pallet |
| Delivery Time: | 15-20days after down payment |
| Payment Terms: | TT OR LC |
| Supply Ability: | 2000pcs/month |
| Port of Loading: | Shenzhen Sea Port |
| Price Term: | Fob shenzhen |
| warranty: | 18months , 10 years spare parts support |
|
Detail Information |
|||
| Highlight: | high frequency ups,online uninterruptible power supply,RS232 Online High Frequency UPS |
||
|---|---|---|---|
Product Description
PM RS232 Online High Frequency UPS 5kva Double Conversion Cold Start
Quick Detail:
1) Smart RS232(SNMP card optional)
2) Type:Free Maintenance Lead-Acid battery
3) Features: DSP technology, load power factor 0.9,Genset compatible
Introduction:Power Master Series Online HF UPS1-6kva, is of fully of advanced DSP Online HF UPS. It has
high
adaptability, performance, compact design and less batteries to reduce your space and installation cost.
Perfect Application:
Network, data centre, servers and workstations, control system, communication system and office etc.
Main Features:
1) High Frequency and double conversion
2) Fully digitized control
3) Output power factor: 0.8
4) Wide input range
5) DC Voltage flexible
6) Environment protection
7) Smart RS232(SNMP card optional)
8) Cold start
9) Compact Design
10) Lightening and Surge protection 1050J
Technical Specification:
|
Model |
PM1000 |
PM2000 |
PM3000 |
PM5000 |
PM6000 |
|||
|
Capacity |
1KVA/0.8kW |
2KVA/1.6kW |
3KVA/2.4kW |
5KVA/4.0kW |
6KVA/4.2kW |
|||
|
Phase |
Single, 2 wire+Ground |
|||||||
|
AC Input
|
P.F |
Above 0.98 |
||||||
|
THDi |
< 5% |
|||||||
|
voltage range |
110-285Vac(50%LOAD), 160-285Vac(FULL LOAD) Or 80-150Vac(1-3KVA) |
|||||||
|
frequency range |
40-70HZ |
|||||||
|
By-pass |
110VAC—285VAC Or 80-150Vac(1-3KVA) |
|||||||
|
Frequency following |
50/60Hz+/-5% |
|||||||
|
Battery |
DC voltage |
24/36Vdc |
48/72/96Vdc |
72/96Vdc |
120Vdc |
|||
|
Quantity |
2/3pcs*12V |
4/6pcs*12V |
6pcs*12V |
10pcs*12V(9Ah or12Ah) or2*10pcs 7ah/9ah |
||||
|
Recharge voltage |
27/41VDC |
55/82/110VDC |
82/110VDC |
137Vdc |
||||
|
Type |
Free Maintenance Lead-Acid battery |
|||||||
|
Recharging current |
8A/0.5A |
6A/1A |
||||||
|
Output
|
P.F |
0.8 |
0.7/0.8 |
|||||
|
Voltage |
220/230/240 Vac +/-1% Or110/120/127Vac+/-1%(1-3Kva) |
|||||||
|
Frequency |
50/60HZ(AUTO SENSE) |
|||||||
|
crest factor |
3:1 |
|||||||
|
Wave distortion |
Linear load <3%, Nonlinear load <5% |
|||||||
|
Over load ability |
30s when overload is 108%~150% |
|||||||
|
Transfer time |
0ms |
|||||||
|
AC abnormal |
Alarm every 4 seconds |
|||||||
|
Battery low voltage |
Keep alarm every 1 second |
|||||||
|
Overload |
Keep alarm every 0.5 second |
|||||||
|
Display |
High Definition LED and LCD, clear & friendly display interface |
|||||||
|
Efficiency |
Above 87% |
|||||||
|
Protections |
Output: Short circuit, Overload, low voltage, Input: Instant high voltage protection Others:over-temperature protection, Battery low, charger PCB, |
|||||||
|
Communication |
RS232(Standard), RS485 and SNMP card(optional) |
|||||||
|
Working Temp. |
0~40℃ |
|||||||
|
Relative humidity |
0~90%( No coagulation) |
|||||||
|
Cooling |
Intelligent speed-control Fan |
|||||||
|
Input & output |
Socket(Optional) |
Terminals |
||||||
|
Surge protection |
IEC60664—1 Graded protection |
|||||||
|
Gross Weight(KGS) |
8.0(L) |
18(L) |
18(L) |
20(L) |
20(L) |
|||
|
12/14(S) |
27/31(S) |
31/35(S) |
45(S) |
45(S) |
||||
|
Unit Dimension(mm) |
420*144*215 |
475*191*340 |
475*213*340 (L) |
|||||
|
510*213*427 (S) |
||||||||
|
Packing Dimension(D*W*H)MM |
524*258*334 |
603*332*482 |
603*332*482(L) |
|||||
|
650*363*572(S) |
||||||||
|
Quantity/20ft |
550pcs |
260pcs |
200pcs/150pcs |
|||||
Note:”L” means long time model &“S” means standard model with inbuilt battery.
