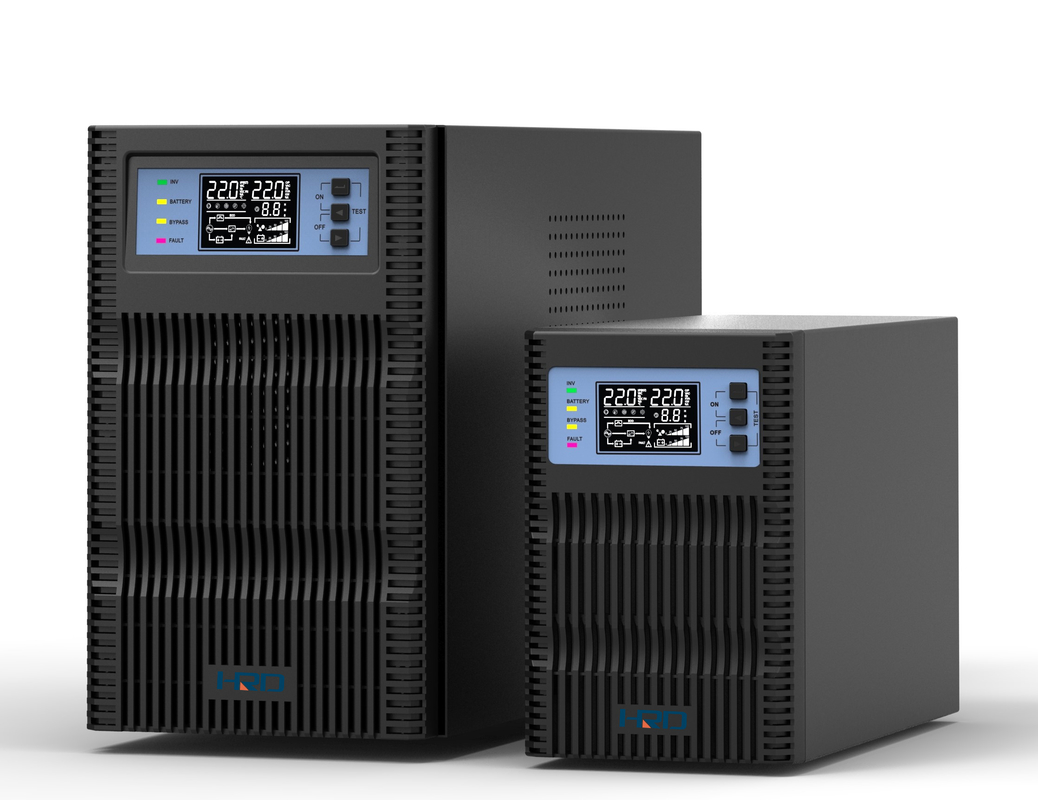

Single Phase 120Vac Online Ups Smart With 1 Kva / 2 Kva / 3 Kva
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | OEM/HRD |
| Certification: | CE,ISO9001:2008 |
| Model Number: | PCMA1K,PCMA2K,PCMA3K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | 150-400usd/pcs; |
| Packaging Details: | 1pcs/ctn |
| Delivery Time: | 4 weeks after down payment |
| Payment Terms: | TT30% advance, balane before shipment |
| Supply Ability: | 20000pcs/month |
| Warranty: | 18months after shipment with 10years technical support |
|
Detail Information |
|||
| Highlight: | double conversion online ups,3 phase online ups,3 kva industrial 120vac online ups |
||
|---|---|---|---|
Product Description
single phase 120Vac Online Ups Smart With 1 kva / 2 kva / 3 kva
Introduction:
SINGLE Phase Industrial 120Vac Online Ups With 1 kva / 2 kva / 3 kva
E-Tech(America)series Online HF UPS 1-3K has adopted highest level DSP controlled UPS. With advanced DSP technology, it’s not only high stable but also with excellent performance.
Perfect Application:
Network, data centre, servers and workstations, control system, communication system and office etc.
Features:
Introduction: HQAII series Online HF UPS 1-3K is
adopted highest level DSP controlled UPS.
With advanced DSP technology, it’s not only high stable
but also with excellent performance.
Perfect Application:
Network, data center, servers and workstations, control system,
communication system and office etc.
Features:
Output power factor 1.0, offering more stronger load capability
Online double conversion HF UPS technology with DSP control , excellent performance and comprehensive protections for load and UPS
Wide input range frequency, compatible with almost all kinds of generators
System efficiency above 94%,thanks to the most advanced design bring higher efficiency to save using cost
Battery configuration flexible, 1kVA-24/36v,2kVA-48/72v,3kVA-72/96v etc
EPO function, emergency power off(optional)
Self-diagnosis when UPS start up
Cold start (DC power on)
Compact design and less noise
Lightening and Surge protection 1050J
Fan speed Varies according to load automatically
Standard USB interface,( dry contact,SNMP card optional )
| Model | PCMA1KL | PCMA1KS | PCMA2KL | PCMA2KS | PCMA3KL | PCMA3KS | |||||
| Capacity | kVA/kW | 1kVA/1kW | 2kVA/2kW | 3kVA/3kW | |||||||
|
Input |
Voltage |
Low transfer | 85Vac ± 3% | ||||||||
| Low back | 95Vac ± 3% | ||||||||||
| High transfer | 150Vac ± 3% | ||||||||||
| High back | 140Vac ± 3% | ||||||||||
| Frequency range | 50/60Hz+/-10% | ||||||||||
| Frequency SYN | 46-54Hz at 50Hz/56-64Hz at 60Hz | ||||||||||
| phase | 1:1phase ,L+N+G | ||||||||||
| Current THDI | <5%(100%nonlinear load) | ||||||||||
| Power Factor | ≥0.99 | ||||||||||
| Generate Input | Support | ||||||||||
| breaker | 10A | 16A | 20A | ||||||||
|
Output
|
Voltage | 208/220/230/240VAC or 110/120/127(1-3KVA) | |||||||||
| Power Factor | 0.8/0.9 | ||||||||||
| Voltage regulation | ± 2% | ||||||||||
| Frequency(Line Model) | 46-54Hz at 50Hz/56-64Hz at 60Hz | ||||||||||
| Frequency(Battery Mode) | 50/60Hz ± 0.02Hz | ||||||||||
| Current Crest Ratio | 3:1 | ||||||||||
| Harmonic Distortion | ≤3% THD(Liner Load) | ||||||||||
| ≤5% THD(Non-Liner Load) | |||||||||||
| Output waveform | Pure Sine wave | ||||||||||
| Outlet | Sockets(Optional) | Terminals | |||||||||
| Overload Capacity | 105%<load<150% for 46sec ,150%<load<200% for30sec | ||||||||||
| System Efficiency | Full Load≥92% | ||||||||||
|
Battery |
Number of Battery Per Set | 2/3 | 4/6 | 6/8 | |||||||
| Battery Type |
Sealed, lead-acid, maintenance-free standard model: 12V/7AH OR9AH inbuilt long run model: battery external, capacity optional |
||||||||||
| Back Time |
Standard unit: 4-7mins; Long-run unit: depends on external battery |
Standard unit: 4-7mins; Long-run unit: depends on external battery |
Standard unit: 4-7mins; Long-run unit: depends on external battery |
||||||||
| Recharge Time(to 90%) | 5 Hours | 5 Hours | 5 Hours | ||||||||
|
Charger Current (standard unit) |
1.0A | 1.0A | 1.0A | ||||||||
|
Charge Current (long run unit) |
6.0A | 6.0A | 6.0A | ||||||||
| Rated Battery Voltage | 24/36vdc | 48/72/vdc | 72/96vdc | ||||||||
| Protect | Over-Voltage/Over-current/Low-voltage | ||||||||||
| Battery Socket | Anderson like PowerPole Modular Connectors | ||||||||||
| Transfer Time | Mains←→Battery | 0ms | |||||||||
| Mains←→Bypass | 0ms | ||||||||||
| Optional Features | Economic Mode(ECO Mode) | Support | |||||||||
| Indicator | LCD Version (with LED) | Load/Battery/Input/Output/Operating Mode Information etc. | |||||||||
|
Audible Alarm |
Battery Mode | Sounding every 4 seconds | |||||||||
| Low Frequency | Sounding every second | ||||||||||
| Overload | Sounding twice every second | ||||||||||
| Fault | Continuously Sounding | ||||||||||
| Physical |
Unit Dimension (D*W *H)mm |
1K | 2K-3K Standard unit | 2K-3K Long-run unit | |||||||
| 144*345*229 | 190*393*328 | ||||||||||
|
Packing Dimension (D*W *H)mm |
236*424*333 | 325*487*456 | 292*485*436 | ||||||||
|
Standard Unit N/G W(kg) |
9.2/9.7 | 17.2/18.7 | 22.6/24.1 | ||||||||
|
Long-run unit N/G W(kg) |
4.2/5.0 | 7.9/9.4 | 8.3/9.8 | ||||||||
| Operating Environment | 0-30°C | ||||||||||
| Relative Humidity | 0-90%(non-condensing) | ||||||||||
| Altitude | <1500m.when>1500m,derating | ||||||||||
| Noise Level | <55dB at 1 Meter | ||||||||||
| Interface | Standard USB interface,( dry contact,SNMP card optional ) | ||||||||||
|
|
|||||||||
