| High Light: | double conversion online ups,3 phase online ups,Output PF0.9 online ups |
||
|---|---|---|---|

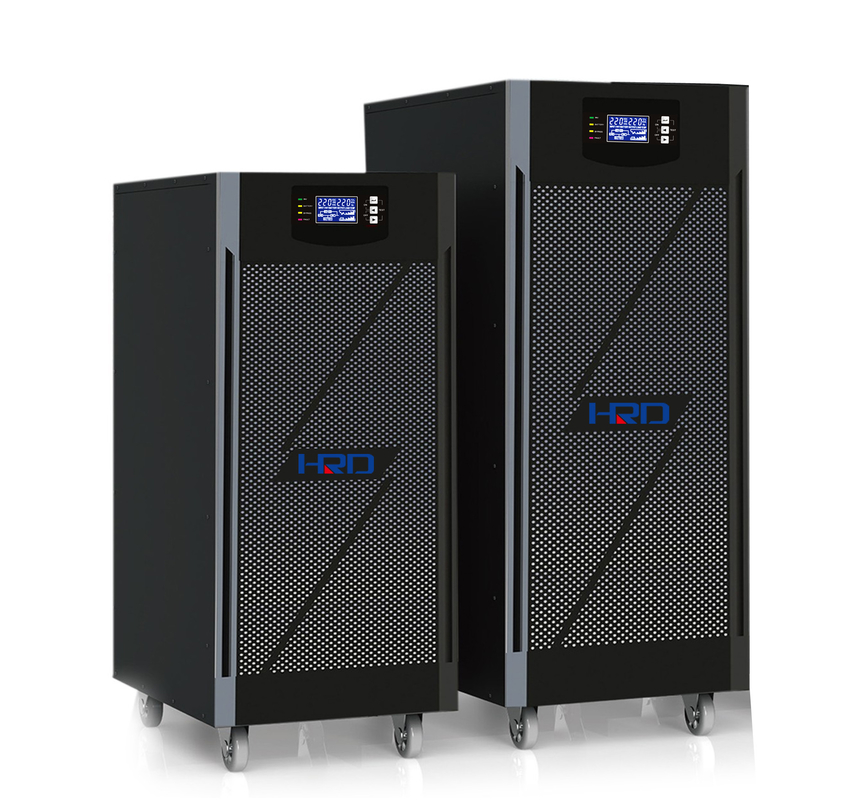

120Vac Online Ups PC Plus - TX Series 6kva / 12kva , Output PF0.9
1. DSP control ,with excellent performance and comprehensive protections for load and UPS
2. Output power factor 0.9,offering more stronger load capability;

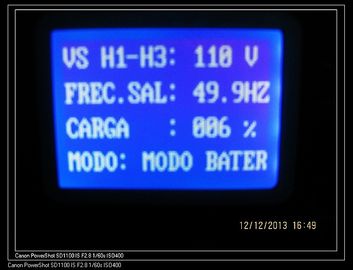

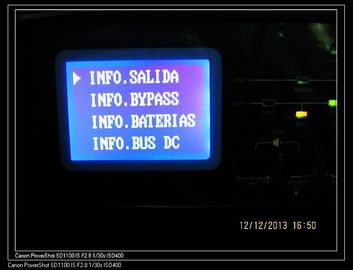

3. Large LCD ,multi language display(English, Spanish, Portuguese…),plenty of information
4.Wide input range ,support kinds of generator;
5.Dual input AC source supportable
5. EPO(emergency power off);

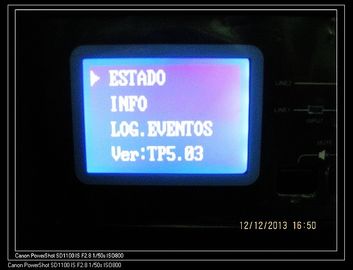

6.Event log up to 100 events, recording UPS running time and critical memories ;
7.Configuable output:120/ 208/240Vac
8.N+X parallel redundancy, up to 6units
9.AC and cold start function;
10. Standard USB&rs232 interface, SNMP card optional
11. Conformal coating PCB for more critical operation environment
12. Frequency convertor mode(input 60Hz, output 50Hz,vice versa)
13.Intelligent fan running, varying according to load and temperature, 4 levels;
14. Multiple communication ports (optional)
15. Intelligent 10A DSP charger (optional)
PC plus TX Split phase Online UPS 6-12KVA
1.DSP control ,with excellent performance and comprehensive protections for load and UPS ; 2. Output power factor 0.9,offering more stronger load capability;
3. Large LCD ,multi language display(English, Spanish, Portuguese…),plenty of information
4.Wide input range ,support kinds of generator;
5.Dual input AC source supportable
6. EPO(emergency power off);
7.Event log up to 100 events, recording UPS running time and critical memories ;
8.Configuable output:120/ 208/240Vac
9.N+X parallel redundancy, up to 6units
10.AC and cold start function;
11. Standard USB&RS232 interface, SNMP card optional
12. Conformal coating PCB for more critical operation environment
13 Frequency convertor mode(input 60Hz, output 50Hz,vice versa)
14.Intelligent fan running, varying according to load and temperature, 4 levels;
15. Multiple communication ports (optional)
16. Intelligent 10A DSP charger (optional)
Technical Specification
| Model | PCP6K -TX | PCP6KS -TX | PCP8K -TX | PCP8KS -TX | ||||||
| Capacity(Kva/kW) | 6KVA/5.4kW | 8KVA/7.2kW | ||||||||
| Input PF | ≥0.99 | |||||||||
|
Input voltage |
Phase | 2Lines | ||||||||
|
Low transfer |
L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load | |||||||||
| Low back | L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load | |||||||||
| High transfer | L-L 286 VAC ± 3% | |||||||||
| High back | L-L:270 VAC ± 3% | |||||||||
| Input frequency | 40-70hz | |||||||||
| Battery | ||||||||||
| quantity | external battery | 20PCS*12V*7Ah | external battery | 20PCS*12V*7Ah | ||||||
| Back up time | depend on external Battery | 6mins @ full load | depend on external Battery | 4mins @ full load | ||||||
| DC voltage | 240Vdc | |||||||||
| Charge voltage | 275Vdc | |||||||||
| Recharging current | 4A(10A optional) | 1A | 4A(10A optional) | 1A | ||||||
| Output | ||||||||||
| Output P.F | 0.9 | |||||||||
| Output voltage | 120/208/240Vac +/-1%(static) | |||||||||
| Frequency | 46~54Hz or 56~64Hz (Line mode) 50/60Hz ± 0.1Hz ( Battery mode) |
|||||||||
| Crest factor | 3:1(max) | |||||||||
| Wave distortion | Less than 2%(linear load), Less than 4% Non-linear load | |||||||||
| Over load | 105%<load<125% for 1 mins ,125%<load<150% for30sec | |||||||||
| Efficiency | >88%(Line mode) | |||||||||
| >87%(AC mode) | ||||||||||
| >95%(ECO mode) | ||||||||||
| Transfer time | 0ms (AC-Battery); | |||||||||
| 0 ms(bypass-inverter) | ||||||||||
| Indicator | ||||||||||

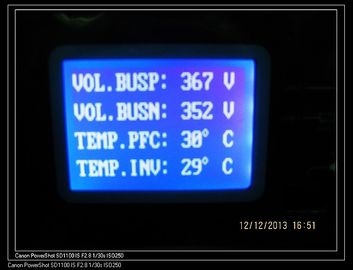

| LCD Panel | UPS status, Load level, Load watt,Load VA,Battery level, Input/Output voltage, output current,Bus voltage, Temp, and warning and fault code and events | |||||||||
| Alarm | ||||||||||
| Battery Mode | Sounding every 4 seconds( can mute) | |||||||||
| Low Battery | Sounding every second | |||||||||
| Overload | Sounding every second | |||||||||
| Fault | Continuously sounding | |||||||||
| Management | ||||||||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | |||||||||
| Optional | SNMP/AS400/USB | |||||||||
| Environment | ||||||||||
| Operation Humidity | 0-90 % RH (non-condensing) @ 0- 40°C | |||||||||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 60dBA @ 1 Meter | ||||||||
| Physical | ||||||||||
| Net Weight (KG) | 70 | 110 | 130 | 180 | ||||||
| Gross Weight(KG) | 95 | 135 | 155 | 205 | ||||||
|
UnitDimension (D*W*H)mm |
600*300*742 | 600*300*892 | 600*300*742 | 600*300*892 | ||||||
| Packing (D*W*H)mm | 720*420*920 | 720*420*1070 | 720*420*920 | 720*420*1070 | ||||||
| Model | PCP10K -TX | PCP10KS -TX | PCP12K -TX | PCP12KS -TX | ||||||
| Capacity(Kva/kW) | 10KVA/9kW | 12KVA/10.8kW | ||||||||
| Input PF | ≥0.99 | |||||||||
|
Input voltage |
Phase | 2Lines | ||||||||
|
Low transfer |
L-L:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load | |||||||||
| Low back | L-L188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load | |||||||||
| High transfer | L-L 286 VAC ± 3% | |||||||||
| High back | L-L:270 VAC ± 3% | |||||||||
| Input frequency | 40-70hz | |||||||||
| Battery | ||||||||||
| quantity | external battery | 20PCS*12V*9Ah | external battery | 20PCS*12V*9Ah | ||||||
| Back up time | depend on external Battery | 6mins @ full load | depend on external Battery | 4mins @ full load | ||||||
| DC voltage | 240Vdc | |||||||||
| Charge voltage | 275Vdc | |||||||||
| Recharging current | 4A(10A optional) | 1A | 4A(10A optional) | 1A | ||||||
| Output | ||||||||||
| Output P.F | 0.9 | |||||||||
| Output voltage | 120/208/240Vac +/-1%(static) | |||||||||
| Frequency | 46~54Hz or 56~64Hz (Line mode) 50/60Hz ± 0.1Hz ( Battery mode) |
|||||||||
| Crest factor | 3:1(max) | |||||||||
| Wave distortion | Less than 2%(linear load), Less than 4% Non-linear load | |||||||||
| Over load | 105%<load<125% for 1 mins ,125%<load<150% for30sec | |||||||||
| Efficiency | >88%(Line mode) | |||||||||
| >87%(AC mode) | ||||||||||
| >95%(ECO mode) | ||||||||||
| Transfer time | 0ms (AC-Battery); | |||||||||
| 0 ms(bypass-inverter) | ||||||||||
| Indicator | ||||||||||
| LCD Panel | UPS status, Load level, Load watt,Load VA,Battery level, Input/Output voltage, output current,Bus voltage, Temp, and warning and fault code and events | |||||||||
| Alarm | ||||||||||
| Battery Mode | Sounding every 4 seconds( can mute) | |||||||||
| Low Battery | Sounding every second | |||||||||
| Overload | Sounding every second | |||||||||
| Fault | Continuously sounding | |||||||||
| Management | ||||||||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | |||||||||
| Optional | SNMP/AS400/USB | |||||||||
| Environment | ||||||||||
| Operation Humidity | 0-90 % RH (non-condensing) @ 0- 40°C | |||||||||
| Noise Level | Less than 55dBA @ 1 Meter | Less than 60dBA @ 1 Meter | ||||||||
| Physical | ||||||||||
| Net Weight (KG) | 130 | 180 | 140 | 190 | ||||||
| Gross Weight(KG) | 155 | 205 | 165 | 215 | ||||||
|
UnitDimension (D*W*H)mm |
600*300*742 | 600*300*892 | 600*300*742 | 600*300*892 | ||||||
| Packing (D*W*H)mm | 720*420*920 | 720*420*1070 | 720*420*920 | 720*420*1070 | ||||||
Note:All specifications subject to change without further notice; customized specifications are acceptable
