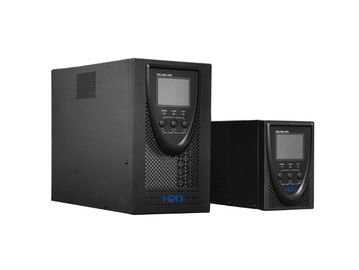

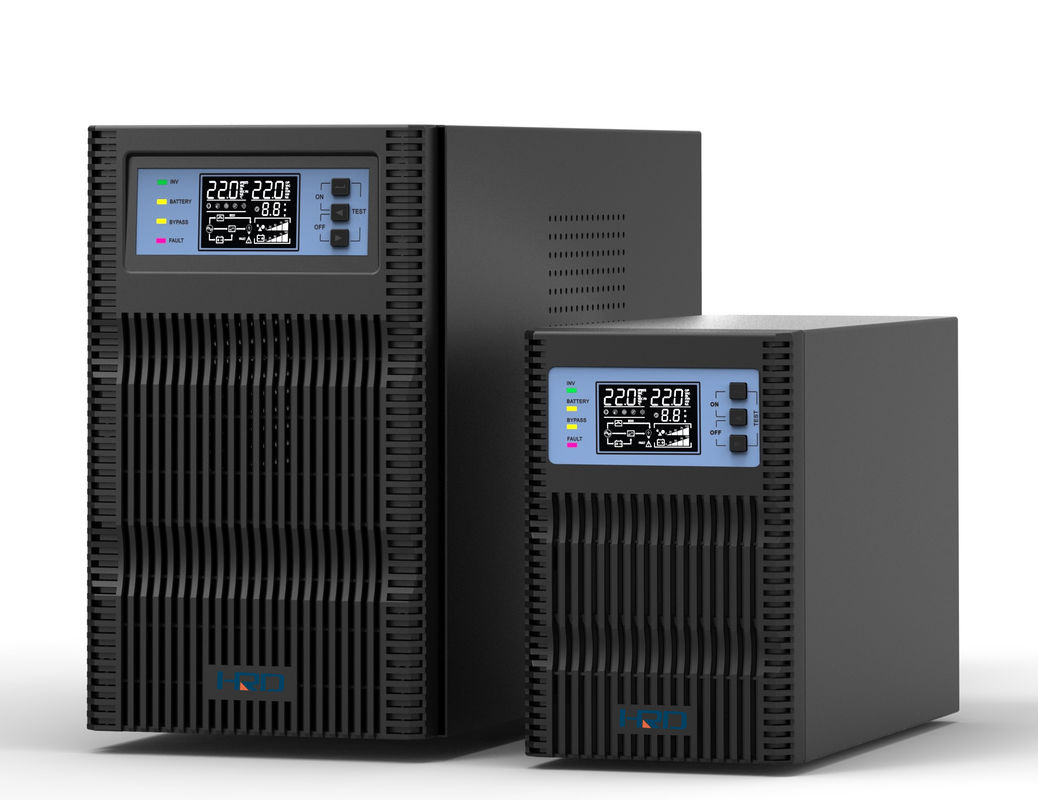

PC max HF 120vac Online UPS High Frequency 1kva / 3kva Smart

PC max HF 120vac Online UPS High Frequency 1kva / 3kva Smart

Product Details:

Place of Origin: Shenzhen China
Brand Name: OEM/HRD
Certification: CE,ISO9001:2008
Model Number: ETA01,ETA02,ETA03

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: 150-400usd/pcs;
Packaging Details: 1pcs/ctn
Delivery Time: 4 weeks after down payment
Payment Terms: TT30% advance, balane before shipment
Supply Ability: 20000pcs/month
Warranty: 18months after shipment with 10years technical support
Get Best Price Contact Now

Detail Information

High Light:

3 phase online ups


smart online ups


high frequency 120vac online ups

Product Description

  1. DSP control, with excellent performance and comprehensive protections

2. Output power factor 1.0, offering more stronger load capability

3. Advanced 3 level inverter technology, 95% efficiency,saving electricity cost

4.Ultra Wide Input: 55-150Vac , well compatible with Gen-set

5. PCB with conformal coating for critical environment

6. EPO PC max HF 120vac Online UPS High Frequency 1kva / 3kva Smart 0(emergency power off) and ECO function

7. Compact design to save installation space

8. Configurable output:220/230Vac with LCD screen

9. AC and cold start function

10.Default RS232& USB and EPO interface , SNMP card (optional)

11. IBM charger 1-12A settable,extending battery lifespan and satisfying fast charging requirement

12. Standard model with external battery interface for extending back up time

13. Battery test and EOD voltage settable on LCD

14. Simple design for fast and easy maintenance

15. Intelligent fan running, varying according to load and temperature

16. Default battery breaker for safety and convenience




Technical Specification:

Phase 1Phase 2Wire+PE
Capacity 1kVA/1kW 2kVA/2kW 3kVA/3kW
Nominal Input Voltage 110/120/127Vac
Input Voltage Range 55-150Vac(55-85V@50% load)
Input Frequency Range 50/60Hz+/-10%
Input Power Factor 0.99 @Full load
Input THDi ≤4%(linear load),≤6%(non-linear load,PF=0.7);
Output Voltage 110/120/127Vac select-able
Output Voltage Regulation 1%
Output Frequency (Sync.Mode) 46Hz~54Hz/56Hz~64Hz
Output Frequency (Bat.Mode) 50Hz+/-0.05Hz 60Hz+/-0.05Hz
Output THDv% ≤2% linear Load, ≤4% Non-linear Load,PF=0.7

AC mode: Battery Mode

10min@102%-110% Load 1min@102%-110% Load
1min@110%-130% Load 10S@110%-130% Load
10S@130%-150% Load 3S@130%-150% Load
200ms@>150% Load 200ms@>150% Load

Output Waveform Pure Sinewave
Transfer Time
Line mode ↔ Bat Mode 0ms
Inv ↔ Bypass Mode <4ms
AC-->AC Max.95%
ECO 98%
Battery Mode Max.93.5%
Battery & Charger
Battery Voltage/Capacity

Standard model:2 x 12V/9AHA

Long run model:36V external battery

Standard model:6 x 12V/7AH

Long run model:72V external battery

Standard model:6 x 12V/9AH

Long run model:96V external battery

Battery Type Valve Regulated Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery
Recharge time

Standard model:7hours to above 90%

Long run model:Subject to external battery configuration

Max recharge current

Standard model:1A

Long run model:1-12A settable

Floating charge Voltage 27.3/41V 54.6/82V 82/109V
Display LED/LCD(option)
Buzzer Alarm Bat.Mode/Bat.Low/OverLoad/Fault
Communication Port RS232+USB+EPO,SNMP(option)
Form factor Tower / Rack
Tower(W*H*D)MM 145*225*285 145*225*395

Standard model:192*352*450

Long run model:200*450*352

Rack 438mm(w) x 88mm(2U) x 500mm(D)
Weight 18.6/9.0kg 19/10kg 25/11kg
Humidity 5~97% (Non condensing)
Operating Ambient temperature 0~40
*Specification is subject to change without further notice;

Note: “S” refers to “Standard model”,”L” refers to “Long-run model”

All specifications subject to change without further notice; customized specifications are acceptable
