Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance

Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance
Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance

Large Image :  Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance Get Best Price

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD/OEM
Certification: CE,ISO9001:2000
Model Number: PC06-PC320
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 400-1600
Packaging Details: 1PCS/1CTN,STANDARD FOR EXPORT
Delivery Time: 15-20DAYS after down payment
Payment Terms: TT or LC at sight
Supply Ability: 100PCS/DAY
Price term: FOBSHENZHEN
Warranty: 18months after shipment,10years spares support
Detailed Product Description
High Light:

online power supply

,

online uninterruptible power supply

,

Online HF UPS 6KVA



POWER Castle Series Online UPS 6-10KVA/ 3.1 10-20KVA



Introduction:

Power Castle 6K-10/3.1 10-20Kva, single phase, 3/1phase, is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.



 Main Features:

1) Unqique design 5KVA/6KVA with 120vdc, 10 batteries avaiable;safe , easy and economic;

2) Full digital control with high level quality and stability ;
3Sophisticated design with comprehensive protection;
4) Adopted advanced 3 electrical  lever inverter;
5) Special hardware and hardware protection for Online UPS;
6) 192vdc or 240vdc easy convertable
via2  small jumpers, one in control board and one in charger board;
7) Large LCD display with abdundant information
It can monitor the UPS status in details(input /ouput frequency, voltage, bus voltage, PFC/INVERTER termperature,load VA,wattt, charge On or Off,load %, battery capacity ,model, logo, waring code, fault code, event log. etc...
8) Wide input frequency 40-70hz,more compatitable with generator
9) Intelligent  automaticial 4 level fan speed control , more friendly and energy saveing;
10) Event Log, up to100events. Histrical events, very useful for mainantence.
11) EPO function: Emergency Power off function for ugent use
12) Intelligent Parallel (6units), atuo sensing system capacity expanding or redundant;



 Technical Specification:

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Capacity(kva/kw)

6kva/5.4kw

8kva/7.2kw

10kva/9kw

12kva/10.8kw

10kva/ 9kw

15kva/13.5kw

20kva/18kw

Input

Phase

1/1phase, 1wire+N+G

3/1phase, 3wires+N+G

Input PF

≥0.999

≥0.96

Input

voltage

Low

transfer

L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load

Low back

L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load

High transfer

L-N:286 VAC ± 3%

High back

L-N:270 VAC ± 3%

Input frequency

40-70hz

Battery

Rating/type

12V/7Ah

12V/7Ah

12V/9Ah

12V/9Ah

depend on external battery capacity

quantity

20

20

20

20

Back up

time

Standard model

3-10mins depends on load

Long-run model

depend on external battery capacity

DC voltage

192/240Vdc

Charge voltage

220/275Vdc

Recharging current

Standard model

1A

4A/10A(option)

Long-run model

4A

Output

Output  P.F

0.9

Output voltage

220/230/240Vac +/-1%(static)

Frequency

46~54Hz or 56~64Hz (Line mode)
50/60Hz ± 0.1Hz ( Battery mode)

Crest factor

3:1(max)

Wave distortion

Less than 2% (linear load), Less than 4% Non-linear load

Over load

105% < load < 125% for 1min, 125% < load < 150% for 30s

Efficiency

92%(Line mode)

98%(ECO mode)

Transfer time

0ms (AC-Battery);

0 ms(bypass-inverter)

Indicator

LCD Panel

UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current,

Bus voltage, Temp, and warning and fault code and events

Alarm

Battery Mode

Sounding every 4 seconds( can mute)

Low Battery

Sounding every second

Overload

Sounding every second

Fault

Continuously sounding

Management

Smart RS-232/USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC

Optional

SNMP/AS400/USB

Environment

Operation Humidity

0-90 % RH (non-condensing) @ 0- 40°C

Noise Level

Less than 55dBA @ 1 Meter

Less than 58dBA @ 1 Meter

Physical

Model

PCP06S

PCP06L

PCP08S

PCP08L

PCP10S

PCP10L

PCP12S

PCP12L

PCP3110S

PCP3110L

PCP3115L

PCP3120L

Net Weight (KG)

Standard model

62

63

79

80

86

N/A

Long-run model

20

21

29

30

36

49

Gross Weight

(KG)

Standard model

69

70

86

87

93

N/A

Long-run model

22

22

37

38

43

56.5

Unit Dimension

(D*W*H)mm

582×260×572 (including wheel height 642)

600×300×660

(including wheel height 740)

Packing (D*W*H)mm

680*360*810 (0.2CBM)

720*420*920 (0.28CBM)

Note: “S”   refers to “Standard model”,”L” refers to “Long-run model”

All specifi  cations subject to change without further notice; customized specifications are acceptable

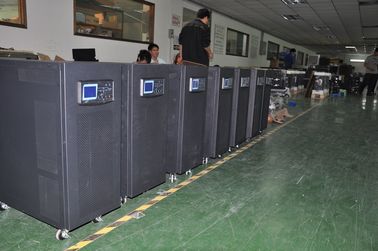

Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance 0

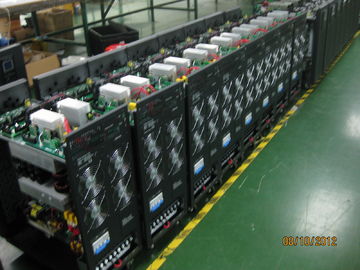

Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance 1

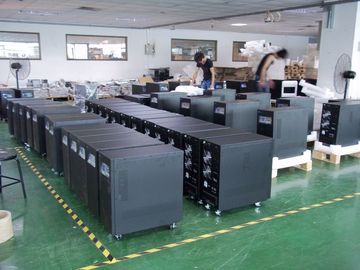

Power Castle Series Online HF 6-20KVA , High Stability, Excellent Performance 2
