RT series 1-3kva 220/230vac or 120/127vac
Product Details:
Place of Origin: | Shenzhen China |
Brand Name: | HRD/OEM/ODM |
Certification: | CE, ISO9001:2008 |
Model Number: | RT01, RT02,RT03 |
Payment & Shipping Terms:
Minimum Order Quantity: | 50PCS |
---|---|
Price: | 125USD/PCS; |
Packaging Details: | 1PCS/CTN |
Delivery Time: | 3 weeks |
Payment Terms: | TT |
Supply Ability: | 10000pcs/mont |
Warranty: | 1.5 years after shipment |
Detail Information |
|||
Highlight: | uninterruptible power system,rack ups systems,DSP control online hf ups |
---|
Product Description

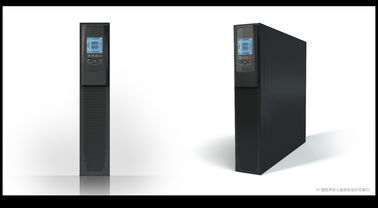

RT Series Online HF UPS 1-3KVA
1:1 Phase Output PF: 0.9
Application:PC, workstation, network center, SOHO, server, industry equipment, medical equipment or other critical system.
Features:

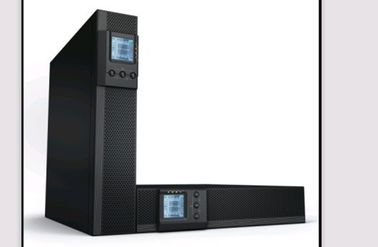

Rack-Tower convertible
Two directions LCD display,gravity sensor
Online-Double conversion (PFC)
Full digital control (DSP)
Output power factor: 0.9
Economic Operation Mode (ECO)
Wide input voltage range
Self-testing when UPS startup
Cold Start (DC)
Comprehensive protection for the total unit
Multifunctional LCD screen, setting output voltage, bypass etc…
Input neutral and live wires reverse detection
Optimized battery configuration: 1K-24V,2K-48V,3K-48/72V
Diverse options of accessories, intelligent management
Intelligent slot optional: USB /SNMP /Dry contact Board
Specification :
Model |
RT01 |
RT02 |
RT03 |
||
Capacity |
Kva/Kw |
1Kva/0.9Kw |
2Kva/1.8Kw |
3Kva/2.7Kw |
|
Input |
Voltage |
Low transfer |
220/230Vac:L-N:176 Vac ± 3% @ 100% load,130 Vac ± 3% @ 50% load Or 120/127Vac: 85Vac± 3% (Ph-N) @100% load , 65Vac± 3% (Ph-N) @50% load |
||
Low back |
220/230Vac:L-N:188 Vac ± 3% @ 100% load,142 Vac ± 3% @ 50% load Or 120/127Vac: 95Vac(Ph-N) @ 100% load ; 75Vac (Ph-N) @50% load |
||||
High transfer |
220/230Vac: L-N:286 VAC ± 3% Or 120/127Vac:155V± 3% |
||||
High back |
220/230Vac:L-N:270Vac ± 3% Or 120/127Vac:142Vac± 3% |
||||
Frequency range |
45-55Hz at 50Hz/55-65Hz at 60Hz(auto-detect) |
||||
phase |
1:1phase ,L+N+G |
||||
Current THDI |
<6%(100%nonlinear load) |
||||
Power Factor |
≥0.99 |
||||
Generate Input |
Support |
||||
breaker |
7A |
16A |
25A |
||
ECO range |
200-240Vac Or 108-132Vac |
||||
Bypass voltage range |
186-252vac Or 102-138Vac |
||||
Current harmonic |
≦3%(100% non-linear load) |
||||
Output
|
Voltage |
208/220/230/240VAC or 110/120/127(1-3Kva) |
|||
Power Factor |
0.9 (0.8 optional) |
||||
Voltage regulation |
± 2% |
||||
Frequency(Line Model) |
46-54Hz at 50Hz/56-64Hz at 60Hz |
||||
Frequency(Batt Model) |
50/60Hz ± 0.02Hz |
||||
Current Crest Ratio |
3:1 |
||||
Harmonic Distortion |
≤3% THD(Liner Load) |
||||
≤5% THD(Non-Liner Load) |
|||||
Output waveform |
Pure Sine wave |
||||
Outlet |
Sockets(Optional) |
||||
Overload Capacity |
105%<load<125% for 1 mins ,125%<load<150% for30sec |
||||
Efficiency |
AC Mode |
Full Load≥89% |
|||
Battery Mode |
Full Load≥86% |
||||
ECO Mode |
Full Load≥95% |
||||
Battery |
Number of Battery |
2/3 |
4/6/8 |
4/6/8 |
|
Battery Type |
Sealed, lead-acid, maintenance-free standard model: 12V/7AH OR 9AH inbuilt long run model: battery external, capacity optional |
||||
Back Time |
Standard unit: 5-12mins; Long-run unit: depends on external battery |
Standard unit: 8-18mins; Long-run unit: depends on external battery |
Standard unit:5-12mins; Long-run unit: depends on external battery |
||
Recharge Time(to 90%) |
5 Hours |
5 Hours |
5 Hours |
||
Charge Current(standard unit) |
1.0A |
1.0A |
1.0A |
||
Charge Current(long run unit) |
7.0A |
7.0A |
7.0A |
||
Rated Battery Voltage |
24/36vdc |
48/72/96vdc |
72/96vdc |
||
Protect |
Over-Voltage/Over-current/Low-voltage |
||||
Battery Socket |
Anderson like PowerPole Modular Connectors |
||||
Transfer Time |
Mains←→Battery |
0ms |
|||
Mains←→Bypass |
0ms |
||||
Indicator |
LCD Version (with LED) |
Load/Battery/Input/Output/Operating Mode Information etc. |
|||
Audible Alarm |
Battery Mode |
Sounding every 4 seconds |
|||
Low Frequency |
Sounding every second |
||||
Overload |
Sounding twice every second |
||||
Fault |
Continuously Sounding |
||||
Physical |
Unit Dimension (D*W *H)mm |
440* 440 *87 |
440* 440 *87 |
440* 440 *87(2U) 510* 440 *132(3U) |
|
Packing Dimension (D*W *H)mm |
570*570*185 |
570*570*185 |
570*570*185(2U) 640*570*230(3U) |
||
Standard Unit Net /GrossWeight(kg) |
12/13 |
28/31 |
28/31 |
||
Long-run unit Net /GrossWeight(kg) |
10.8/13 |
1619 |
16/19 |
||
Operating Environment |
0-40°C |
||||
Relative Humidity |
0-90%(non-condensing) |
||||
Altitude |
<1500m.when>1500m,derating |
||||
Noise Level |
<55db at 1 Meter |
||||
Interface |
Smart RS-232;USB,Dry contact board,SNMP(independent to RS232) |
