RT series Online HF UPS 1-3kva with output PF0.9 ,120Vac 60Hz
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | HRD/ OEM/ ODM |
| Certification: | CE ,ISO9001 |
| Model Number: | RT01, RT02,RT03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | 180- 380USD/PCS; |
| Packaging Details: | 1PCS/ CTN |
| Delivery Time: | Within 4 weeks |
| Payment Terms: | TT or LC at sight |
| Supply Ability: | 20000pcs/month |
| Warranty: | 18months after shipment |
|
Detail Information |
|||
| Highlight: | rack ups systems,rack mounted ups,60Hz online hf ups |
||
|---|---|---|---|
Product Description

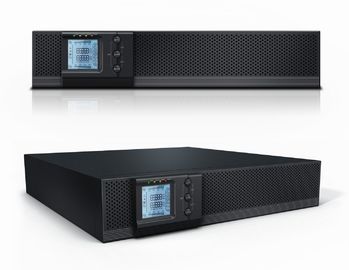

PC MAX Rackmount Series Online HF UPS 1-3KVA, 110/120/127VAC
1:1 Phase Output PF: 1.0
Application:PC, workstation, network center, SOHO, server, industry equipment, medical equipment or other critical system.
Features:

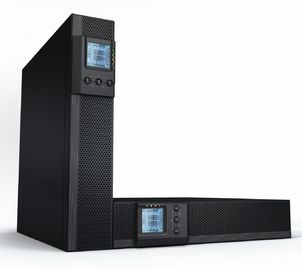

Rack-Tower convertible
Two directions LCD display,gravity sensor
Online-Double conversion (PFC)
Full digital control (DSP)
Output power factor: 0.9
Economic Operation Mode (ECO)
Wide input voltage range
Self-testing when UPS startup
Emgergency Power Off(EPO)
Cold Start (DC)
Comprehensive protection for the total unit
Multifunctional LCD screen, setting output voltage, bypass etc…
Input neutral and live wires reverse detection
Optimized battery configuration: 1K-24V,2K-48/72V,3K-48/72/96V
Diverse options of accessories, intelligent management
Standard interface : USB ;SNMP /Dry contact Board optional
Specification
Model | RT01 | RT02 | RT03 | ||
Capacity | Kva/Kw | 1Kva/0.Kw | 2Kva/2Kw | 3Kva/3Kw | |
Input |
Voltage | Low transfer | 85Vac± 3% (Ph-N) @100% load , 65Vac± 3% (Ph-N) @50% load | ||
Low back | 95Vac(Ph-N) @ 100% load ; 75Vac (Ph-N) @50% load | ||||
High transfer | 110/120/127Vac:155V± 3% | ||||
High back | 110/120/127Vac:142Vac± 3% | ||||
Frequency range | 50Hz/60Hz +/-4Hz(auto-detect) | ||||
phase | 1:1phase ,L+N+G | ||||
Current THDI | <6%(100%nonlinear load) | ||||
Power Factor | ≥0.99 | ||||
Generate Input | Support | ||||
breaker | 7A | 16A | 25A | ||
ECO range | 108-132Vac | ||||
Bypass voltage range | 102-138Vac | ||||
Current harmonic | ≦3%(100% non-linear load) | ||||
Output
| Voltage | 110/120/127(1-3Kva) | |||
Power Factor | 0.9 (0.8 optional) | ||||
Voltage regulation | ± 2% | ||||
Frequency(Line Model) | 50Hz/60Hz +/-4Hz | ||||
Frequency(Batt Model) | 50/60Hz ± 0.02Hz | ||||
Current Crest Ratio | 3:1 | ||||
Harmonic Distortion | ≤3% THD(Liner Load) | ||||
≤5% THD(Non-Liner Load) | |||||
Output waveform | Pure Sine wave | ||||
Outlet | Sockets(Optional) | ||||
Overload Capacity | 105%<load<125% for 1 mins ,125%<load<150% for30sec | ||||
Efficiency | AC Mode | Full Load≥94% | |||
Battery Mode | Full Load≥93% | ||||
ECO Mode | Full Load≥97% | ||||
Battery | Number of Battery | 2/3 | 4/6 | 6/8 | |
Battery Type | Sealed, lead-acid, maintenance-free standard model: 12V/7AH OR 9AH inbuilt long run model: battery external, capacity optional | ||||
Back Time | Standard unit: 5-12mins; Long-run unit: depends on external battery | Standard unit: 8-18mins; Long-run unit: depends on external battery | Standard unit:5-12mins; Long-run unit: depends on external battery | ||
Recharge Time(to 90%) | 5 Hours | 5 Hours | 5 Hours | ||
Charge Current(standard unit) | 1.0A | 1.0A | 1.0A | ||
Charge Current(long run unit) | 7.0A | 7.0A | 7.0A | ||
